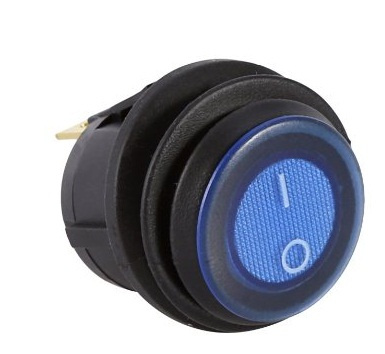

on/off Rocker Switch IP65 Waterproof LED Indicator

Name: on/off Rocker Switch IP65 Waterproof LED Indicator
Brand: all-electronics-online.com
SKU: 763231415
Availability: InStock
Rating: 4.6 (123 reviews)

Price:	US $ 0.45/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	switch-RC0-600-87
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Brand Name:	Maiyu
Max. Current:	20A
Max. Voltage:	250V
Rating Current:	12V
Rating Ampere:	20A
Protection Level:	9
Panel Cutout Dimesion:	36.8X21mm
Hxwxd:	42X24X40mm
Feature:	Waterproof Switch
Usage:	Car, Boat, Marine
Standard:	Standard
Lamp:	With Lamp
Certification:	CE
Condition:	New
Color:	Green, Blue, Red, White and Customised

Product Description

On/Off Rocker Switch IP65 Waterproof LED Indicator

Item Weight	0.5 ounces
Product Dimensions	1.3 x 1.3 x 1.7 inches
Manufacturer Part Number	PSZACCEPS004S
Bulb Type	led

Packaging & Delivery

Packaging Details:	Packing: 50pcs in a box, normal carton
Delivery Detail:	In 10 days

Product description

Size:Single

SPST Waterproof Red LED Illuminated On/Off Rocker Switch. Rated at IP65, the switch has three .250" male contact terminals, illuminates a red light when in the "on" position, can handle a maximum of 25 Amp @ 12V DC, and mounts into holes sized at 15/16" in diameter with a maximum of 1/8" in panel thickness.

Interchangeable/Compatible with:
All automobiles and devices equipped with a 12 Volt DC power source.

Features:

High quality construction.
Red illumination when "ON".
IP65; totally protected against dust and against low pressure water jets.
.250" male contact terminals for quick disconnects.
- Outer COPPER terminal - 12V DC power source.
- Middle COPPER terminal - to accessory/apparatus.
- Outer GOLD terminal - to ground.
Maximum of 25 Amp @ 12V DC.
Fits into 15/16" holes with a maximum panel thickness of 1/8".

Product Content:

1 x Switch

1 Year Manufacturer Warranty
