Once Spilit Core Current Transformer (GWCTSA)

Name: Once Spilit Core Current Transformer (GWCTSA)
Brand: all-electronics-online.com
SKU: 676799272
Availability: InStock
Rating: 4.5 (31 reviews)

Price:	US $ 3.55-3.7/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1000/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	GWCTSA005
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type1:	Current Transformer
Display:	Digital
Weight:	0-10kg
Customized:	Non-Customized
Application:	Lighting
Type:	Current Transformer
Phase:	Single
Installation:	Direct Connected

Product Description

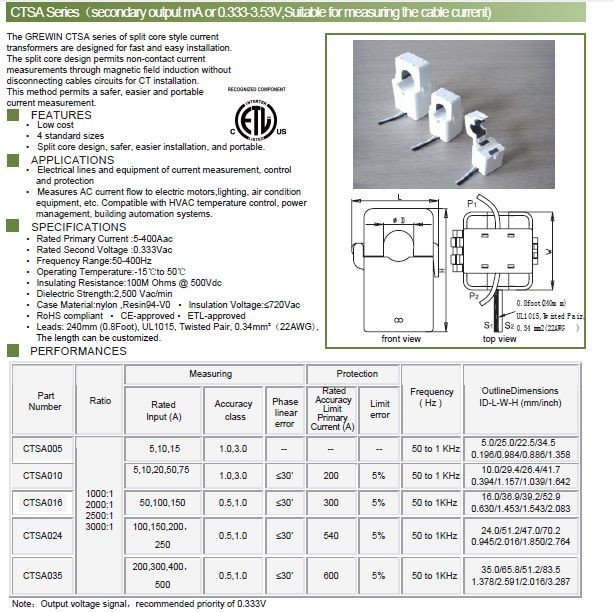

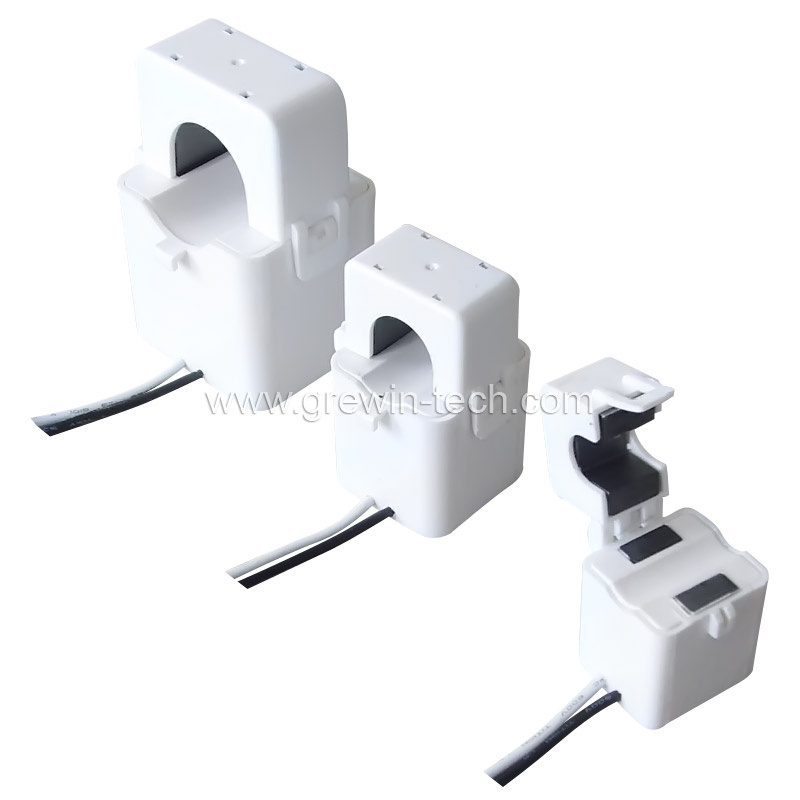

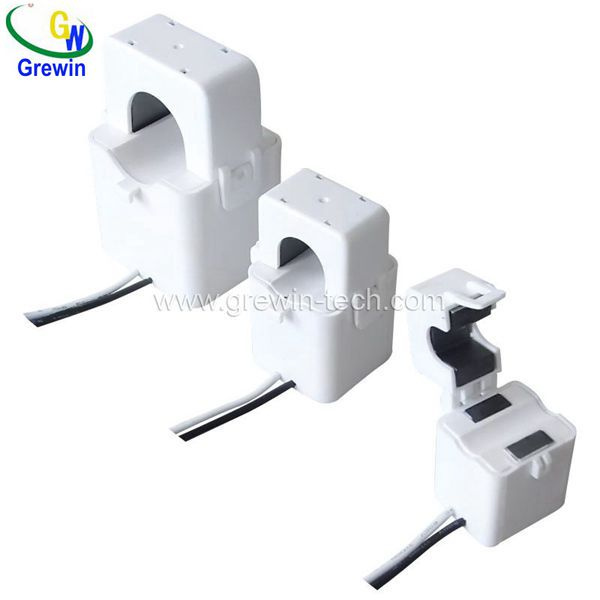

The GREWIN CTSA series of split core style current transformers are designed for fast and easy installation. The split core design permits non-contact current measurements through magnetic field induction without disconnecting cables circuits for CT installation. This method permits a safer, easier and portable current measurement.

Typical parameter:
1. Input: 5, 10, 30, 50, 75, 100, 150,
200A
Output: 0.333V
Size: L-W-H: 50.8mm-53.3mm-17.0mm
2. Input: 75, 100, 150, 200, 300, 400,
600A
Size: L-W-H: 82.5-85.1-27.0mm
3. Input: 100, 200, 300, 600, 800, 1000,
1500A
Output: 0.333V
Size: L-W-H: 121.0-127.0-30.0mm
Accuracy Class: 1.0

Features:
      Low cost
      4 standard sizes
      Split core design, safer, easier installation, and            portable
      Applications
      Measures AC current flow to electric motors,
         lighting, air condition equipment, etc. Compatible with HVAC temperature control, power manage          ment, building automation systems.

Specifications:
      Rated Primary current: 100-300Aac
      Rated Secondary: mA or 0.333-3.53Vac
      Accuracy: 0.5, 1.0, 3.0 Class
      Rated security coefficient: FS<5
      Case Material: nylon Resin UL flame retardant rating 94-V0
      Highest Voltage for Equipment Um (rms): 720Vac
      Rated Power-Frequency Withstand Voltage (rms): 3,000 Vac
      Frequency Range: 50/60Hz.
      Operating Temperature: -15ºC to 60ºC
      RoHS compliant
      Leads:0.8Foot(240mm),UL 1015,Twisted Pair,
         0.34 mm2(22AWG)

Contact info :

Tianjin Grewin Technology Co., Ltd
Contact:Victor Dong
T:86-22-84943756
F:86-22-85909471

Website: http://www.grewin-tech.com/

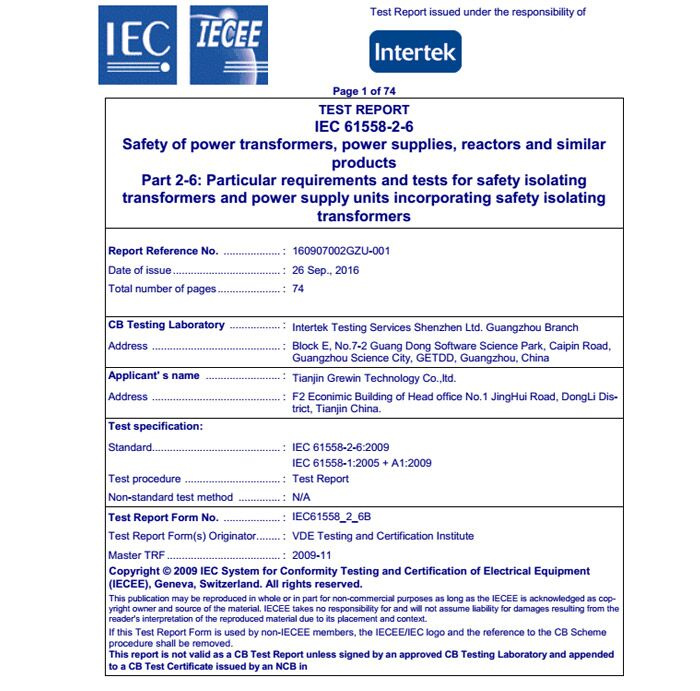

GREWIN as manufacture for Toroidal Transformer, current transformer, high frequency magnetics transformer, split core current sensor, clamp on CT, EI power Transformer etc. We have abtained ISO9001: 2015, IEC, CE, VDE, approval.

Our company have many advantages which can be your honesty and reliable supplier:

WHY CHOOSE US?

A. Business philosophy "Quality and Honesty First“

B. Over 40 years experience of transformer designing and producing.

C. Transformer 100% test before the shipment;

D. UL, CE, ISO9001: 2008

E. We offer custom-made transformers, OEM and ODM are welcome

F. We expect at consistently competitive prices

G. Transformer quality lifetime: 10 Years.

H. Professional experiences of the sales and engineers: 5 -10 Years

Grewin Mission: Growing together side by side, Mutual success hand in hand.

We sincerely invite you to join us to create a bright future.

Contact Information:

Tianjin Grewin Technology Co., Ltd.

TEL: +86 22 84943756

Web: www.grewin-tech.com
