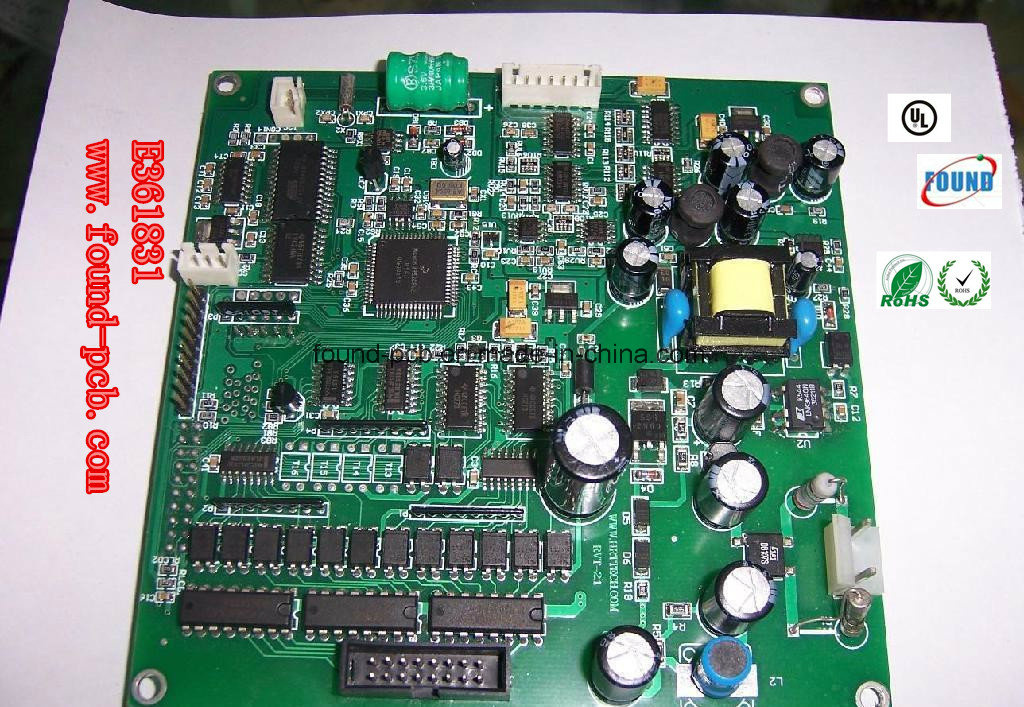

One-Stop OEM PCB Assembly Professional Turnkey PCBA

Name: One-Stop OEM PCB Assembly Professional Turnkey PCBA
Brand: all-electronics-online.com
SKU: 731581352
Availability: InStock
Rating: 5 (108 reviews)

Price:	US $ 1/Piece
Min Order:	1/Piece
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Type:	Combining Rigid Circuit Board
Dielectric:	FR-4
Material:	Fiberglass Epoxy Resin + Polyimide Resin
Flame Retardant Properties:	HB

Product Description

PCB board Capability

Items	Normal standard	Ultimate
Material	FR-4;High TG FR-4;CEM-3;CEM-4	Al-base
Layer NO.	1-20	40
Board Size	50mm50mm-560mm640mm	35mm*50mm
Board Thickness	0.4mm-4.0mm	0.3mm-6.0mm
Thickness Tolerance	±10%	±7%
Min Hole Size	0.2mm	0.15mm
Copper Thickness	18um-105um	18um-420um
Copper Plating hole	18um-30um	18um-40um
Min Trace Width	0.1mm	0.75mm
Min Space Width	0.1mm	0.75mm
SMD Pitch	0.4mm	0.4mm
BGA Pitch	0.6mm	0.6mm
Min Annular Ring	0.07mm	0.05mm
Register Tolerance	0.05mm	0.025mm
Solder Mask Color	green;blue;black;red	white; yellow
Peelable Mask	0.3mm	0.5mm
HASL Thickness	2.5um
lead Free HASL	2.5um
Immersion Gold	Nickel:47um Au:0.05um	Nickel:7um Au:0.2um
OSP Thickness	0.2-2.5um
Outline Tolerance	CNC:±0.1mm; V-CUT:±0.1mm; Punching:±0.15mm
Impedance Control	±10%	±7%
Warpage	Less than 1%	Less than 0.7%
certificate	ISO9001;TS16949

PCB Assembly Capability

Quantity	Prototype&Low Volume PCB Assembly,from 1 Board to 250,is specialty,or up to 1000
Type of Assembly	SMT,Thru-hole, DIP
Solder Type	Water Soluble Solder Paste,Leaded and Lead-Free
Components	Passive Down to 0201 size BGA and VFBGA Leadless Chip Carriers/CSP Double-sided SMT Assembly Fine Pitch to 0.8mils BGA Repair and Reball Part Removal and Replacement
Bare Board Size	Smallest:0.250.25 inches Largest:2020 inches
File Formate	Bill of Materials Gerber files Pick-N-Place file
Types of Service	Turn-key,partial turn-key or consignment
Component packaging	Cut Tape,Tube,Reels,Loose Parts
Turn Time	Same day service to 15 days service
Testing	Flying Probe Test,X-ray Inspection AOI Test

Our advantages :

1) High-end, Small volume and Various kinds of PCBA service offered;

2) Speedy, Flexible and one-stop service in PCBA;

3) Assembly and Purchasing service offered, all components are promised
purchased 100% from Original factories or their pointed agents;

4) Transparent quotation,cost and benefit are detailedly opened to customer;

5) With professional Engineers and Long-term successful experience in cooperating with customers inland and overseas,all new projects can be developed faster and better than expected;

6) With USA or Japan imported tin cream and tin bar, and 100% AOI testing during production, all PCBAs we made are more reliable.

PCBA Technology:
1) Professional Surface-mounting and Through-hole soldering Technology
2) Various sizes like 1206,0805,0603 components SMT technology
3) ICT(In Circuit Test),FCT(Functional Circuit Test) technology.
4) PCB Assembly With UL,CE,FCC,Rohs Approval
5) Nitrogen gas reflow soldering technology for SMT.
6) High Standard SMT&Solder Assembly Line
7) High density interconnected board placement technology capacity.

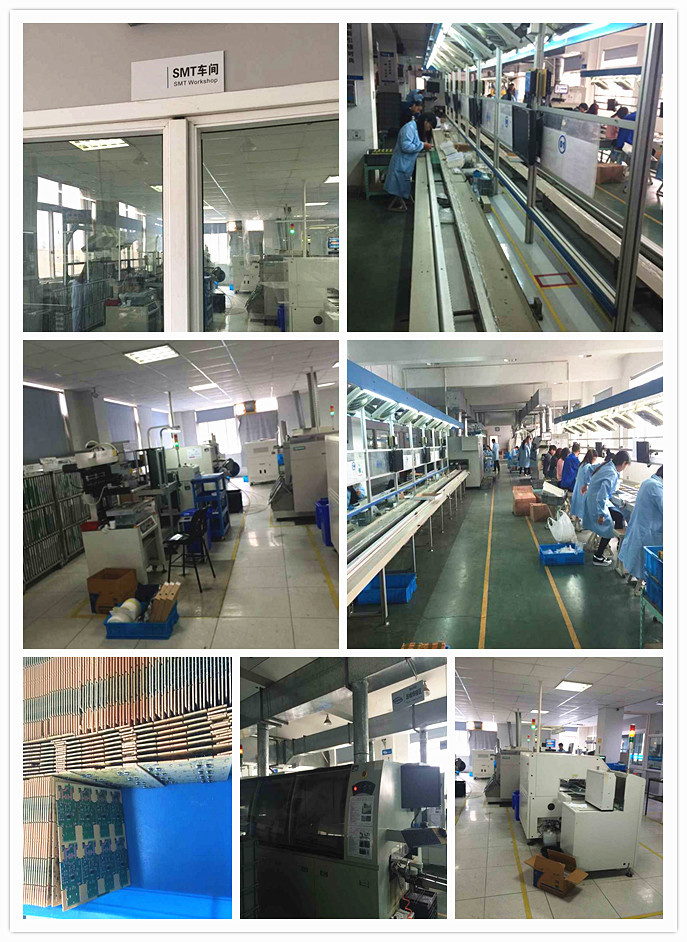

China High Quality of Over-Voltage Circiut Breaker PCBA

China High Quality of Over-Voltage Circiut Breaker PCBA

Found PCB, established in 2005, Shenzhen Found Printed Circuit Board Co., Ltd. is part of Found group. Found PCB dedicated to provide one-stop service, to meet highest technology, quality and quick turn over challenges with lowest cost.

Shenzhen Found Circuit Board Co., Ltd supply all kinds of PCBs more than 10 years. Products including Rigid PCB (1-20 layers), flex PCB(1-4 layer), metal core PCB, Rigid-Flex PCB, especially in the metal core PCB, they use widly in the LED lighting.

A lot of comepays from Europe and North American buy from Found, cause we are the source, we can offer very good price, we think we can save a lot of your purchasing cost.

We also offer PCB solution. Such as Rigid-flex PCB, a lot of factories in China can not made this kind of the rigid-flex PCB. But Found is good at this...

With several year's rapid development, the production capability of our factory reachs 25, 000 square meters with over 500 employees and 180, 000 sq. M production area. Found PCB has been certified by International Quality System IS09001, ISO14001, TS16949 and UL (E361831).

We welcome the every opportunity to working for you. We have the good name in the PCB market.
