| Prod Model: |
pcba-017 |
| Small Order: |
Acceptable |
| PCBA-Testing: |
X-ray,Aoi |
| OEM: |
Yes |
| Solder Mask Color: |
as You Needed |
| Solder Type: |
HASL, HASL Lead-Free |
| PCB: |
PCB Assembly |
| PCBA Process: |
SMT--Wave Soldering--Assembling--Ict--Function Tes |
| Type: |
Rigid Circuit Board |
| Application: |
Consumer Electronics |
| Shape: |
Square |
| Metal Coating: |
Gold |
| Mode Of Production: |
SMT |
| Layers: |
Double-Layer |
| Base Material: |
FR-4 |
| Certification: |
ISO |
| Customized: |
Customized |
| Condition: |
New |
Product Description
Welcome to visit our company website!
One Stop OEM PCBA/PCB Assembly/Printed Circuit PCB Board
Company Profile: Founded in 2008, Shenzhen Rigao Electronics is privately held Shenzhen Corporation,dedicated in providing electronic engineering and manufacturing services.
We mainly customize PCB,PCBA
1. Approved by RoHs CE, FCC certificate,ISO9001 and TS16949 certificate
2. One-stop OEM solution
3. Small order acceptable
Provides OEM services to all sorts of printed circuit board assemblies as well as electronic encased products PCBA, PCB Assembly, SMT Assembly.
We commit to offer high quality level printed circuit board assembly (PCBA),PCB to customer
*Abundant experience and strong ability in material sourcing, manufacturing, test and quality management
*Professional team in charge of product design
*RoHS compaint SMT, DIP process
*High-precision E-Testing include: ICT in circuit, function test, AOI, etc.
*Flexible production volume follow different customer requirement
*We offer quotation for clients within 3 working days, and reply E-mail within 6 hours.
Detailed Specification of PCB Manufacturing
General Specifications Capability
Material Requirements:
| Size | Max.Finshed Size | 20.9"x24.4"(530mm x 620mm ) |
| Board Thickness | Standard | 0.004"to0.16 " ±10% ( 0.1mmto4.0mm±10% ) |
| Min. | Single/ Double-sided:0.008"±0.004"(0.2mm ±0.1mm) |
| 4-layer:0.01"±0.008"(0.4mm ±0.1mm) |
| 8-layer :0.01"±0.008"(0.4mm ±0.1mm) |
| Bow and twist | < 7/1000 |
| Copper Weight | Outer Cu weight | 0.5oz ~ 3.0oz |
| Inner Cu wight | 0.5oz ~ 3.0oz |
| Laminate Materials | FR-4,FR-1,,FR-2,CEM-1,CEM-3 |
Process Requirements:
| Solder Mask | Color | green,light green,white,black,dark brown,yellow,red,blue |
| Min. solder mask clearance | 0.003"(0.07mm) |
| Thickness | 0.0005"-0.0007"(0.012mm-0.017mm) |
| Silkscreen | Color | White,black,yellow,red,blue,green |
| Min. Size | 0.006"(0.15mm) |
| Surface Finish | HASL,HASL pb free,immersion gold,immersion silver,immersion tin,O.S.P (Entek),S/G plating,ENEPIG,G/F plating,carbon |
Quality Control:
| Electrical testing | Flying Probe Tester | Y |
| Controlled Impedance | Tolerance | ±10% |
| Impedance tester | Tektronix TDS8200 |
| Routing | End Mills Test | ± 0.006"(0.15mm) |
| CNC Tolerance | ±0.004"(0.1mm) |
| V-Cut Depth V-cut | FR-4(1/3+-0.1mm);FR-1,FR-2,CEM-1,CEM-3(1/2+-0.1mm) |
| V-cut angle V-CUT | 15°,18°,30° |
| V-CUT | line,hole,V-shape |
Certificates | UL Cert. | Y |
| ISO Cert. | ISO9001 :2008 |
| TS16949 | Y |
| ISO14000 | Y |

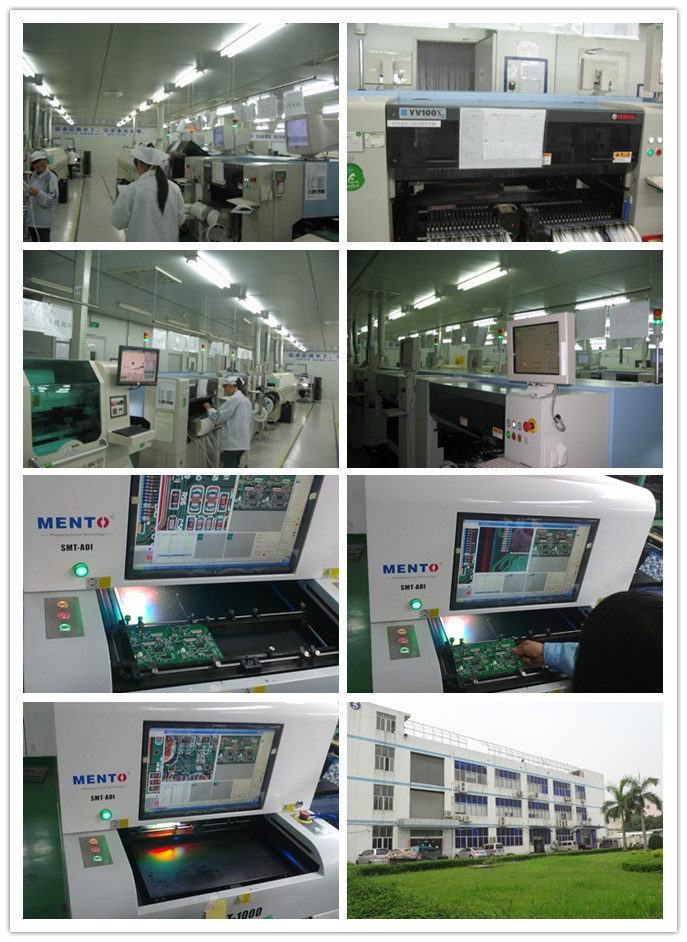

View our Factory:
RFQ:
Q:What service can you provide?
A:We can provide PCB electronic board gerber file design,Copy and Clone,OEM and ODM service.Not only produce PCB,PCB Assembly,but also Plastic Enclosure,and Complete products .
Q:How do you make your price?
A: We make the price according to our comprehensive costing. And our price will lower than the trade company because we are manufacture. You will get competitive price and better quality.
Q:Are my design files secure when I send them to you?
A: Your files are held in complete safety and security while Hua Xing PCBA Limited is in possession of them. Your files are never shared nor will any third parties have access to your design files. Since they are your property, we respect the copyright of your files. The customer controls the disposition of these files per your requirements and written approval.
Our Services:
We can provide the following services: Fully Electronic Manufacturing Services(EMS):
1. PCB Assembly: SMT, THT/DIP, BGA, COB soldering.
2. PCB Manufacture: 1-64 layers, Buried & Blind via PCB, Imdepence PCB, Highfrequency PCB, FR-4, Flexible PCB, Flex-rigid PCB, Aluminium PCB.
3. PCBA Testing Jigs: PMMA, Automated & Manual Tooling.
4. Design: we need a idea or schematic diagram for PCB & PCBA design.
5. Copy & Clone: PCB and PCBA copy, we can provide you gerber file and BOM file after we done. Welcome all kindly of pcb and pcb assembly business for inquiry, we will feedback to you soon.
Contact me, i'll spare no effort to help you.
Shenzhen Rigao Electronics Co., Ltd. is a newly company which founded in 2008. At beginning we were only focus on manufacturing Printed Circuit Boards. But now we has become a rapidly growing worldwide provider of solutions in three principal areas Printed Circuit Boards, PCB Assembly and Components Procurement. We are dedicated to building solid partnerships and providing flexible solutions to enable our customer's success.
As an experienced PCB and PCBA manufacturer, we provide prototypes, small volume, medium volume, and high volume projects. We are able to guarantee a complete service with comprehensive technical backup, offering acost advantage and scheduled delivery.
Our main services include offering
Rigid PCB (up to 64 Layers)
Flexible PCB/FPC (1~6 Layers)
Rigid-Flex (3~18 Layers)
Aluminum-based PCB (1~6 Layers)
High Density Interconnection/HDI PCB
High frequency material PCB
DIP, COB, SMT assembly Services
Components Sourcing
We have since successfully completed over 5, 500 projects and have nearly 300 satisfied repeat customers. Our customers are from over 30 countries in various industries, including computer, home appliances, consumer products, telecom, scientific research institutes, etc.
Our manufacturing and quality control processes are ISO 9001: 2000 certified and conform to IPC-A600(PCB) and IPC-A610 (PCB Assembly) standards. All our PCB/PCBA are UL certified and RoHS compliant.
Our Principle is simple, "Act by heart, Make the best. "
Our strength is distinct, "Years of experiences in PCB and PCBA field"
Our Goal is achievable, "To be the most reliable supplier of PCB and PCBA. "
Our orientation is clear, "Focus on prototypes and low to medium volume business "
Your trust and support would be a solid back-up for our business. We sincerely hope to provide you with high-quality products and satisfactory services.
We are look forward to working with you!
