| Prod Model: |
GP33 |
| Phase: |
Three Phase |
| Type: |
On-line |
| Protection: |
Short Circuit |
| Brand: |
Honle |

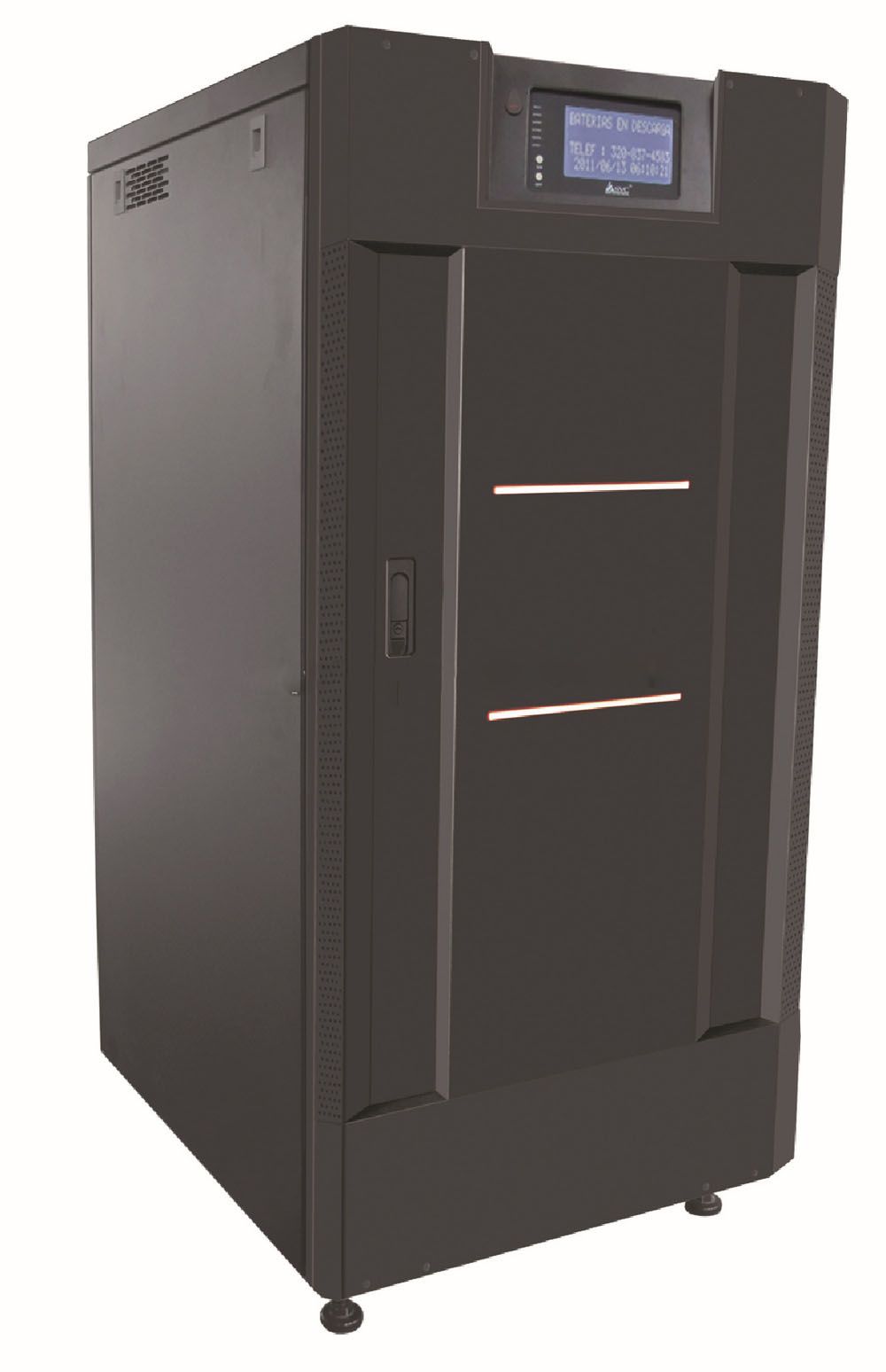

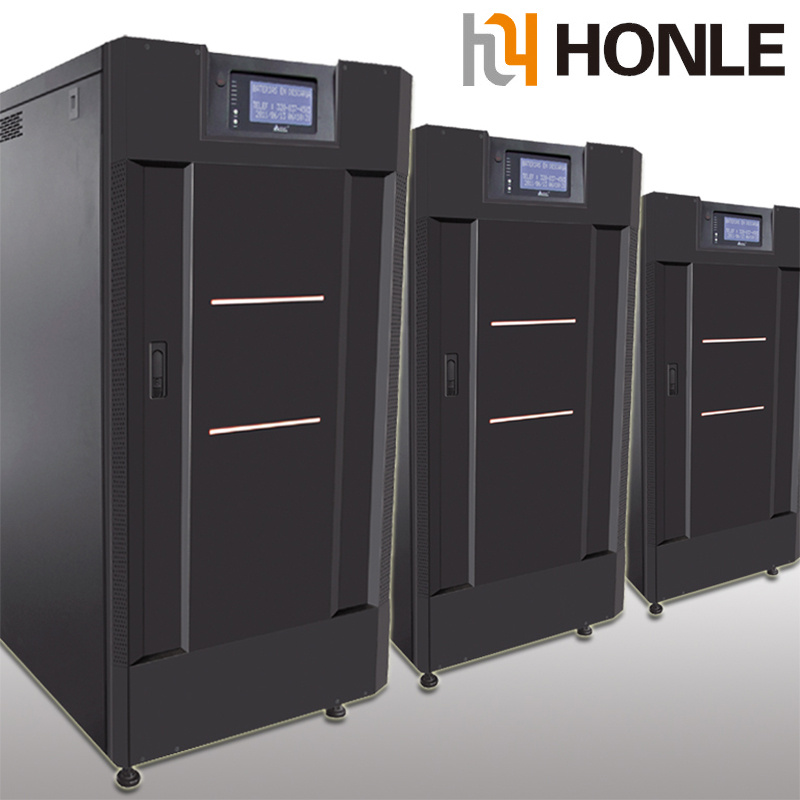

Product Description
- Place of Origin: Zhejiang, China (Mainland)
- Brand Name: HONLE
- Model Number: GP33 series
- Phase: Three Phase
- Protection: Short Circuit
- Weight: 150
- Output Voltage: 220v
- Type: On-line
- Application: Suitable for all electrical equipments
- Capacity: 20~200KVA
- Technology: CPU control
- Protector: Overload,over voltage, short curcuit
Feature
1. High-efficient DSP chip
2. Outstanding electric property
3. Good looking and excellent hardware
4.N+X parallel redundancy (compatible to battery share in the parallel m ode)
5. Frontal-board operation and maintenance
6. Twin-channel line input
7. Remote monitoring
8. Intelligent management of battery charging and discharging
9. Flexible battery arrangement
10. Flexible arrangement, change due to the need.
Specification| MODEL | GP33-20-30 | GP33-40-60 | GP33-80-100 | GP33-120-200 |
| Capacity | 20~30KVA | 40~60KVA | 80~100KVA | 120~200KVA |
| Type | Tower |
| INPUT |
| Voltage | (208 or 380 or 400 or 480 Vac) ± 20%
/ 5 wires (3 Lines + Neutral + Ground) |
| Frequency | 50 or 60Hz ± 10% Autosensing |
| Power factor | 0.98 |
| Filter | EMI, RFI |
| Dual input | Optional |
| OUTPUT |
| Voltage | (208 or 380 or 400 or 480 Vac) ± 20% /
5 wires (3 Lines + Neutral + Ground) |
| Frequency | 50 or 60Hz ± 0.1% |
| Effciency | AC / AC > 92% |
| Trandfer time | 0 ms |
| Wave form | Sine wave |
| Power factor | 0.9 |
| Voltage T.H.D. | < 2% with linear load |
| Crest factor | 3 : 1 |
| Technology | True on-line double conversion controlled by microcontroller |
| Overload recovery | Automatically transfer to UPS mode |
| Isolation transformer | Inverter mode ( bypass mode is optional ) |
| Parallel connection | Parallel connection function is ready (extra PCB is not required ) |
| BATTERY |
| Battery type | VRLA ( Valve Regulated Lead Acid ), not included |
| DC voltage | 384 Vac | 480 Vdc |
| Charging time | 4 hours up to 90% |
| Battery detection | self-detect, transfer to battery mode adjustable |
Field of application
Application to office, computer facilities and industrial environments
Input and output: 3 phase in 3 phase out
Packing & Shipping
Packing deails: Standard Export Cartons
Shipping details: 7-10 days after recepit the deposit

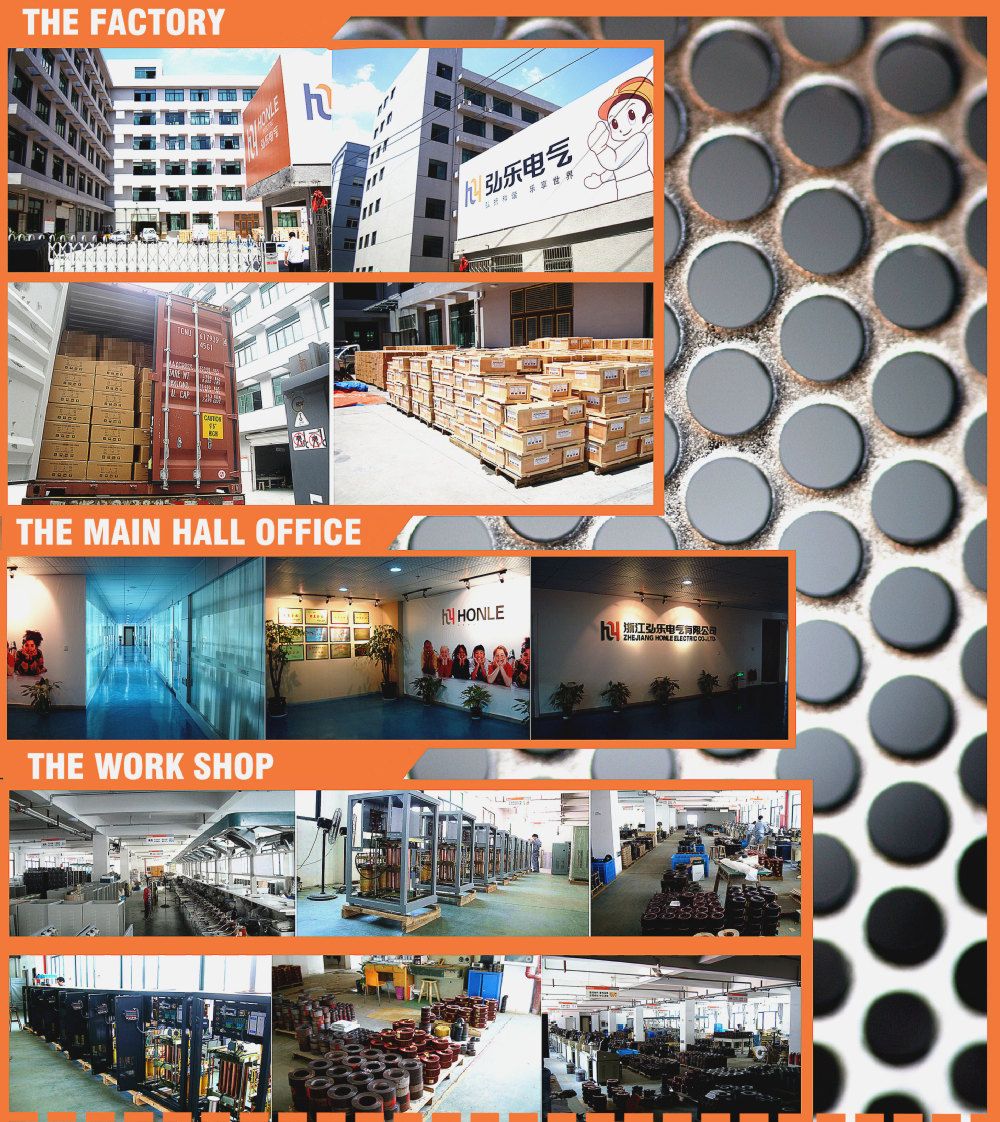

Company Information
HONLE Electric Co.Ltd. is the manufacturer which specializes in developing, producing and marketing
industrial electrical products. It has three factories, the first one produces power supply, the second one produces power transformer, and the third one produces complete set of equipment. As a member of
China Power Supply Society, since HONLE is founded, the company has been insisting on the theoretic
guideline of "science &technology is the first productive force" and holding up brand strategy as the guideline, relying on forwarding power supply technology, perfecting craft and unwearied pursuing to quality. We can
show top quality and set up positive image of enterprisein domestic and foreign market.
Our Service
1.Your inquiry related to our product & price will be replied within 48 hours
2.Well-trained & experienced staff are to answer all your inquiries in English
3.Working time: 8:00am ~17:00pm, Monday to Saturday. (UTC+8)
4.Customized solution & perfect after-sale service
5. Payment: we can accept T/T, L/C, Western Union.
6. For large order, engineer can be sent to your country for on-site mainternace instructions.
Honle Electric Co., Ltd is the manufacturer specialized in producing industrial electrical products. It has three factories, the first one produces power supply, the second one produce power transformer, the third one produces complete plants and equipment. As a member of China Power Supply Society, since its foundation, the company has been insisting on the theoretic guideline of "science &technology is the first productive force" and holding up brand strategy as the guide, relying on forward understanding about power supply technology, perfect craft and unwearied pursuing to quality, we can show top quality power supply products, and set up fine image in Chinese market and overseas market.
Up to now, Honle has the modern workshops and advanced production devices. Besides, the company always introduces technology positively, reforms craft continuously, devotes to researching and developing the voltage stabilizer, regulator and power supply, precise pureness power supply, providing, marketing for products. The company always do researching and developing the stabilized voltage power supply, precise pureness power supply, providing marketing for products. In addition, the company tries to find excellent administrators and technical talents. After just a few years of continuous efforts, Honle has been improved on the aspect of varieties, production scale, management mode. So products manufactured by Honle have reached advanced technical level, they are not only popular with a great many customers in China, but also in foreign countries.
The products of our company have been approved by Shanghai Quality Supervision & Inspection Institute, and insured by PICC company. Honle insists on the quality of survival, innovation and development all the time, and it has passed ISO9001 quality management system certification. Relying on rich economic strength, fine production engineering, innovating management mode, we can dare to meet kinds of challenges from China entering WTO. That is helpful for establishing reinforced foundation of international business.
