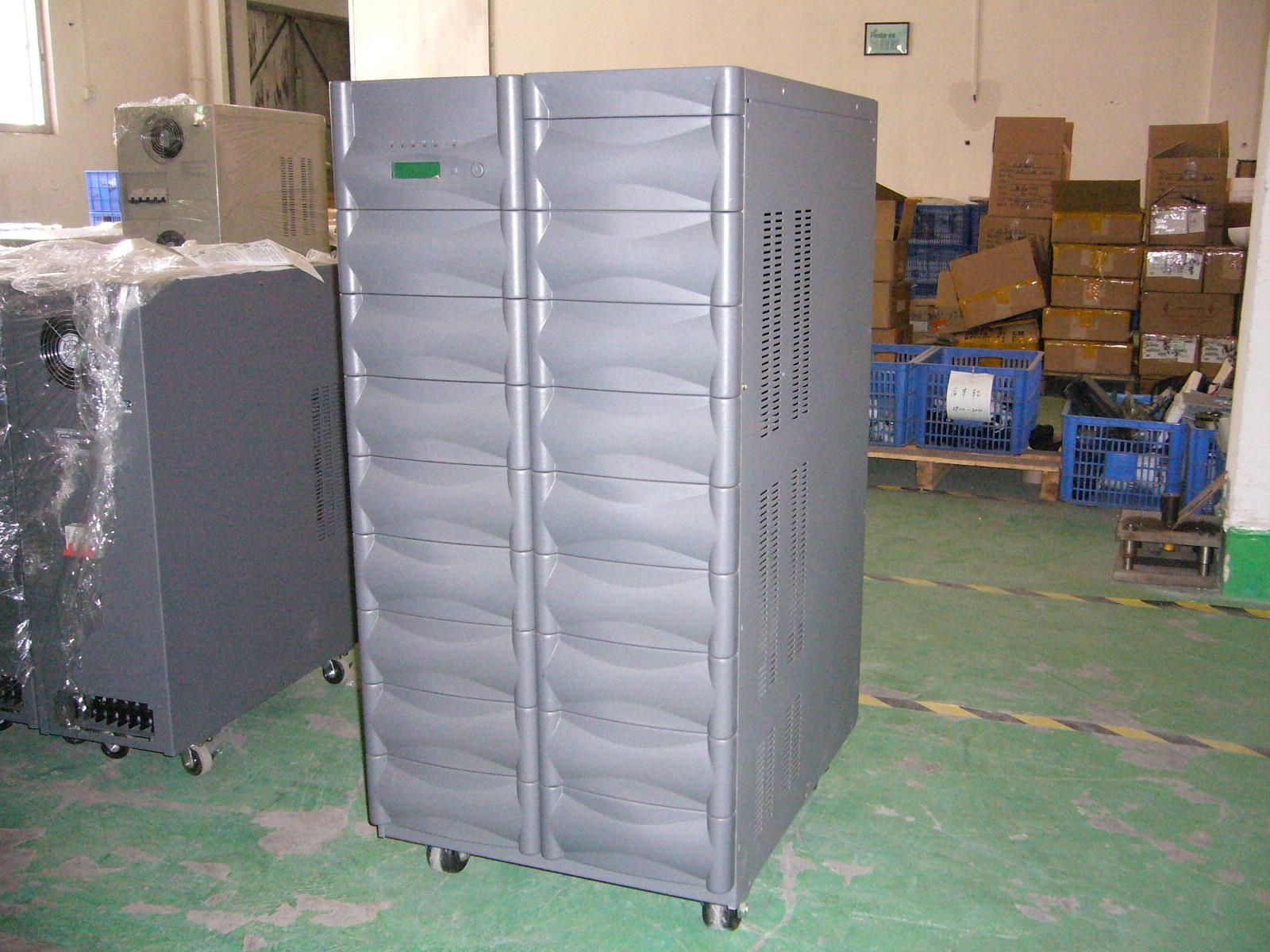

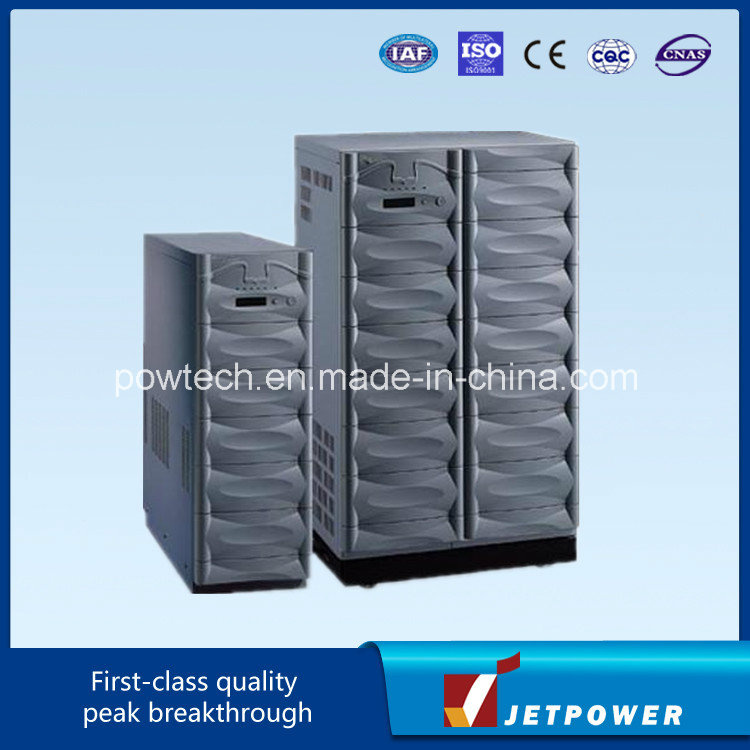

Online Low Frequency UPS, 6~60kVA
| Price: |
US $ 100/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
PQZ |
| Technology: |
Online Low Frequency |
| Input Voltage: |
380vac, 3phase |
| Output Voltage: |
220vac, 1phase |
| Phase: |
Three Phase |
| Type: |
On-line |
| Protection: |
Overvoltage |
Product Description
6 to 60kVA UPS(1) Online low frequency
(2) Input: 380Vac/3phase
(3) Output: 220Vac/1phase
Features:1. Advance IGBT inverted technology
2. Multiple CPU intelligent control
3. Multiple protection function of over-voltage, short circuit, over-temperature
4. LCD front panel
5. Speical industrial design to ensure the safety in worse environment
6. Reliable, filtering and stable sine wave output
7. Cold start with DC function, unmanned function
8. Online double-conversion, with output isolation transformer
|
PQZ2K~20K (1phase in and 1phase out) |
|
Mode: |
PQZ1K |
PQZ2K |
PQZ3K |
PQZ6K |
PQZ10K |
PQZ15K |
PQZ20K |
|
Capacity (VA/W) |
1K/0.8K |
2K/1.6K |
3K/2.4K |
6K/4.8K |
10K/8K |
15K/12K |
20K/16K |
|
Input Voltage |
Single phase with two Lines+ground wire, 230V± 25% |
|
Noise |
≤ 52dB(distance 1m) |
≤ 60dB(distance 1m) |
|
Size |
530× 264× 592 |
630× 343× 700 |
|
(D× W× H, mm) |
|
Weight (Kg) (w/o battery) |
30 |
65 |
70 |
80 |
145 |
160 |
180 |
|
PQZ6K3~60K3 (Three- in and single- out) |
|
Mode: |
PQZ6K3 |
PQZ10K3 |
PQZ15K3 |
PQZ20K3 |
PQZ30K3 |
PQZ40K3 |
PQZ50K3 |
PQZ60K3 |
|
Capacity (VA/W) |
6K/4.8K |
10K/8K |
15K/12K |
20K/16K |
30K/24K |
40K/32K |
50K/40 |
60K/48K |
|
Input Voltage |
Three phase with four Lines+ground wire, 380V± 25% |
|
Noise |
≤ 60dB(distance 1m) |
≤ 65dB(distance 1m) |
|
Size |
620× 343× 995 |
650× 700× 1510 |
|
(D× W× H, mm) |
|
Weight(Kg) (w/o battery) |
130 |
165 |
180 |
220 |
400 |
450 |
530 |
620 |
|
Common parameters |
|
Input |
Frequency |
50Hz /60Hz ± 10% |
|
Power factor |
≥ 0.95 |
|
Output |
Voltage |
220V± 0.5% |
|
Voltage regulation |
Stable ± 1%, dynamic ± 2%, (< 20ms for 0-100%load change) |
|
Frequency stabilization |
50Hz /60Hz ± 0.5% (Battery Mode) |
|
Frequency slow rate |
< 1Hz / second |
|
Transient response |
± 0.4% (100% instant load fluctuation) |
|
THD |
< 3% for linear load; < 5% for non-linear load |
|
Overload |
110%~150% for 10seconds; > 150% for 1second |
|
Wave form |
True sine wave |
|
Efficiency |
Input AC to output AC |
> 90% |
|
Transfer time |
AC mains fails and/or restores |
0second |
|
UPS to BYPASS |
< 4 ms |
|
Battery |
Voltage |
192V |
|
Charge time |
8 hrs' recharge to 90% capacity |
|
Alarm |
Battery discharge |
Beeps once every 4 seconds when battery discharge |
|
Beeps once every 1 second when battery low. |
|
Beeps continuously when battery discharge stop |
|
UPS fault |
Beeps continuously |
|
Protection |
Battery low |
Auto shutdown when battery low without fuse protection. |
|
Overload |
110~150% overload for 10 seconds, then auto jumps to BYPASS; Auto resumes when overload removed |
|
Over temperature |
Auto jumps to BYPASS when UPS internal temperature > 85° C |
|
Output short circuit |
Current limits, auto shutdown, no fuse switch protection. |
|
UPS fault |
Auto jumps to BYPASS |
|
Noise Filter< 0} |
10~10KHz at 40 db; 100KHz~100MHz at 70 db |
|
Display |
LCD |
Input and output voltage, frequency; battery voltage and output power (%), etc |
|
LED (BLV) |
LED (BLV) turns on when battery voltage low. |
|
Ambient |
Temperature |
0~40degC |
|
Relative humidity |
10%~90% (No condensation) |
|
Altitude |
1500 meters |
Founded in 1994, POWTECH invested by Taiwan, is an independently owned international corporation dedicating to develop, produce & distribute JETPOWER brand power supplies and OPTELEC brand optical cables.
The first JETPOWER branded online high frequency UPS was developed in 1994. Driven by customer requirements, we have developed OFF LINE UPS, Line-interactive UPS, Industrial Online UPS, outdoor UPS, telecom inverter, power inverter and home inverter. Through a decade of great efforts, we have made our JETPOWER branded power supplies widely applied in the fields of finance, telecom, electric power, petrochemistry, custom and military field etc, and have been honorably commented by clients. Besides, we also cooperate with many famous power supply companies by OED/ODM, and now our products have been sold worldwidely, including Europe, South America, Africa, Middle East, Asia etc.
As the fast development of power supply, We also expand our business to optical cable and accessories. In 2006, we have set up our own OPTELEC brand to develop, manufacture and distribute ADSS cable, OPGW cable, optical cable, Fusion Splicer, OTDR, Terminal tool kit, ADSS fittings, OPGW fittings, link fittings, wire mesh cable tray, preformed cable tray, cable trunking, cable ladders, STG modules, STG magazines and accessories. Till now, our OPTELEC brand optical cable and accessories have been used in more than 20 countries' telecom lines' construction and power transmission lines' construction.
Powtech has passed the ISO9001 international quality system certification and has established a complete quality system from material source, process, assembling to testing. All Powtech products have been approved by KEMA, SGS and CE (LVD/EMC) or by customer-appointed safety agencies.
Not only do we pride ourselves on competitive price, Advanced technology and top quality products but also we have value-added technical support. We can dispatch our engineer to customer's site for site installation and training, Or we can provide online service to solve any problem during installation & operation. On the priniciple that there is no customer too big or too small, Every customer deserves most professional service. POWTECH people anticipate growing and prospering with you, Embarking on a way of success.
