| Prod Model: |
PG-400K |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Wave Form: |
True Sine Wave |
| Phase: |
Three Phase |
| Type: |
On-line |
| Protection: |
Overvoltage |
| Brand: |
Jetpower |
Product Description

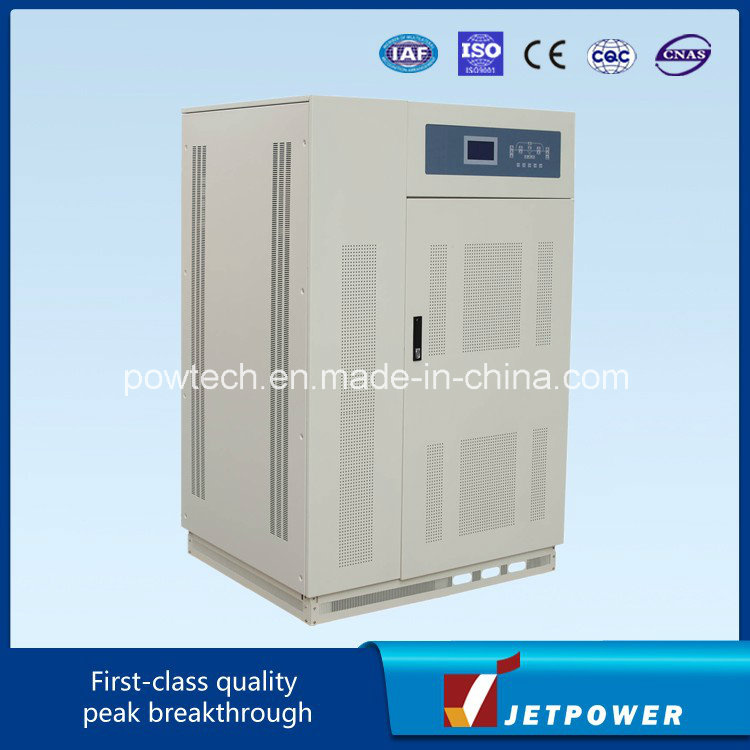

6K-400KVA, Online Low Frequency, True Sine Wave, 3ins/3outs
1. High performance systems
-On-line double conversion with output isolation transformer
-True sine wave output
-Advanced IGBT inverted technology
-Microprocessor controller
-Key components with redundant design for higher reliability
-Durable and reliable industrial design protect the critical load
-Standard thunder-proof and anti-static function
-DC cold startup, unmanned function
2. User friendly operation
-LED and LCD display
- System self-diagnostics
3. Perfect input and output phase-loss protection
When any one phase is abnormal or loss, the system will automatically alert to protect UPS system itself and 3-phase load
4.3-phase output at 100% load imbalance
Suitable for 3-phase 100% unbalanced load and non-linear load without derated power; When 3 phases 100% unbalanced, 2 phases loaded or 1 phase loaded, it can operate normally.
5. Static transfer switch with special design
Static transfer switch with special design can realize truly non-stop operation, by adopting isolation transformer on the output side to realize current isolation. The specially designed static transfer switch can ensure zero transfer time under any situation, which can protect critical load.
6. Advanced phase-balanced technology
With most advanced phase-balanced technology, it features highest stability, even if phase lose, it still can operate normally, especially suitable for harsh environments.
7. Comprehensive protection
Input over/under voltage, output short circuit, overload, over temperature, battery low and etc.
8. Remote Operation
- RS-232 interface
- Power management software (Power manager CD included)
- Support Microsoft win98/2000/NT/XP, Linux and more
9. Optional part
-SNMP card
| PG6K ~ 60K |
| Mode | PG6K | PG10K | PG15K | PG20K | PG30K | PG40K | PG50K | PG60K |
| Capacity (VA/W) | 6K/4.8K | 10K/8K | 15K/12K | 20K/16K | 30K/24K | 40K/32K | 50K/40K | 60K/48K |
| Batteryvoltage (V) | 192 |
| Overall efficiency | ≥ 91% |
| Noise | ≤ 53dB (distance 1m) | ≤ 56B (distance 1m) |
| Size: W× D× H(mm) | 550× 600× 1135 | 650× 700× 1510 |
Weight (Kg)
(w/o battery) | 260 | 280 | 310 | 340 | 480 | 520 | 560 | 580 |
| PG80K ~ 400K |
| Mode | PG80K | PG100K | PG120K | PG150K | PG200K | PG250K | PG300K | PG400K |
| Capacity (VA/W) | 80K/64K | 100K/80K | 120K/96K | 150K/120K | 200K/160K | 250K/200K | 300K/240K | 400K/320K |
| Battery voltage(V) | 240 | 384 |
| Overall efficiency | ≥ 93% | ≥ 94% |
| Noise | ≤ 60dB (distance 1m) | ≤ 65B (distance 1m) |
| Size: W× D× H(mm) | 1250× 750× 1600 | 1600× 750× 1600 |
Weight (Kg)
(w/o battery) | 780 | 860 | 980 | 1250 | 1600 | 1800 | 2100 | 2500 |
| Common parameter |
| Input | Voltage | Three phase with four line+ground wire, 380V± 25% |
| Frequency | 50Hz± 10% |
| Power factor | ≥ 0.92 |
| Output | Voltage regulation | Three-phase four-wire system, 380V± 1% |
| Frequency regulation | 50Hz± 0.05%(battery mode) |
| Wave form | True sine wave |
| Harmonic distortion | < 3% (linear load), < 5%( non-linear load) |
| Unbalanced voltage | Balanced load≤ 1%, unbalanced load≤ 3% |
| Phase displacement angle | Balanced load≤ 1º , unbalanced load≤ 3º |
| Transient response | ≤ 3% (load change: 0~50%~100%) and recovery time ≤ 10ms |
| Overload | 110%≥ 20min; 150%≥ 20s |
| Crest ratio | 5: 1 |
| Transfer time | 0ms |
| Efficiency | Input AC to output AC | ≥ 95% |
| Indicator | LCD | Input voltage, output voltage, frequency, battery voltage, output power(%) |
| LED | BLV LED (battery low voltage) |
| Battery | Batterytype | Lead-acid sealed, maintenance-free |
| Charging method | PWM constant current and constant voltage, battery intelligent management system |
| Charging time (standard type) | 12 hours |
| System performance | MTBF | 300, 000 hours |
| Environment | temperature-10º ~50º , humidity 0~93% without condensation, altitude ≤ 3000m |
| Support software interface | Novell Net Ware Microsoft Windows9X Windows2000 Windows NT Linux |
| Other | Dustproof and moisture proof, inverter isolating transformer, thunderbolt surging wave absorption, and manual bypass switch |
