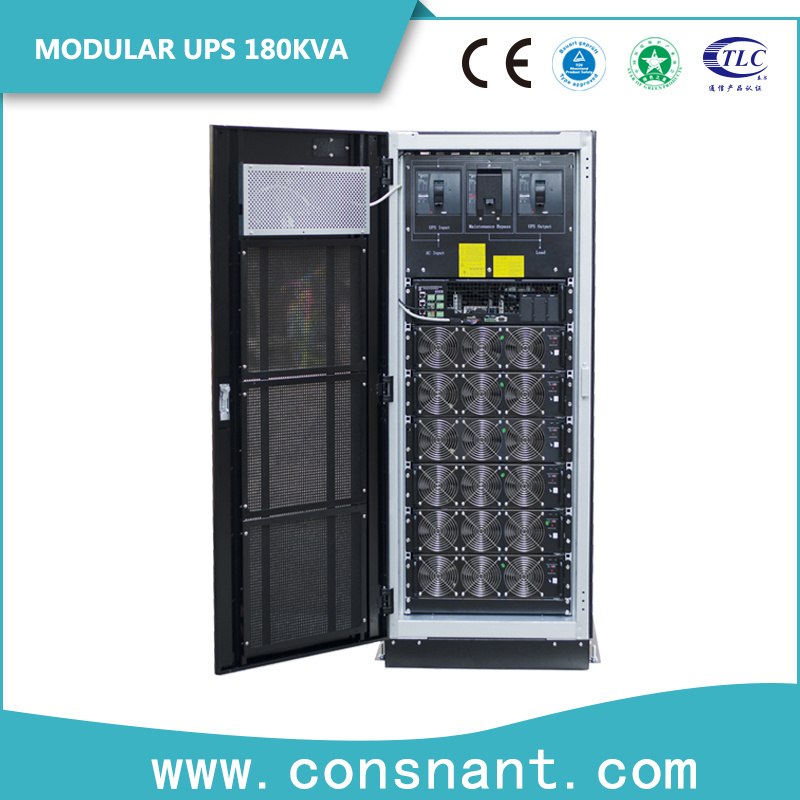

High Efficiency Modular UPS System Parallel Redundancy Online 30 - 180KVA
CNM330 series is modular online UPS for sensitive equipment. The single cabinet power rating covers from 10KVA to 300KVA which delivers the best of combination of reliability, hot-swappable and flexibility. With the latest IGBT three-level technology and DSP control, CNM330 achieves a high input power factor, low THDi Modular design with N+X redundancy and online hot swapping ,easy to expand the capacity Full DSP control of high stability, reliability and safety Integrated IGBT module with improved performance and reduced size
Application:
Application IDC(Internet Data Center)
Computing center
ISP (Internet Service Provider )
Telecom , Finance, bank and securities , Tax
Hospital system , industrial automation
Precision equipment, etc.
Features:
Superior energy saving :
Efficiency > 96% at 50%-75% rated load, and > 95% at 25% rated load; Input PF > 0.99,input THDi<3%
Easy-to-install:
Top or bottom cabling, no need of input cabling cabinet.
Easy-to-maintain:
Full front access, UPS, failed part can be replaced shortly
Easy-to-modify:
The number of batter y cells can be configured flexibly, so the original batteries can be used when modifying the legacy system; moreover, the battery cell can be replaced in time when it fails without interrupting the normal operation of UPS.
Extra large LCD that can display 12 language (Chinese ,English ,Russian, French ,Spanish and so on).
Provide large LCD touch screen (optional)
Each UPS modules provide 4.5KW charge capacity. equivalent to 10 to 12A
Advanced DSP full digital control technologies realize higher system stability, online capacity expansion and maintenance
Advanced distributed active parallel technology realizes parallel operation of 4 UPS units and online capacity expansion without centralized bypass cabinet
Adaptive to severe power grid environment due to extra wide input voltage and frequency ranges
Intelligent battery management maintains battery automatically to prolong the battery life
The machine system for modular structure, consists of 1 to 10 module's biggest single module to 30kw
UPS power module supporting hot swappable, capacity upgrade extremely simple.
Super ability for overload and short circuit, ensure the system stability and safety under the limit state of system
Technical Specifications:

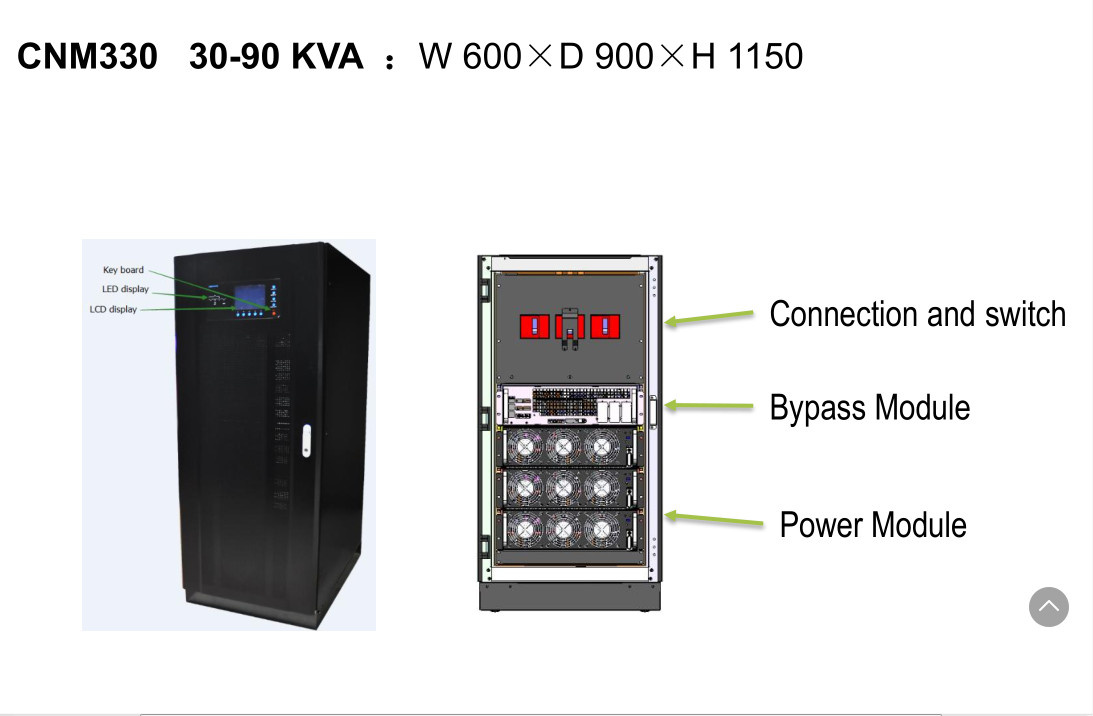

| Model | CNM330 20-300KVA |
| Capacity | 20-300KVA |
| Main Input | |
| Input Voltage | 380V/400V/415V |
| Input Frequency Range | 50/60Hz |
| Power Factor | Full load>0.99 ,Half load >0.98 |
| THDi | THDi<3% |
| Input Power Soft-start Function | 5-30s settable |
| Input Voltage Ranges | 228V-476V;-20%~25% at Full load ; linear derating at -25% ~- 40%; can take 70% load at -40% |
| Frequency Range | 40-70HZ |
| Battery |
| Battery Voltage | ±240VDC(Default),12V Battery 30~40pcs can be choose |
| Charge Voltage Accuracy | ±1% |
| Bypass |
| Bypass Input Voltage | 380/400/415VAC 3-phase 4-wire |
| Voltage Range | Default value is -20%~+15%; -40%, -30%, -10% ~ +10%, +15% , other ranges can be set via software |
| Overload Capacity | Long term at 135% rated load ,150%load>1000% 100ms |
| Output |
| Inverter Output Voltage | 380/400/415VAC 3-phase 4-wire |
| Voltage Accuracy | ±0.5% ( balanced load ) , ±1% ( unbalanced load ) |
| THDV | THDV<1% (linear load) , THDV<3% (nonlinear load) |
| Power Factor | 0.9 |
| Three Phase Angle Accuracy | 120°± 0.5° |
| Current Crest Ratio | 3:1 |
| Overload Capacity | 110%1h,125%10mins,150%1mins,>150%200ms |
| Transfer Time | 0ms,15ms (Eco Mode) |
| System |
| Frequency | 50Hz/60Hz (Settable) |
| Mains Synchronization Range | ±2Hz(Default value), adjustable with step of 0.5Hz within range of +/- 0.5Hz - 3Hz |
| Protection Level | IP20 |
| Communication Ports | RS232,RS485,dry contact, SNMP card, EPO, generator port |
| System efficiency | >96% at load above 50%, >95% at load above 25% |
| Operation Temperature | 0-40ºC |
| Storage Temperature | -25ºC~70ºC ( without battery) |
| Humidity | 0-95% (no-condensing) |
| Noise(dB) | 55-62dB,Adjusted with load |
| Weight | module:PM20 | 20KVA power module : 35KG |
| module:PM30 | 30KVA power module : 35KG |
| module:PM40 | 40KVA power module : 35KG |
| Dimension (W x D x H)mm | 3 module cabinet | 600X900X1135 |
| 5 module cabinet(5 battery cabinet option) | 600X1100X2070/ |
| 6 module cabinet | 600X900X1535 |
| 10 module cabinet | 900X900X2080 |

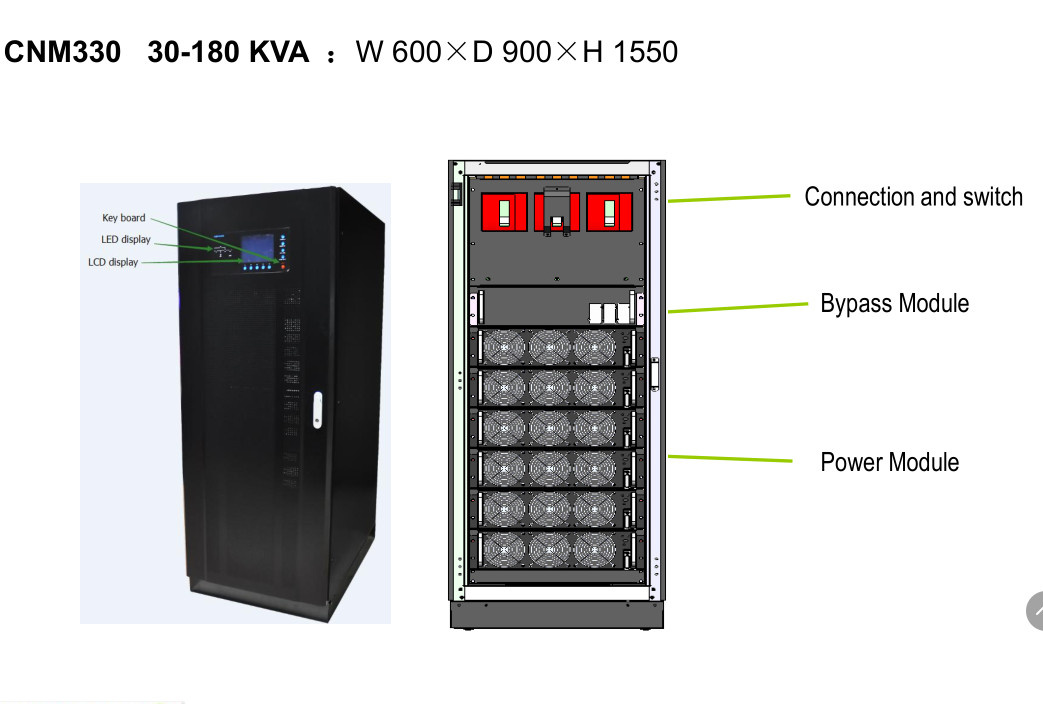

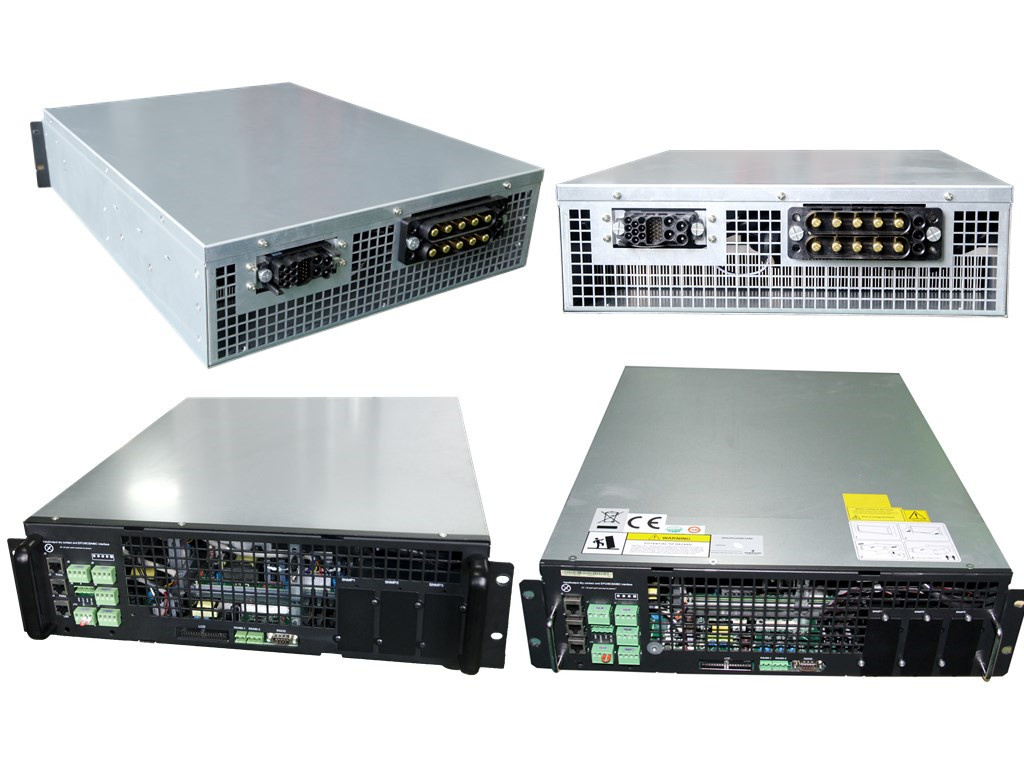

| power module | 440X650X132(3U)(10KVA/20KVA/30KVA) |
(Optional South America 208V must be derating use)

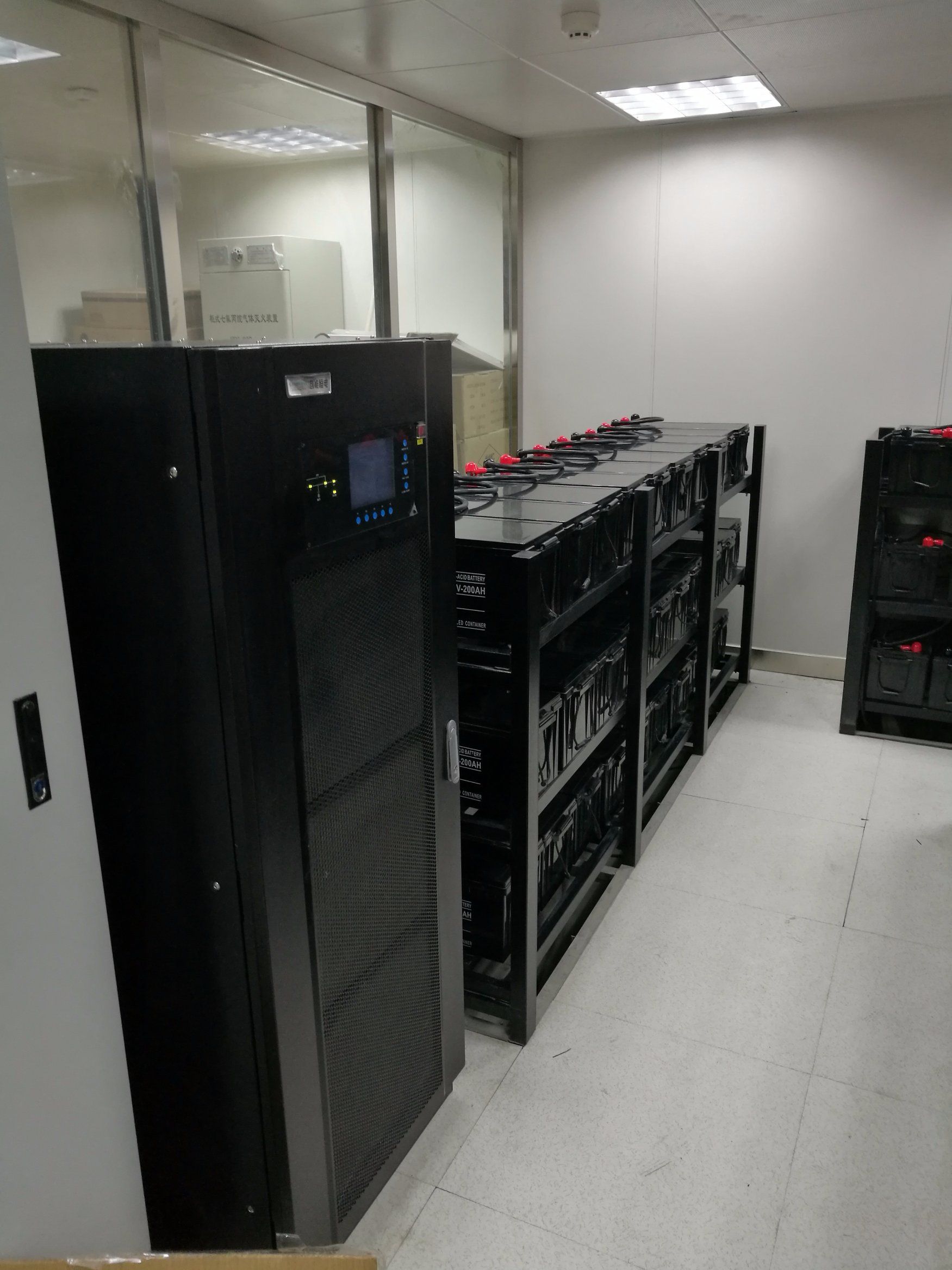

CONSNANT Modular UPS in hospital
