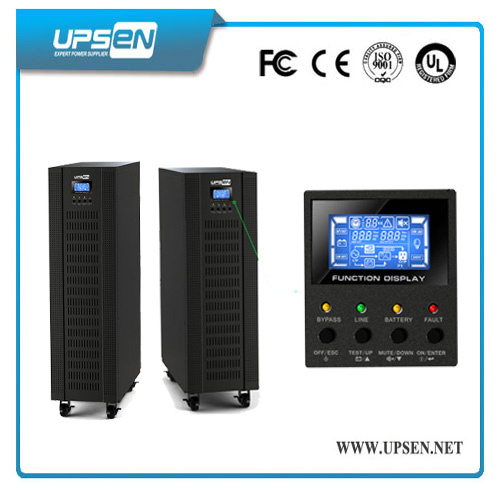

Online UPS 10Kva 20Kva 30Kva for Servers and Data Rooms
Model: High Frequency Online UPS View Star Series 10K-30Kva (3ph in/3ph out)
Key Features
1:Output power factor 0.8
2:Generator compatible
3:Adjustable battery numbers
4:Maintenance bypass available
5:Optional N+X parallel redundancy
6:Auto alarm and auto checking feature
7:50Hz/60Hz frequency converter mode
8:ECO mode operation for energy saving (ECO)
9:DSP technology guarantees high performance
10:Big blue LCD display for the users' convenience
11:Smart RS232 communication with monitoring software
12:True double conversion technology with zero Transfer Time
Technical Specification
| VIEW STAR 3P/3P 10K/15K/20K/30K ONLINE UPS SELECTION GUIDE |
| MODEL | VS33 10K(L) | VS33 15K(L) | VS33 20K(L) | VS33 30K(L) |
| PHASE | 3 phase in / 3 phase out |
| CAPACITY | 10000 VA / 8000W | 15000VA /12000W | 20000VA /16000W | 30000VA / 24000W |
| INPUT |
| Nominal Voltage | 3 x 400 VAC (3Ph+N) |
| Voltage Range | 305-478 VAC (3-phase) @ 100% load
190-520 VAC (3-phase) @ 50% load |
| Frequency Range | 46~54 Hz or 56~64Hz |
| Power Factor | >= 0.99 @ 100% load |
| OUTPUT |
| Output Voltage | 3 x 400 VAC (3Ph+N) |
| AC Voltage Regulation (Batt. Mode) | ± 1% |
| Frequency Range (Synchronized Range) | 46~54Hz or 56~64Hz |
| Frequency Range (Batt. Mode) | 50 Hz ± 0.1 Hz or 60 Hz ± 0.1 Hz |
| Current Crest Ratio | 3:1 (max.) |
| Harmonic Distortion | <= 2 % THD (Linear Load) <= 5 % THD (Non-linear Load) |
| Transfer Time | AC mode to Battery mode | zero |
| Inverter to Bypass | zero |
| Waveform (Batt. Mode) | Pure Sine Wave |
| EFFICIENCY |
| AC Mode | 89% | 89% | 89% | 90% |
| Battery Mode | 86% | 88% | 87% | 89% |
| BATTERY |
| Standard Model | Battery Type | 12 V / 9 AH |
| Numbers | 20pcs(18-20 adjustable) |
20 pcs
(18-20 adjustable)x 2 strings |
20pcs (18-20adjustable) x 3 strings |
| Typical Recharge Time | 9 hours recover to 90% capacity |
| Charging Current (max.) | 1A | 2A | 2A | 4A |
| Charging Voltage | 273 VDC ± 1%(based on 20 pcs batteries) |
| Long-run Model | Battery Type | Depending on the capacity of external batteries |
| Numbers |
| Charging Current (max.) | 4A | 4A | 4A | 12A |
| Charging Voltage | 273 VDC ± 1%(based on 20 pcs batteries) |
| INDICATORS |
| LCD Panel |
UPS status, Load level, Battery level, Input/Output voltage,
Discharge timer, and Fault conditions |
ALARM |
| Battery Mode | Sounding every 4 seconds |
| Low Battery | Sounding every second |
| Overload | Sounding twice every second |
| Fault | Continuously sounding |
| PHYSICAL |
| Standard Model |
Dimension,
DXWXH(mm)
|
815 x 250 x 826 | 815 x 250 x 826 | 815 x 250 x 826 | 815 x 300 x 1000 |
| Net Weight (kgs) | 109 | 164 | 164 | 233.5 |
| Long-run Model |
Dimension,
DXWXH(mm)
|
592 x 250 x 826 | 592 X 250 X 826 | 592 X 250 X 826 | 815 x 250 x 826 |
| Net Weight (kgs) | 38 | 40 | 40 | 64 |
| ENVIRONMENT |
| Operation Humidity | 0-95 % RH @ 0- 40°C (non-condensing) |
| Noise Level | Less than 60dB @ 1 Meter | Less than 65dB @ 1 Meter |
| MANAGEMENT |
| Smart RS-232/USB |
Supports Windows® 2000/2003/XP/Vista/2008,
Windows® 7/8, Linux, Unix, and MAC |
Optional SNMP | Power management from SNMP manager and web browser |
* L means long-run model
Competitive Advantages:
1: Three Years' warranty for Online UPS, and 1% free UPS or 2% free PCB Boards
2: Good after-sales service, we will be full responsible for any faults caused by our side
3: Professional experience in power field more than 10 years
4: Professional technical support before and after sales
5: Timely response, fast delivery time and flexible operations to satisfy any customers' special requests.
6: Free OEM & ODM Service
7: Competitive price, quality and mature products
