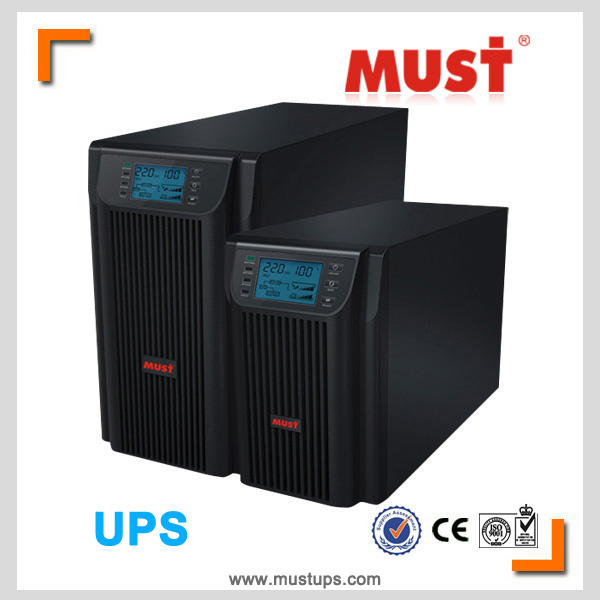

Online UPS 2000va 1600W Inside Batteries

Name: Online UPS 2000va 1600W Inside Batteries
Brand: all-electronics-online.com
SKU: 746885185
Availability: InStock
Rating: 4.9 (123 reviews)

Price:	US $ 200/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	EH52-2000VA
Markets:	Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Power Factor:	0.8
Input Voltage:	110-300VAC
Output Voltage:	220VAC+/-1%
Input Frequency:	40-70Hz
Output Frequency:	50/60 Auto
Support Motor Load:	Yes
Support Generator:	Yes
Output Voltage Types:	208/220/230/240VAC Adjustable by Client Hand
Phase:	Single Phase
Type:	On-line
Protection:	Overvoltage
Brand:	Must or OEM

Product Description

True on-line double conversion technology with advanced microprocessor control
Wide input voltage range with high frequency technology
Zero transfer time
Protection against all type of power problems
Self test while start of the UPS
Site wiring fault warning
On-battery power-on function
Smart RS232 communication interface optional
Intelligent slot available
Sealed acid battery, free-maintenance battery

Model	HC1K	HC1K(S)	HC2K	HC2K(S)	HC3K	HC3K(S)
CAPACITY	1000 VA/800 W		2000 VA/1600 W		3000 VA/2400 W
INPUT
Phase	Single phase
Voltage Range	145~ 275VAC/110~300VAC
Frequency Range	40 Hz ~ 70 Hz; 50/60Hz Autoadaptation
Power Factor	≥0.99
OUTPUT
Voltage Range	220*(1±1%)VAC
Frequency Range	Main Mode: (47 ~ 52.8Hz) 50Hz Battery Mode: 50 Hz ± 0.2 Hz or 60 Hz ± 0.3 Hz
	(57 ~ 62.8Hz) 60Hz
	Synchronized Range
Current Crest Ratio	3:1
Power Factor	0.8
Output Waveform	Pure Sine Wave
Outlet	IEC*4		IEC*4		IEC*3+Terminal
TRANSFER TIME
AC to DC	Zero
Inverter to Bypass	<4 ms (Typical)
INDICATORS
LED Panel	Load/ Battery Capacity/ Main Mode/ Bypass Mode/ Fault
LCD Panel	Load/ Battery/ Input/ Output/Operation Mode
ENVIRONMENT
Operating Environment	0- 40°C
Humidity	20-90 % (non-condensing)
Noise Level	< 60dB @ 1 Meter
Temperature	-25°C - 55°C(no battery)
OTHER
Protection	Load<110%, Keeping working; 110%1min; 130% Immediately
Efficiency	Up to 90%

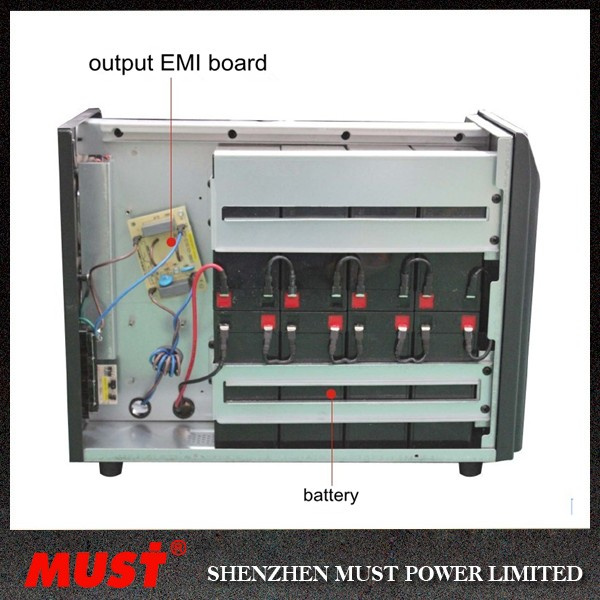

Battery Inbuilt	2pcs*12V/7.2AH		6pcs*12V/7.2AH
Battery DC Voltage	DC24V/36V		DC72V/96V
PHYSICAL
Dimension DWH(mm)	400 X145 X 220		460 X 192 X 348		460 X 192 X 348
Net Weight(kgs)	10.75	7.5	27.5	15	28.5	16
MANAGEMENT
Smart RS-232/USB	Supports Windows®98/2000/2003/XP/Vista/2008,Windows®7,Linux,and MAC
Optional SNMP	Power management from SNMP manager and web browser
* Product Specifications are subject to change without further notice.

Shenzhen Must Power Limited established in 2010, with the headquarter in Hongkong, which is a professional hi-tech enterprise specialized in UPS, Power Inverter, Solar Power, VRLA Battery development, manufacturing, sales and after-service.

Our comprehensive product lines include:
Off-line UPS, line interactive UPS, On-line UPS, Solar inverter, Power inverters, Stabilizers and Solar battery.

Most of products from MUST applied with CE, FCC certificates. The main markets are Ukraine, Russia, Vietnam, Thailand, Pakistan, India, etc. Must Power Limited is one of the authorized suppliers for China Citic Bank, Ministry of Information Industry of China, Ministry of Power Industry of China, Ministry of Transportations of China.

With an excellent R & D team formed by over 30 engineers and a skilled, dedicated workforce, together 10, 000 square meter in-house manufacturing facilities in Guangdong China, Shenzhen Must Power Limited has innovated, developed and improved the products to meet the demands of customers and keep pace with changing demands of the industries. With 'close to customer' notion, we have aligned most of its resources to support our Original Equipment Manufacturer (OEM) customers, and work with our customers as power partners. Our mission is to be the best supplier of power solutions, and to accomplish this, we will continue to tailor products for market needs while maintaining high quality, integrated customer service and prompt delivery.
