| Prod Model: |
GH11 2kva(L) |
| Transfer Time: |
0 Ms |
| Power Efficiency: |
0.8 |
| Battery Type: |
Sealed Lead Acid Maintenance-Free Battery |
| Warranty: |
12 Months |
| Phase: |
Single Phase |
| Type: |
On-line |
| Protection: |
Over Voltage / Short Circuit |
| Application: |
Computer / Server |
Product Description

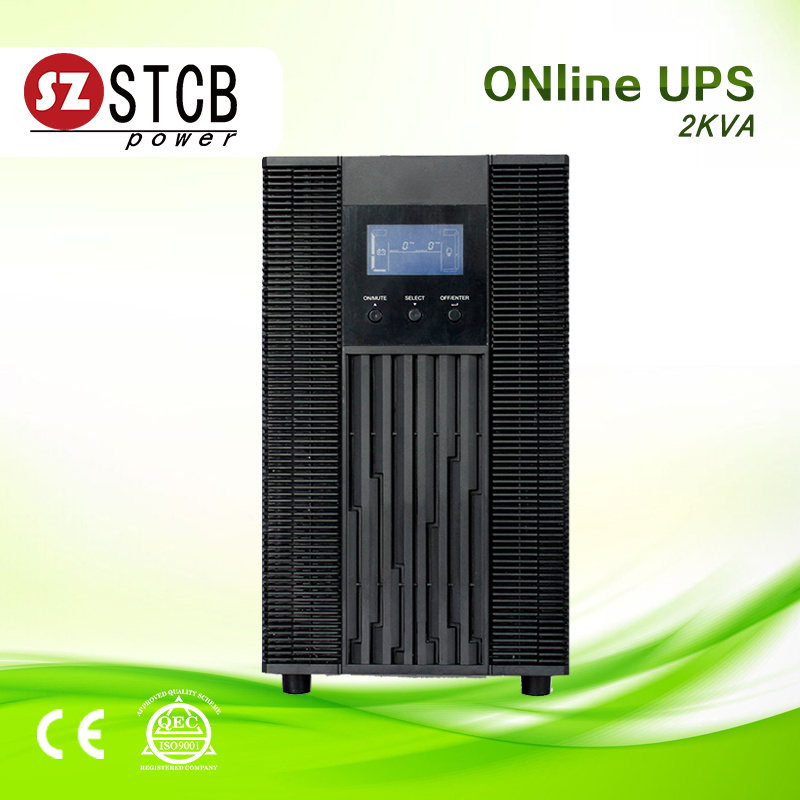

Online UPS 2kVA 110V 220V with & Without Battery price Main Features:1. True double-conversion
2. Microprocessor control optimizes reliability
3. Input power factor correction
4. Output power factor 0.8
5. Wide input voltage (110 v- 300 v)
6. Converter mode available
7. ECO mode for energy saving
8. Generator compatible
9. Charger capacity expansion to 6A for long-run models
10. Smart SNMP works well with either USB or RS-232 together
11. Comprehensive display allows easy monitoring and access of UPS status
Specification:| MODEL | GH11-1K (L) | GH11-2K (L) | GH11-3K (L) |
| PHASE | Single phase with ground |
| CAPACITY | 1000 VA / 800 W | 2000 VA / 1600 W | 3000 VA / 2400 W |
| INPUT |
| Nominal Voltage | 100/110/115/120/127VAC or 200/208/220/230/240VAC |
| Input Voltage Range | 55-145 VAC or 110-300 VAC |
| Frequency Range | 40Hz ~ 70 Hz |
| Power Factor | ≥ 0.99 @ Nominal Voltage (100% load) |
| OUTPUT |
| Output Voltage | 100/110/115/120/127VAC or 200/208/220/230/240VAC |
| Voltage Regulation | ± 1% |
Frequency Range
(Synchronized Range) | 47~ 53 Hz or 57 ~ 63 Hz |
| Frequency Range (Batt. Mode) | 50 Hz or 60Hz ± 0.1 Hz |
| Current Crest Ratio | 3:1 |
| Harmonic Distortion | ≤ 3 % THD (Linear Load)
≤ 6 % THD (Non-linear Load) |
| Transfer Time | AC to DC | Zero |
| Inverter to Bypass | 4 ms (Typical) |
| Waveform (Batt. Mode) | Pure Sinewave |
| EFFICIENCY |
| To AC Mode | 88% | 89% | 90% |
| To Battery Mode | 83% | 87% | 88% |
| BATTERY |
| Standard model | Battery type | 12V9AH |
| Quantity | 2 | 4 | 6 |
| Standard charging time | 4 hours charge to 90% |
| Maximum charge current | 1A |
| Charging voltage | 27.3VDC±1% | 82.1VDC±1% |
| Long-run Model | Battery Type | Depending on the capacity of external batteries |
| Numbers | 3 | 6 | 8 |
| Charging Current (max.) | 1.0A/2.0A/4.0A/6.0 A |
| Charging Voltage | 41.0VDC ± 1% | 82.1 VDC ±1% | 109.4VDC ±1% |
| INDICATORS |
| LCD | Load level, Battery level, AC mode, Battery mode,
Bypass mode, and Fault indicators |
| ALARM |
| Battery Mode | Sounding every 4 seconds |
| Low Battery | Sounding every second |
| Overload | Sounding twice every second |
| Fault | Continously sounding |
| PHYSICAL |
| Standard models | Dimension | 397*145*220 | 419*190*318 |
| Net weight(kgs) | 9.3 | 18.6 | 30 |
| Long-run Model | Dimension | 282 x 145 x 220 | 397 X 145 X 220 |
| Net Weight (kgs) | 4.6 | 6.8 | 7.4 |
| ENVIRONMENT |
| Humidity | 20-90 % RH @ 0- 40°C (non-condensing) |
| Noise Level | Less than 50dBA @ 1 Meter |
| MANAGEMENT |
| Smart RS-232/USB | Supports Windows 2000/2003/XP/Vista/2008/7/8, Linux, Unix, and MAC |
| Optional SNMP | Power management from SNMP manager and web browser |
* Product specifications are subject to change without further notice

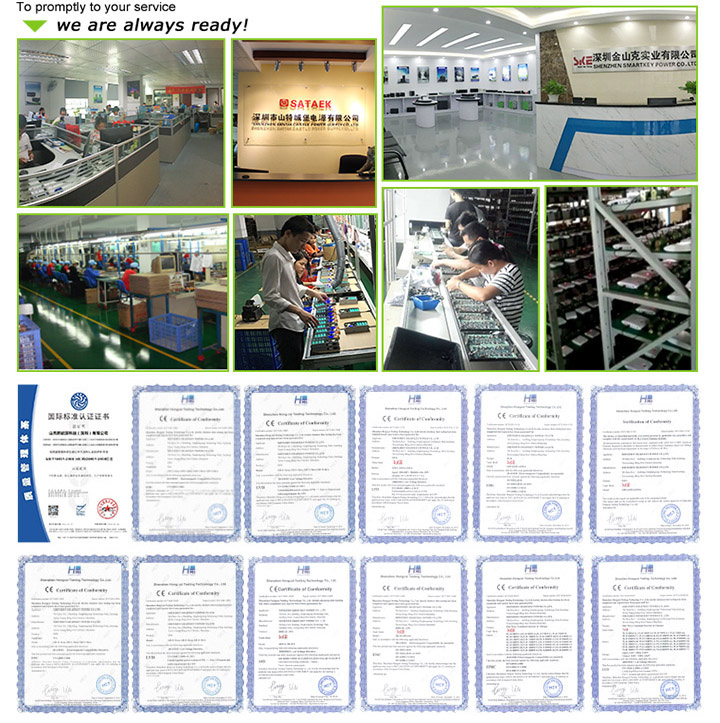

Company and factory:
Project and Trade show:
Our services:
1. OEM&ODM services acceptable.
2. 1% pcb board provided .
3. Lots of cooperated agent for shipping by sea or by air.
4. 1year warrenty , if it is quality problem , we will provide the parts for free .
Q1: Why you should choose us?
---16 years UPS experiences
---Professional team for both oversea and domestic market
--UPS provider of SCO meeting 2015 and Shanghai-Kunming high-speed railway project
---Qualified product plus competitable prices
---Delivery in time
---Sincerely services
Q2: How is your after-sale service?
---We provide 12-24 months warranty since the delivery date and free maintenance /
replacement during warranty period.
Q3: What kind of certification you have?
---ISO9000, CE,ROHS,UL,and so on
Our products could pass different labor testing according to different countries' requirements.
Q4: Delivery time:
---Standard products could be delivered within 15 days; customized products could be
developed within 45-60days.
