| Prod Model: |
DX2KVAUPS |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| OEM: |
Welcome |
| Frequency: |
50Hz/60V |
| Input Voltage: |
110V/220V |
| Certificate: |
CE |
| Warranty: |
1 Year |
| Wattage: |
1600W |
| Weight: |
26kg |
| Size: |
419X190X318mm |
| Color: |
Black |
| Multi-Protection: |
Yes |
| Phase: |
Single Phase |
| Protection: |
Short Circuit |
| Type: |
off Line |
| Application: |
All |
| Brand: |
Doxin |
Product Description

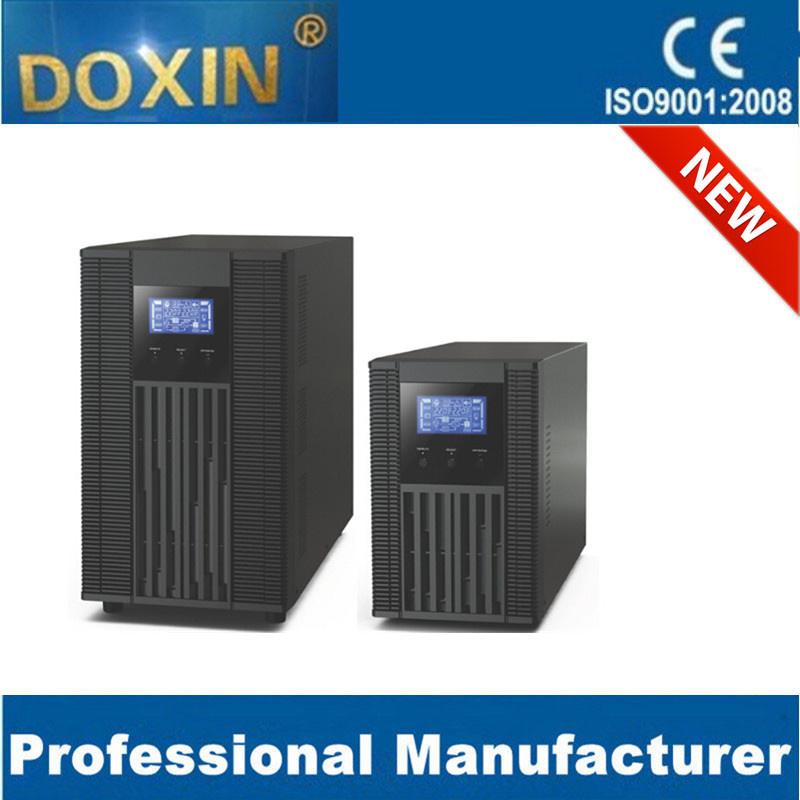

Online UPS 2KVA uninterrupted power supply for home use
Main Features:
1. Large blue ground LCD digital display shows Detailed Real-Time UPS Status and parameters.
2. Set Output voltage, Frequency parameter and bypass function on the display.
3. Advanced MCU microprocessor control technology, ensure long life reliability.
4. Wide input voltage range, Zero transfer time.
5. Excellent Protection against over voltage, over load, over current, over charge and so on.
6. Input L and N lines reverse wiring detection, Auto start when AC back.
7. DC start function, Input PFC revise function.
8. Humanization bypass output can be adjustable.
9. Smart RS232 communication with monitoring software.
10. Intelligent slot available for AS-400 Dry contact and SNMP card Remote control.
11. Strong antijamming capability.
12. Available to work with generators.
13. Lightning, surge, short circuit, Network/fax/modem surge protection.
14. Corresponding plug and sockets to different countries.
1.Sine-wave output
True sine-wave output with less than 3% THD
2.Double conversion design
Zero transfer/complete isolation of input AC
3.UPS monitoring software
Powerful true RS232 communication via the enclosed software manages and safely shutdown operating systems.
4.Network RJ45/11 protection
Completed powerful network and phone line surge protection
5.AC surge suppressor
Powerful multi-stage surge components exceed IEEE requirements.
6.SNMP slot option
Allows for remote monitoring and control via www
7.Sleep mode
Worry free battery management. The unit turns itself off after ten seconds to conserve battery power when no power needs are detected.
8.Battery level indicators
LED's indicate battery levels
9.Load sensing
The incorporated LED load indicators allow IT professionals to manage backup time and balance power loads.
10.Low battery indicators
The low battery level indicator will warn of eminent UPS shutdown two full minutes before unit shuts down.
11.Replace battery indicators
A preventative measure that indicates when batteries must be replaced to prevent server crashes.
| | | |
Power Capacity (VA/W) | 1KVA/0.8KW | 2KVA/1.6KW | 3KVA/2.1KW |
| Input |
| Normal Voltage | 110VAC/220VAC |
| Voltage Range | 60~138VAC/115~300VAC |
| Frequency Range | 46~54Hz(default),user adjustable within 40~60Hz |
| Power Factor | 0.97 |
| Output |
| Voltage Range | 110VAC/220VAC±2% |
| Frequency Range | 46-54Hz or 50Hz±0.2Hz(Line mode),50Hz±0.2Hz(Battery mode) |
| Waveform | Pure sine wave |
| Distortion | 3% | 4% |
| Overload Capacity | 108%~150% for 30 seconds,±150% for 300ms |
| Current Crest Ratio | 3:1 Max |
| Battery |
| Type | Sealed Lead-Acid Maintenance free battery |
| Recharge Time | 5hrs to 90% of capacity after full load discharge |
| Transfer Time | 0ms,less than 4ms from inverter to bypass and vice vase |
| LED/LCD Indicators |
| Status | Load lever, battery lever, battery, utility power, inverter, bypass, overload, fault. |
| Audible Alarm |
| | Bypass, on battery mode, battery low, overload, fault |
| Acoustic Noise |
| At 1 meter distance | 45dBA | 50dBA |
| Communications |
| DB-9 Port | RS232 Serial Interface |
| Intelligent Slot | Option: Web power, AS400 Card or Winpower CMC |
| Environmental |
| Operating Temperature | 0~40°C |
| Operating Humidity | 20~90% non-condensing |
| Weight |
| Net(kg) | 14/7.0 | 34/13.5 | 34.5/14 |
| Dimensions |
| W*D*H(mm) | 397*145*220MM | 419x190x318MM |
* Product specifications are subject to change without further notice
