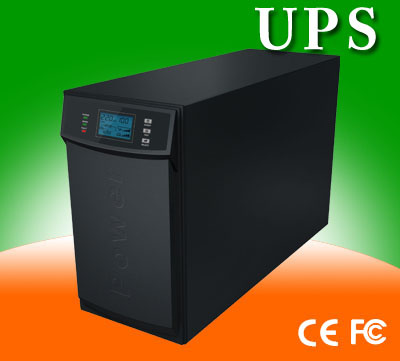

| Prod Model: |
C1KS |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Wave Form: |
Pures Sinewave |
| Battery: |
Lead Acid Free Battery |
| Warrenty: |
One Year |
| Range Of Application: |
Telecom, Sensitive Electronic Equipement |
| Certificate: |
CE |
| Display: |
LED/LCD |
| Transfer Time: |
Zero |
| Software: |
Support |
| Shape: |
Castle |
| Phase: |
Single Phase |
| Type: |
On-line |
| Protection: |
Overvoltage |
Product Description
Features:1. Sine-wave output:
True sine-wave output with less than 3% THD.
2. Double Conversion Design:
Zero transfer/ complete isolation of input AC.
3. UPS Monitoring Software:
Powerful true RS232 communication via the enclosed software
To manage and safely shutdown operating systems.
4. Network RJ45/11 protection:
Complete powerful network and phone line surge protection.
5. AC Surge Suppressor:
Powerful multi-stage surge components that exceed IEEE requirements.
6. SNMP Slot Option:
Allows for remote monitoring and control via.
7. Sleep Mode:
Worry free battery management. The unit turns itself off after ten seconds to conserve battery
Power when no power needs are detected.
8. Battery level indicators:
LED''s indicate battery levels.
9. Load Sensing:
The incorporated LED load indicators allow IT professionals to manage backup time and balance power loads.
10. Low Battery indicators:
The low battery level indicator will warn of eminent UPS shutdown two full minutes before unit shuts down.
11. Replace Battery indicators:
A preventative measure that indicates when batteries must be replaced to prevent server crashes.
body {background: #C0EBC6 !important;}div {background-color: #C0EBC6 !important;}header,nav,table,th,tr,td,dl,ul,li,ol,fieldset,form,h1,h2,h3,h4,h5,h6,pre {background: transparent !important;}* {color: #363636 !important;}a:link,a:link *,a:link:hover,a:link:hover *,a:link:active,a:link:active * {color: #3E3822 !important;}a:visited,a:visited *,a:visited:hover,a:visited:hover *,a:visited:active,a:visited:active * {color: #0060BF !important;}body {background: #C0EBC6 !important;}div {background-color: #C0EBC6 !important;}header,nav,table,th,tr,td,dl,ul,li,ol,fieldset,form,h1,h2,h3,h4,h5,h6,pre {background: transparent !important;}* {color: #363636 !important;}a:link,a:link *,a:link:hover,a:link:hover *,a:link:active,a:link:active * {color: #3E3822 !important;}a:visited,a:visited *,a:visited:hover,a:visited:hover *,a:visited:active,a:visited:active * {color: #0060BF !important;}
Model
|
C1KS
|
C2KS
|
C3KS
|
Rated Power
|
VA/W
|
1kVA / 0.7kW
|
2kVA / 1.4kW
|
3kVA / 2.1kW
|
Input
|
Nominal Voltage
|
220VAC
|
Voltage Range
|
115 ~ 300VAC
|
Frequency Range
|
46 ~ 54Hz(default), user adjustable within 40~60Hz
|
Power Factor
|
0.97
|
Connection
|
IEC320 -10A inlet
|
IEC320 -16A inlet
|
Output
|
Voltage
|
220VAC ± 2%
|
Frequency
|
46~54Hz or 50Hz ± 0.2Hz (Line mode)
50Hz ± 0.2Hz ( Battery mode)
|
Waveform
|
Pure Sine Wave
|
Distortion
|
3%
|
4%
|
Overload Capability
|
108% ~ 150% for 30 sec., ³150% for 300 ms
|
Current Crest Ratio
|
3:1
|
Connections
|
IEC320 -10A *4
|
IEC320 -10A *6
|
IEC320 -10A *3 and
Terminal Block
|
Battery
|
Type
|
Sealed, Maintenance free, Lead-Acid
|
Nominal DC Voltage
|
36VDC
|
96VDC
|
Back-up Time
|
Depends on the capacity of the external battery bank
|
Connection
|
External Battery Socket
|
Bypass
|
Automatic Transfer
|
On overload and UPS failure
|
Before UPS Power-on
|
Default "NO", user adjustable to "YES"
|
Voltage Range
|
80 ~ 264VAC (Default), user adjustable within 80 ~ 286VAC
|
Transfer Time
|
0 ms; less than 4 ms from inverter to bypass and vice versa
|
LED Indicators
|
Status
|
Load level / Battery level, Battery , Utility Power, Inverter, Bypass, Overload, Fault
|
Audible Alarm
|
Bypass, On battery mode, Battery low, Overload, Fault
|
Acoustic Noise
|
At 1 meter distance
|
45 dBA
|
50 dBA
|
Communications
|
DB-9 Port
|
RS-232 Serial Interface
|
Intelligent Slot
|
Options: WebPower, AS400 Card or WinPower CMC
|
Network Surge Protection
|
RJ45 I/O port available for 10 base-T network or Fax/Modem
|
Environmental
|
Operating Temperature
|
0 ~ 40°C
|
Operating Humidity
|
20 ~ 90% non-condensing
|
Weight
|
Net (Kg)
|
7
|
13.5
|
14
|
Dimensions
|
W x D x H (mm)
|
145 x 400 x 220
|
192 x 460 x 348
|
Shenzhen Must Energy Technology Co., Ltd. Established in Shenzhen in 1998, Which is leading manufacturer of power protection produtcs & service solutions including UPS, power inverters, Solar inverters, charge controllers, Batteries, AVR for more than ten years, with a strong R&D team, internal automation equipment design and manufacturing capability, as well as continuous quality improvement, Santakups Electronic Company has become the leading supplier for long backup time power solution in the new world of information technology.
We' Ve kept our defect rate well under 0.5 percent. Logo printing service is available on request.
