Online UPS, Double Conversion UPS, UPS 20K-40KVA
| Price: |
US $ 580-1000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
5/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
EX3320KL~EX3340KL |
| Markets: |
North America,South America,Eastern Europe,Africa,Oceania,Mid East,Western Europe |
| Weight: |
115kg |
| Demension: |
420&643&; 956mm |
| Phase: |
Single Phase |
| Type: |
On-line |
| Protection: |
Overcurrent |
| Brand: |
Zlpower |
Product Description

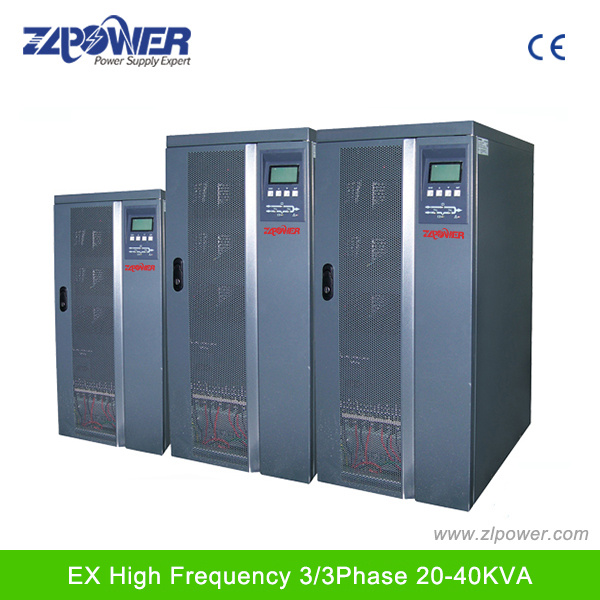

Online UPS, double conversion UPS, UPS 20K-40KVA
Three Phase UPS, online UPS 20k, 30k, 40k
1: Three phase input and three phase output
2: GIBT technology
3: Isolated transformer
4. Share parallel redundancy
5. CE
Key features:
1. N+X parallel redundancy (compatible to battery share in the parallel mode) The maximum of the inbuilt parallel mode is 8 UPS without any other external accessories, which helps the customer to extend the system capacity with low cost.
2. Intelligent management of battery charging and discharging
3. Frontal-board operation and maintenance
4. Twin-channel line input. The UPS provides customer security in power supply with intelligent choice between two-line input or one-line input according to the actual condition.
5. Remote monitoring. Communication interfaces like RS232/RS485, Intelligent Slot are available for the realization of remote management and monitoring. In addition, the optional AS400 card is suitable for the connection of stem point, which enriches the customer's choice out of the monitoring demand
6. UPS with High-efficient DSP chip
7. Excellent performance in industrial environment protection. Just with the standard product, IP21 protection level protecting the machine from the intrusion of solid material with the diameter larger than 12mm or the water drops) is achieved.
Application: Metro, Oil field, Army, Banks, Telecommunication, Power
Plants and so on.
| Online UPS Model | EX3320K | EX3330K | EX3340K | EX3360K | EX3380K |
| Rated Capacity | 20KVA/16KW | 30KVA/24KW | 40KVA/32KW | 60KVA/48KW | 80KVA/64KW |
| Input | Voltage | 210-475VAC |
| Frequency | 40-70Hz |
|
| Phase Line | Three-phase 4 line + earth line |
| THDI | <3% |
| Input Power Factor | >0.99 |
| Twin-channel Line Input | Yes |
| Battery | Type | Valve-regulated lead-acid storage battery |
| Standby Time | Depended by external battery bank |
| Output | Voltage | 380VAC / 220 VAC |
| Frequency | 50/60Hz |
| Phase line | Three-phase 4 line + earth line |
| Rated output power factor | 0.8 |
| Overload Capacity | 125% maintain 10minutes |
| 150% maintain 1minutes |
| Efficiency | Line Input Mode | 93% | 94% |
| BAT Mode | 93% | 94% |
| ECO Mode | 98% |
| Intelligent Speed Control of Fan | yes |
| Display Device | LCD | I/O voltage, current, frequency, BAT voltage, charging current value, discharging current value, fault display, fault, warning |
| LED | The operation state of UPS |
| Warning Devices | Two ways of alerting: BUZZER sound, lamp signal, |
| Communication Interface | RS232, AS400, RS485, Service, EPO, BAT temperature compensation, Intelligent Slot |
| Operation | Temperature | 0-40centi-degree |
| Environment | Humidity | <95% (non condesing) |
| Weight | Net weight(include transformer) | 82Kg/208Kg | 110Kg/275Kg | 114Kg/314Kg | 282Kg | 306Kg |
| Gross weight(include transformer) | 122Kg/248Kg | 160Kg/325Kg | 164Kg/364Kg | 356Kg | 380Kg |
| Size L*W*H(mm) | 643×420×925 | 710×470×1150 | 800×600×1850 |
About ZLPOWER
Founded in 2007, Shenzhen ZLPOWER Electronics Co., Ltd. (ZLPOWER for short) is a key hi-tech enterprise in state "Torch Plan, " integrating science, industry, trade, and investment into a whole. It has registered capital of RMB 10million, covering a floor area of 2000sq. M, and owning assets of RMB 30 million.
As a large-scale enterprise group with total assets exceeding RMB 30 million, it currently employs more than 300 staff, operates R & D institutions, 10 products lines, and 8 overseas branches and offices for sales and service.
Also as a professional uninterruptible power supply manufacturer in Shenzhen, China, ZLPOWER mainly produce high frequency online UPS, computer PC UPS, rack mount online UPS, low frequency Industry three phase UPS, UPS Inverter, solar inverter, solar charger controller, Solar/UPS Battery and other related products.
In ZLPOWER, we are strictly on quality inspections. We implement strict IOC, IPQC, FQC, OQC, QA, and other quality control measures in every process according to ISO9001, including to raw materials selection, production, package, and shipment.
Thus, we are ISO9001: 2008 and SGS certificated, and all our UPS, Inverter power supply products have been approved by CE (LVD/EMC), UL tests. As a result, they are popular among our customers from Italy, Germany, South Africa, Egypt, Mozambique, Nigeria, UAE, Ukraine, Russia, Uzbekistan, Philippines, Chili, Peru, Brazil, Mexico and more.
ZLPOWER is looking for agent worldwide to distribute our quality UPS system, Inverter power and solar products to their local markets. Any interests please welcome to contact us today and look for best power solution.
