| Prod Model: |
EH5000 Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Voltage Range: |
145-280VAC |
| Frequency Range: |
46-54Hz/ 56-64Hz |
| Output Crest Ratio: |
3: 1 |
| Output Range: |
220VAC/230VAC/240VAC |
| Output Wave: |
Pure Sine Wave |
| Tech: |
IGBT |
| Type: |
On-line |
| Phase: |
3 Phase Input 1 Phase Output |
| Protection: |
Black out |
| Brand: |
Must or OEM |
Product Description

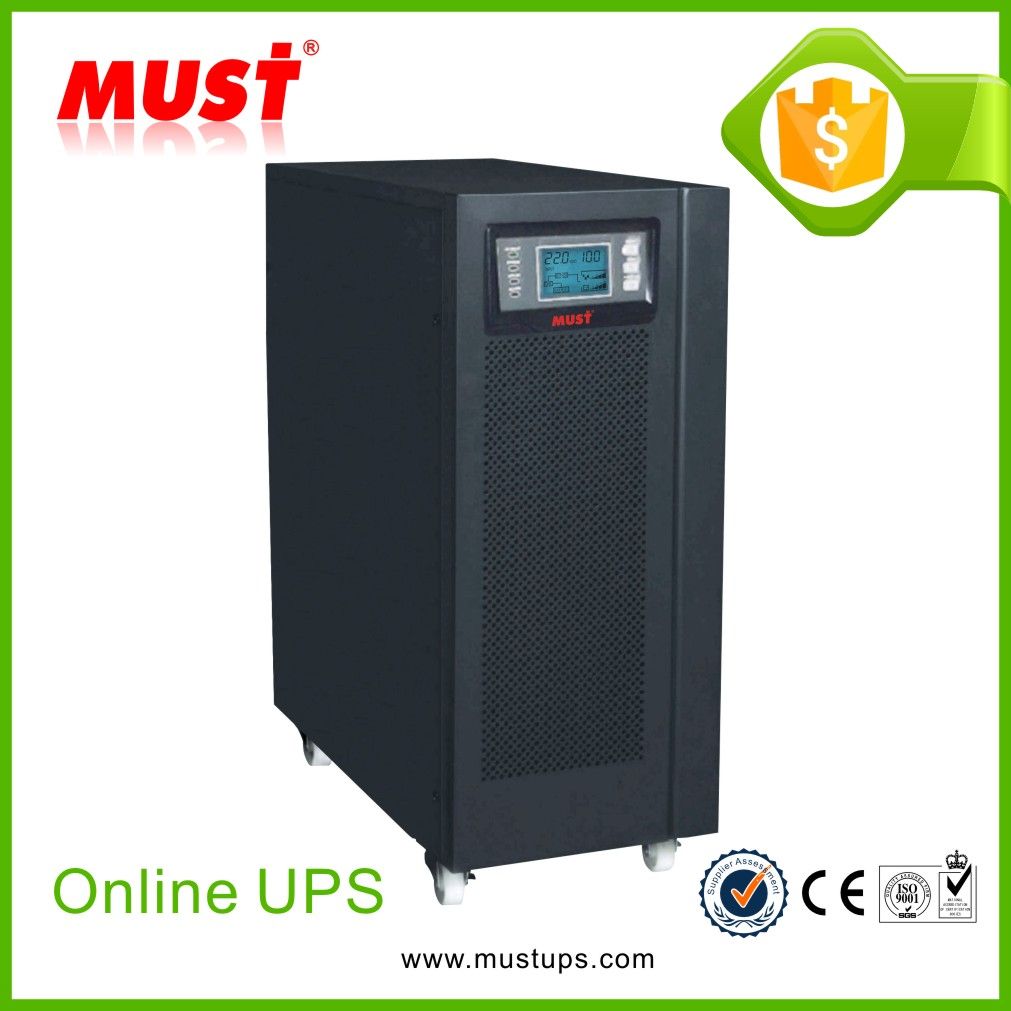

ONLINE UPS Power Supply 6-20kVA Pure Sine Wave UPS
1. True on-line double conversion technology with advanced microprocessor control ONLINE UPS.
2. Wide input voltage range with high frequency technology ONLINE UPS.
3. Zero transfer time ONLINE UPS.
4. Protection against all type of power problems
5. Self test while start of the ONLINE UPS.
6. Site wiring fault warning ONLINE UPS.
7. On-battery power-on function
8. Smart RS232 communication interface
9. Intelligent slot available ONLINE UPS.
10. Sealed acid battery, free-maintenance battery
11. True Regenerative online Uninterruptible Power Supply Design ONLINE UPS.
| Model | EH5000-H6K | EH5000-H6KS | EH5000-H10K | EH5000-H10KS |
| CAPACITY | 6000 VA / 4200 W | 10000 VA / 7000 W |
| INPUT |
| Voltage Range | Low Line Transfer | 176 VAC @ 100% load / 110 VAC @ 50% load |
| Low Line Comeback | 186 VAC @ 100% load / 120 VAC @ 50% load |
| High Line Transfer | 300 VAC |
High Line
Comeback | 290 VAC |
| Frequency Range | 46~54 Hz or 56~64 Hz |
| Phase | Single phase with ground |
| Power Factor | ≥ 0.99 @ 100% load |
| OUTPUT |
| AC Voltage Regulation (Bat. Mode) | ± 1 % |
Frequency Range
(Synchronized Range) | 46~54 Hz or 56~64 Hz |
| Frequency Range (Bat. Mode) | 50 Hz ± 0.1 Hz or 60 Hz ± 0.1 Hz |
| Current Crest Ratio | 3: 1 |
| Harmonic Distortion | < = 3 % THD (Linear Load)/< = 6 % THD(Non-linear Load) |
| Transfer Time | AC to DC | Zero |
| Inverter to Bypass | Zero |
| Waveform (Bat. Mode) | Pure Sine Wave |
| EFFICIENCY |
| To AC Mode | 89% |
| To Battery Mode | 88% |
| BATTERY |
| Battery Type | 12 V / 7 AH | Depending on applications | 12 V / 9 AH | Depending on applications |
| Numbers | 20 | 18 - 20 | 20 | 18-20 |
| Typical Recharge Time | 7 hours recover to 90% capacity | Depending on battery capacity | 9 hours recover to 90% capacity | Depending on battery capacity |
| Charging Current (max. ) | 1.0 A | 4.0 A | 1.0 A | 4.0 A |
| Charging Voltage | 273 VDC | 273 VDC | 273 VDC | 273 VDC |
| INDICATORS |
| LCD Panel | UPS status, Load level, Battery level, Input/Output voltage, Discharge timer, and Fault conditions |
| LED Display | Sixteen LEDs indicating UPS status, Load level, Battery level, overload, fault, and programmable outlet |
| ALARM |
| Battery Mode | Sounding every 4 seconds |
| Low Battery | Sounding every second |
| Overload | Sounding twice every second |
| Fault | Continuously sounding |
| PHYSICAL |
| Dimension, D X W X H (mm) | 592 X 250 X 576 |
| Net Weight (kgs) | 81 | 25 | 83 | 27 |
| OPERATING ENVIRONMENT |
| Humidity | 20-90 % RH @ 0- 40° C (non-condensing) |
| Noise Level | Less than 55dB @ 1 Meter | Less than 58dB @ 1 Meter |
| CMANAGEMENT |
| Smart RS-232/USB | Supports Windows® 98/2000/2003/XP/Vista/2008, Windows® 7, Linux, and MAC |
| Optional SNMP | Power management from SNMP manager and web browser |
Shenzhen Must Power Limited established in 2010, with the headquarter in Hongkong, which is a professional hi-tech enterprise specialized in UPS, Power Inverter, Solar Power, VRLA Battery development, manufacturing, sales and after-service.
Our comprehensive product lines include:
Off-line UPS, line interactive UPS, On-line UPS, Solar inverter, Power inverters, Stabilizers and Solar battery.
Most of products from MUST applied with CE, FCC certificates. The main markets are Ukraine, Russia, Vietnam, Thailand, Pakistan, India, etc. Must Power Limited is one of the authorized suppliers for China Citic Bank, Ministry of Information Industry of China, Ministry of Power Industry of China, Ministry of Transportations of China.
With an excellent R & D team formed by over 30 engineers and a skilled, dedicated workforce, together 10, 000 square meter in-house manufacturing facilities in Guangdong China, Shenzhen Must Power Limited has innovated, developed and improved the products to meet the demands of customers and keep pace with changing demands of the industries. With 'close to customer' notion, we have aligned most of its resources to support our Original Equipment Manufacturer (OEM) customers, and work with our customers as power partners. Our mission is to be the best supplier of power solutions, and to accomplish this, we will continue to tailor products for market needs while maintaining high quality, integrated customer service and prompt delivery.
