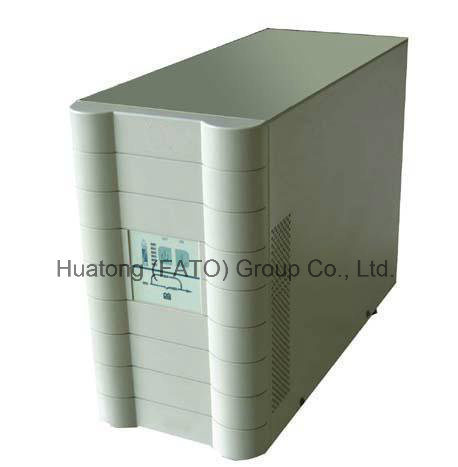

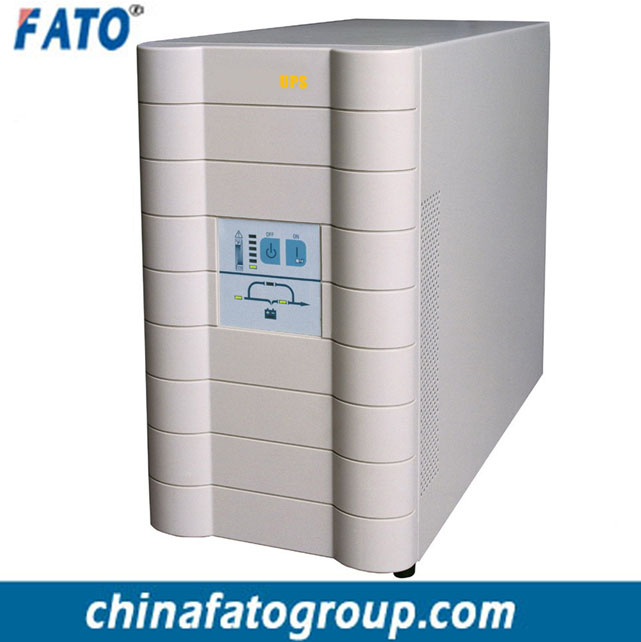

Online UPS/ Pure Sine Wave UPS

Name: Online UPS/ Pure Sine Wave UPS
Brand: all-electronics-online.com
SKU: 643841655
Availability: InStock
Rating: 4.9 (77 reviews)

Price:	Negotiable/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	C series
Type:	On-line

Product Description

Product Description

Features:
1. Sine-wave output:
True sine-wave output with less than 3% THD.
2. Double Conversion Design:
Zero transfer/ complete isolation of input AC.
3. UPS Monitoring Software:
Powerful true RS232 communication via the enclosed software
To manage and safely shutdown operating systems.
4. Network RJ45/11 protection:
Complete powerful network and phone line surge protection.
5. AC Surge Suppressor:
Powerful multi-stage surge components that exceed IEEE requirements.
6. SNMP Slot Option:
7. Sleep Mode:
Worry free battery management. The unit turns itself off after ten seconds to conserve battery
Power when no power needs are detected.
8. Battery level indicators:
LED''s indicate battery levels.
9. Load Sensing:
The incorporated LED load indicators allow IT professionals to manage backup time and balance
Power loads.
10. Low Battery indicators:
The low battery level indicator will warn of eminent UPS shutdown two full minutes before unit shuts
Down.
11. Replace Battery indicators:
A preventative measure that indicates when batteries must be replaced to prevent
Server crashes.

Model	C1KS	C2KS	C3KS
Rated Power	1kVA / 0.7kW	2kVA / 1.4kW	3kVA / 2.1kW
Input Nominal Voltage	220VAC
Voltage Range	115 ~ 300VAC
Frequency Range	46 ~ 54Hz(default), user adjustable within 40~60Hz
Power Factor	0.97
Connection	IEC320 -10A inlet		IEC320 -16A inlet
Output Voltage	220VAC± 2%
Frequency	46~54Hz or 50Hz±0.2Hz (Line mode)		50Hz± 0.2Hz ( Battery mode)
Waveform	Sine Wave
Distortion	3%		4%
Overload Capability	108% ~ 150% for 30 sec		150% for 300 ms
Current Crest Ratio	3: 1
Connections	IEC320 -10A *4	IEC320 -10A *6	IEC320 -10A *3 and Terminal Block
Nominal DC Voltage	36VDC		96VDC
Back-up Time	Depends on the capacity of the external battery bank
Before UPS Power-on	Default "NO", user adjustable to "YES"
Voltage Range	80 ~ 264VAC (Default), user adjustable within 80 ~ 286VAC
Transfer Time	0 ms; Less than 4 ms from inverter to bypass and vice versa
Environmental Operating Temperature	0 ~ 40ºC
Net Weight(Kg)	7		13.5	14
W x D x H (mm)	145 x 400 x 220		192 x 460 x 348
