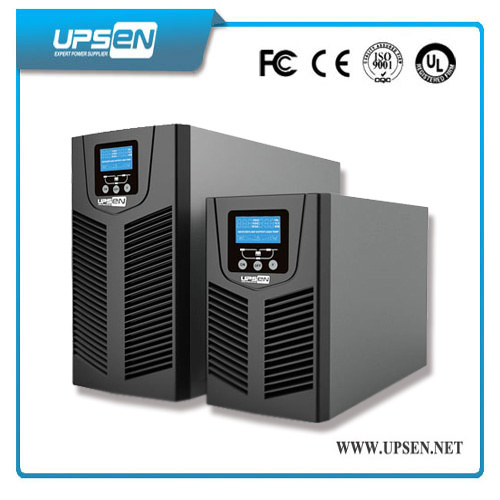

Online UPS with Long Backup Time and Wide Input Voltage

Online UPS with Long Backup Time and Wide Input Voltage
Price: US $ 50-1000/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 5/Piece
Pay Type: L/C,T/T,Western Union,Money Gram
Prod Model: Bright Star Series 1-3Kva
Markets: North America,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color: Black or White
Transfer Time: 0ms
Rated Voltage: 220VAC
Power Factor: 0.8
Phase: Single Phase
Type: On-line
Protection: Short Circuit

Product Description

Product Description

True Online UPS with Long Backup time and Wide input voltage

1: Solar Hybrid Online UPS 1-3kVA  with high quality
2: Solar Hybrid Online UPS 1-3kVA with mpppt charger up to 50Amp
3: Solar Hybrid Online UPS 1-3kVA with Single Phase Input and output


Model
B1KT/G1KRB2KT/G2KRB3KT/G3KR
Rating1KVA/800W2KVA/1600W3KVA/2400W
Main inputInput systemSingle phase & earth ground
 Voltage range(90±5)VAC~ (300±5)VAC
 Power factor≥0.99
 Voltage range of bypass(80±5)VAC~ (286±5)VAC (default: 80VAC~264VAC Could be adjusted by software)
PV inputVoltage range24VDC~150VDC48VDC~150VDC72VDC~150VDC
OutputOutput systemSingle phase & earth ground
 Rated voltage220VAC
 Power factor0.8
 Voltage precision±2%
 Output frequencyNormal mode1.The output frequency synchronizes with the input frequency when the input frequency is in the range of  46 Hz~ 54 Hz
2.The output frequency is 50Hz when the input frequency is not in the range of 46 Hz~ 54 Hz
3.Can be set as 60Hz
  Battery mode
 Inverter overload capacity (Utility power, 25 Centi Degree)105%±5%
125%±5%< Load <150%±5% 25s transfer to bypass
Load > 150%±5%, 300ms transfer to bypass
 Transfer time0ms (Normal mode←→Battery mode)
  <4ms (Normal mode←→Bypass mode)
 Crest factor3:01
BatteryBatteries voltage24VDC48VDC72VDC
 AC charger2A2A2A
 MPPT charger50A50A33A



Shenzhen UPSEN Electronic Co., Ltd. Which is located in south of China, Shenzhen City, close to Pearl of the Orient HK, with beautiful environment and convenient transport.

We are a private high-tech enterprise integrating researching & development, production & operation and technical services as a whole, which is specialized in Electric, Electronic and Energy fields for a long time. Our main products are UPS Power, Inverter Power, Battery Power, Solar&Wind Power. We are dedicated to offer quality power and power solution for Data-center, Telecom, Bank, Hospital, Transportation, Industry, Army, Security, and civil & office area etc. Moreover, we have mastered the core technology of power products through our independent research, we are one of few domestic enterprises which can meet the customers' customized requirements, and provide professional power solutions.

We already past ISO9001 international quality system certification, and established a complete quality system ranging from material source, process, assembling to testing. All our products are with CE Certificate, which exported to more than 30 countries and areas, like Australia, Europe, Africa, North America, South America, the Middle East, central Asia, southeast Asia etc.

We will always offer excellent quality and products to customers. Hope to make Integrity and Double-Win business with you, and to be your professional power supplier and solve your any power problems. We are sure UPSEN can achieve more successes with our efforts and your support.
