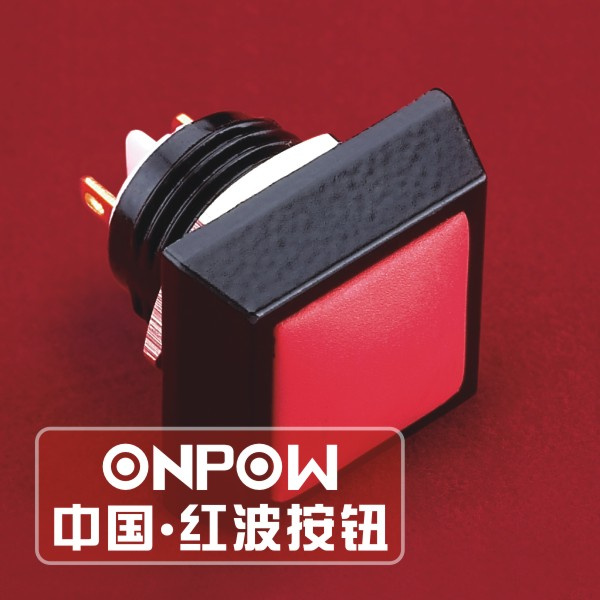

Onpow 12mm Metal Push Button Switch (GQ12S-10/J/A-R, CE, RoHS)

Name: Onpow 12mm Metal Push Button Switch (GQ12S-10/J/A-R, CE, RoHS)
Brand: all-electronics-online.com
SKU: 753212715
Availability: InStock
Rating: 4.8 (64 reviews)

Price:	US $ 1.16-1.29/Piece
Trade Terms:	FOB,EXW
Min Order:	1/Piece
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	GQ12S-10/J/A-R
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	12mm
Type:	Normal Open
Usage:	Reset Button
Kind:	Single-pole on-off Switch

Product Description

Part number: GQ12S-10/J/R-A

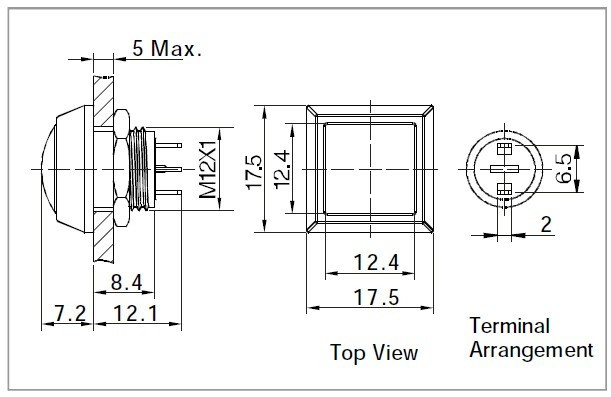

Diameter of installation: 12mm
Switch Rating: 2A/36VDC

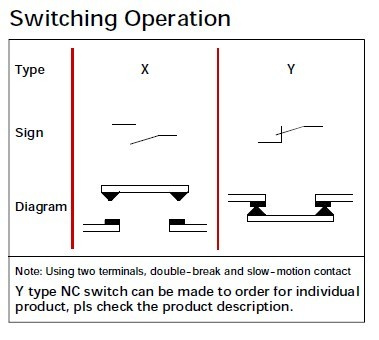

Contact Configuration: 1NO
Operation Type: Momentary
Terminal: Pin terminal
The Crust material: Zn-Al Alloy (A: black anodized)
Material of Actuator: PBT
Head Color: Red (other choices Yellow, Green,white, Orange,Blue, Black)
IP Degree: IP65, IK08

Lamp ratings

Lamp type	LED Lamp(AC/DC)
Rated voltage	AC/DC6V,AC/DC12V,AC/DC24V,AC/DC36V
Rated Current	About 15mA
LED color	Red,Green,Yellow,Orange,Blue,White
Life	About 40,000 hours
Dropping Way	Inner resistance(except for some products)
Lamp	Using AC/DC LED lamp,the terminal is have no difference of anode and cathode
Circuit	Using inner resistance,do not need connect outer resistance
Diagram	GQ12 and GQ16 have no inner resistance,need connect outer resistance

Note:DC LED and other voltage can be made to order.

Specifications

Operating Temperature	-25ºC~+55ºC(no freezing) Keep the air flowing around illuminated on pushbutton
Operating Humidity	48~85%RH(no condensation)
Contact Resistance	≤50mΩ
Insulation Resistance	≥1000MΩ
Dielectric Strength	1500V,AC 50Hz,5 seconds
Vibration Rasistance	50Hz,Amplitude 1.2mm
Shock Rasistance	≥10g
Solder Heat Resistance	320ºC(or 30W soldering iron)no more than 2 seconds

· Pls contact us for BEST PRICE!!

Also we can meet your special requirements:
1. Laser engraving for different symbol or Illuminated symbol.
       2. Different metal body color can be made, like Red, Green,   Yellow, Blue, White, Orange, Golden.
       3.Special design for big diameter up to 35mm or small diameter to 8mm.
       4. We accept different terms of payment, like PAYPAL, ESCROW and so on.
       5.Other special requirement pls contact Mr. Puma (International trade manager)

Puma chen

ONPOW / ONPOW PUSH BUTTON MANUFACTURE CO., LTD.
Address: Sibanqiao Industrial Zone, Xiangyang Town, Yueqing City, Zhejiang Province, China. 325619

Tel: +86-577-62628788     MT: 86-13587700386    //  Fax: +86-577-62623304   http://hongbo.en.alibaba.com

Work time: 8:30-11:30  12:30-17:00(Except Sunday)

Established in 1988 with a registered capital of USD 8.2 million we are one of the leading manufacturers in China specializing in introduced pushbutton switches.

Our pushbutton switches are widely used in many fields. The items include metal anti-vandal push button switchs, signal lamps, pilot lamps, illuminated pushbuttons, selector switches, illuminated selector switches, key lock switches, buzzers, emergency pushbuttons, illuminated emergency pushbuttons, and pushbutton accessories. And the installation sizes involve Φ 8, Φ 10, Φ 12, Φ 16, Φ 22, Φ 25, and Φ 30. Our switches are well designed for use. They are wearable, of long operating life, and easy to install. Besides, the function of quick-break contact and the self-cleaning feature add to the reliability of our products. We value product quality. We have invested special funds in research and development. Our products all meet the standards of ISO 9001, CCC, CE, VDE, and UL.

Our products are exported to the United States, United Kingdom, France, Italy, Russia, Turkey, and Southeast Asian countries, and have helped us build a reputation in the markets.
