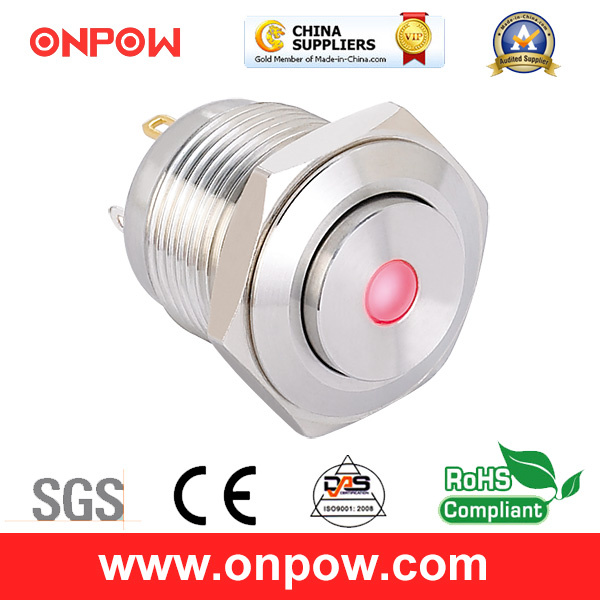

Onpow 16mm Illuminated Push Button Switch (GQ16H-10D/J/R/12V/S, CE, CCC, RoHS)

Name: Onpow 16mm Illuminated Push Button Switch (GQ16H-10D/J/R/12V/S, CE, CCC, RoHS)
Brand: all-electronics-online.com
SKU: 689431345
Availability: InStock
Rating: 4.7 (121 reviews)

Price:	US $ 2.45-2.6/Piece
Trade Terms:	FOB,EXW
Min Order:	1/Piece
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	GQ16H-10D/J/LED color/LED voltage/S
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	16mm
Type:	Normal Open
Usage:	Check Button
Kind:	Single-pole on-off Switch

Product Description

Part number: GQ16H-10D/J/LED color/LED voltage/S

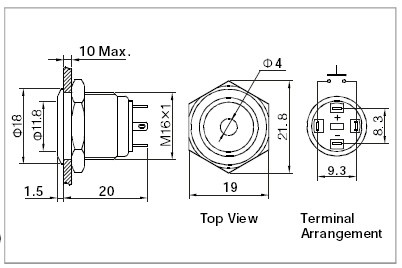

Size: 16mm

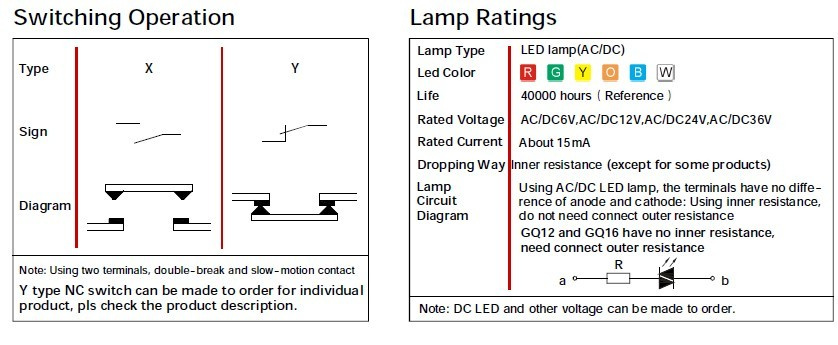

Switch Rating: 2A/36VDC
Contact Configuration: 1NO
Front shape: High Round head
Operation Type: Momentary
Terminal: Pin terminal
Dot illuminated
The Crust material:Stainless steel (S)
LED Color: Red (other choices Blue, Yellow, Green, white, Orange)
LED Voltage: 12V (other choices 6V, 24V, 36V)
IP Degree: IP65, IK08
Terminal type: Pin terminal
Approval:CE RoHS Compliant

· Pls contact us for BEST PRICE!!

Also we can meet your special requirements:
1. Laser engraving for different symbol or Illuminated symbol.
       2. Different metal body color can be made, like Red, Green,   Yellow, Blue, White, Orange, Golden.
       3.Special design for big diameter up to 35mm or small diameter to 8mm.
       4. We accept different terms of payment, like PAYPAL, ESCROW and so on.
       5.Other special requirement pls contact Mr. Puma (International trade manager)

Puma chen

ONPOW / ONPOW PUSH BUTTON MANUFACTURE CO., LTD.
Address: Sibanqiao Industrial Zone, Xiangyang Town, Yueqing City, Zhejiang Province, China. 325619

Tel: +86-577-62628788     MT: 86-13587700386    //  Fax: +86-577-62623304
http://hongbo.en.alibaba.com

Work time: 8:0-11:30  13:00-17:30(Except Sunday)

Established in 1988 with a registered capital of USD 8.2 million we are one of the leading manufacturers in China specializing in introduced pushbutton switches.

Our pushbutton switches are widely used in many fields. The items include metal anti-vandal push button switchs, signal lamps, pilot lamps, illuminated pushbuttons, selector switches, illuminated selector switches, key lock switches, buzzers, emergency pushbuttons, illuminated emergency pushbuttons, and pushbutton accessories. And the installation sizes involve Φ 8, Φ 10, Φ 12, Φ 16, Φ 22, Φ 25, and Φ 30. Our switches are well designed for use. They are wearable, of long operating life, and easy to install. Besides, the function of quick-break contact and the self-cleaning feature add to the reliability of our products. We value product quality. We have invested special funds in research and development. Our products all meet the standards of ISO 9001, CCC, CE, VDE, and UL.

Our products are exported to the United States, United Kingdom, France, Italy, Russia, Turkey, and Southeast Asian countries, and have helped us build a reputation in the markets.
