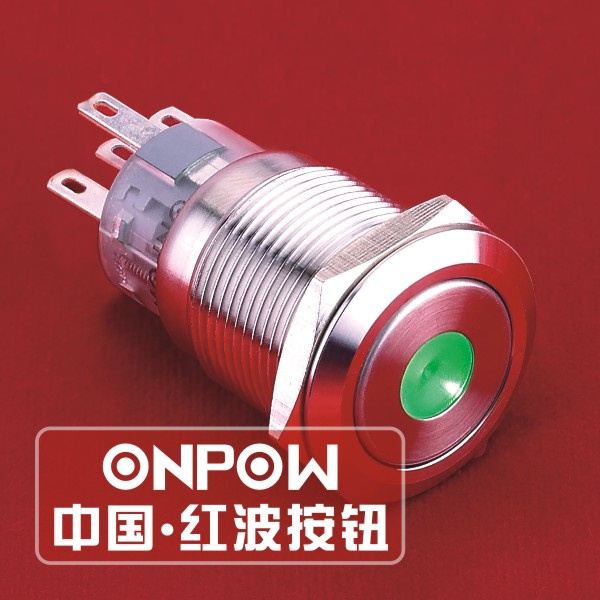

Onpow 19mm Circle Illuminated Spdt Stainless Steel Push Button Switch (LAS1-AGQ-11D//S) (Dia. 19mm) (CE, CCC, RoHS, REECH)

Name: Onpow 19mm Circle Illuminated Spdt Stainless Steel Push Button Switch (LAS1-AGQ-11D//S) (Dia. 19mm) (CE, CCC, RoHS, REECH)
Brand: all-electronics-online.com
SKU: 753302325
Availability: InStock
Rating: 4.4 (31 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	LAS1-AGQ-11D
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	19mm
Usage:	Check Button
Kind:	Single-pole on-off Switch
Type:	1no1nc or 2no2nc

Product Description

Part number: LAS1-AGQ-11D/LED color/LEDvoltage/crust material
Diameter of installation: 19mm
Switch Rating: 5A/250VDC
Contact Configuration: 1NO1NC (11) (other option:2NO2NC(22))
Operation Type: Momentary (other option: Latching(Z))
Front shape: Flat head
Crust material: Stainless steel(S) / Nickel plated brass(N)
Dot illuminated
LED color: Green (other options: Blue, Yellow, Red, Orange, white)
LED Voltage: 12V (other options: 6V, 24V, 110V, 220V)
IP Degree: IP67 and IK09
Terminal type: Pin terminal (2.8× 0.5mm)
Switching: C(single-break fast-motion changeover contact)
Contact resistance: ≤ 50mΩ
Insulation resistance: ≥ 1, 000MΩ
Dielectric intensity: 2, 000V AC
Operating temperature: -20 to +55° C
Mechanical life: 1, 000, 000 cycles
Electrical Life: 50, 000 cycles
Torque: 5 to 14Nm
Operating pressure: 3-5N
Operating travel: 3.1mm
CE, UL, RoHS Compliant
· Pls contact us for BEST PRICE!!

Also we can meet your special requirements:
  1. Laser engraving for different symbol or Illuminated symbol.
       2. Different metal body color can be made, like Red, Green,   Yellow, Blue, White, Orange, Golden.
       3.Special design for big diameter up to 35mm or small diameter to 8mm.
       4. We accept different terms of payment, like PAYPAL, ESCROW and so on.
       5.Other special requirement pls contact Mr. Puma (International trade manager)

Puma chen

ONPOW / ONPOW PUSH BUTTON MANUFACTURE CO., LTD.
Address: Sibanqiao Industrial Zone, Xiangyang Town, Yueqing City, Zhejiang Province, China. 325619

Tel: +86-577-62628788     MT: 86-13587700386    //  Fax: +86-577-62623304

Work time: 8:0-11:30  13:00-17:30(Except Sunday)

Established in 1988 with a registered capital of USD 8.2 million we are one of the leading manufacturers in China specializing in introduced pushbutton switches.

Our pushbutton switches are widely used in many fields. The items include metal anti-vandal push button switchs, signal lamps, pilot lamps, illuminated pushbuttons, selector switches, illuminated selector switches, key lock switches, buzzers, emergency pushbuttons, illuminated emergency pushbuttons, and pushbutton accessories. And the installation sizes involve Φ 8, Φ 10, Φ 12, Φ 16, Φ 22, Φ 25, and Φ 30. Our switches are well designed for use. They are wearable, of long operating life, and easy to install. Besides, the function of quick-break contact and the self-cleaning feature add to the reliability of our products. We value product quality. We have invested special funds in research and development. Our products all meet the standards of ISO 9001, CCC, CE, VDE, and UL.

Our products are exported to the United States, United Kingdom, France, Italy, Russia, Turkey, and Southeast Asian countries, and have helped us build a reputation in the markets.
