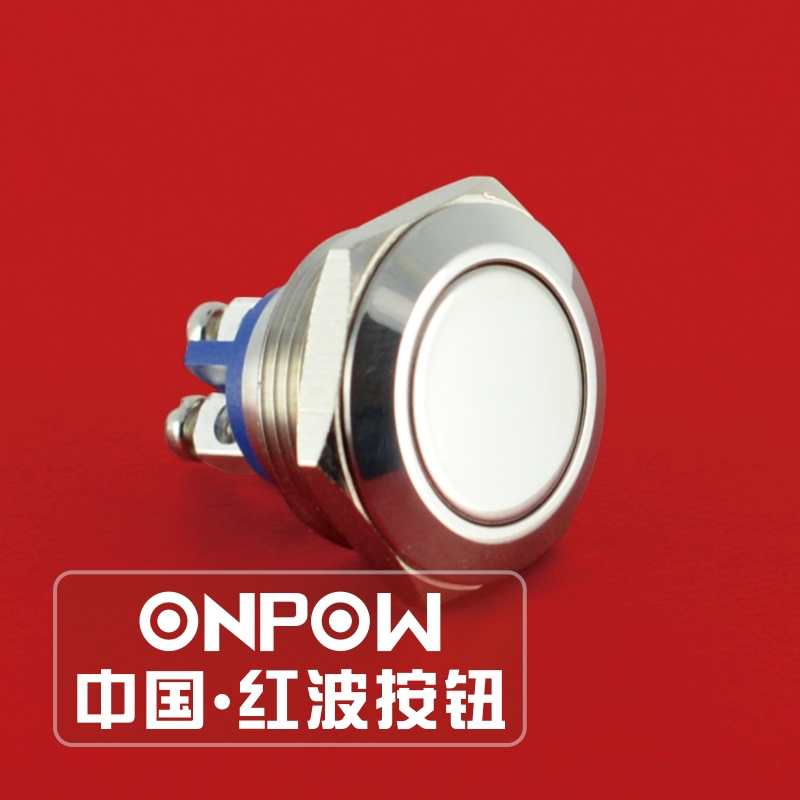

Onpow 19mm Metal Pushbutton Switch- Polished Type (GQ19SF-10/S, CCC, CE, RoHS Compliant)

Name: Onpow 19mm Metal Pushbutton Switch- Polished Type (GQ19SF-10/S, CCC, CE, RoHS Compliant)
Brand: all-electronics-online.com
SKU: 824848145
Availability: InStock
Rating: 4.3 (135 reviews)

Price:	US $ 2.07-2.21/Piece
Min Order:	1/Piece
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	GQ19SF-10/S
Size:	19mm
Type:	Normal Open
Usage:	Check Button
Kind:	Single-pole on-off Switch

Product Description

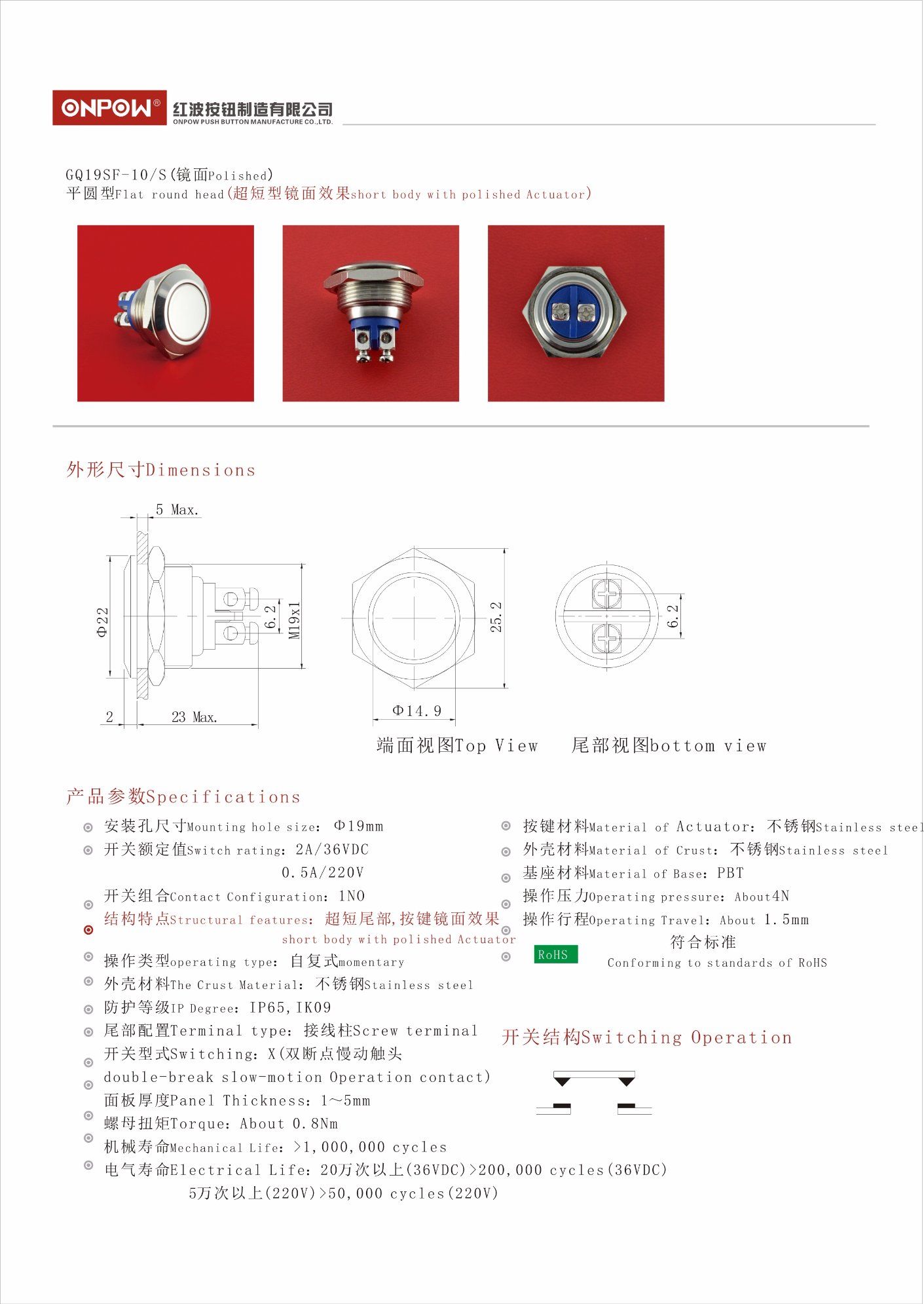

Part number:GQ19SF-10/S(Polished)
Size: Ø 19mm
Switch Rating: 2A/36VDC 0.5A/220V
Front shape: Short body with Polished actuator
Contact configuration: 1NO
Operation type: Momentary
Crust material: Stainless steel (S)
Grades: IP65 and IK09
Terminal type: Screw terminal
Approval:CE,RoHS Compliant

Specifications

Operating Temperature	-25ºC~+55ºC(no freezing) Keep the air flowing around illuminated on pushbutton
Operating Humidity	48~85%RH(no condensation)
Contact Resistance	≤50mΩ
Insulation Resistance	≥1000MΩ
Dielectric Strength	2000V,AC 50Hz,5 seconds
Vibration Rasistance	50Hz,Amplitude 1.2mm
Shock Rasistance	≥10g
Solder Heat Resistance	320ºC(or 30W soldering iron)no more than 2 seconds

· Pls contact us for BEST PRICE!!

Also we can meet your special requirements:
             1. Laser engraving for different symbol or Illuminated symbol.
       2. Different metal body color can be made, like Red, Green,   Yellow, Blue, White, Orange, Golden.
       3.Special design for big diameter up to 35mm or small diameter to 8mm.
       4. We accept different terms of payment, like PAYPAL, ESCROW and so on.

Puma chen

ONPOW / ONPOW PUSH BUTTON MANUFACTURE CO., LTD.
Address: Sibanqiao Industrial Zone, Xiangyang Town, Yueqing City, Zhejiang Province, China. 325619

Tel: +86-577-62628788     MT: 86-13587700386    // Fax: +86-577-62623304

Work time: 8:0-11:30 13:00-17:30(Except Sunday)

Established in 1988 with a registered capital of USD 8.2 million we are one of the leading manufacturers in China specializing in introduced pushbutton switches.

Our pushbutton switches are widely used in many fields. The items include metal anti-vandal push button switchs, signal lamps, pilot lamps, illuminated pushbuttons, selector switches, illuminated selector switches, key lock switches, buzzers, emergency pushbuttons, illuminated emergency pushbuttons, and pushbutton accessories. And the installation sizes involve Φ 8, Φ 10, Φ 12, Φ 16, Φ 22, Φ 25, and Φ 30. Our switches are well designed for use. They are wearable, of long operating life, and easy to install. Besides, the function of quick-break contact and the self-cleaning feature add to the reliability of our products. We value product quality. We have invested special funds in research and development. Our products all meet the standards of ISO 9001, CCC, CE, VDE, and UL.

Our products are exported to the United States, United Kingdom, France, Italy, Russia, Turkey, and Southeast Asian countries, and have helped us build a reputation in the markets.
