| Prod Model: |
LAS1-BGQ-11/S |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
19mm |
| Switch Rating: |
5A/250VDC |
| Contact Configuration: |
1no1nc(11) / 2no2nc(22) / 3no3nc(33) |
| Operation Type: |
Momentary / Latching(Z) |
| Crust Material: |
Stainless Steel (S) |
| IP Degree: |
IP67 and Ik09 |
| Terminal Type: |
Pin Terminal(2.8* 0.5mm) |
| Approval: |
CE, CCC, RoHS Compliant |
| Type: |
Composite |
| Usage: |
Check Button |
| Kind: |
Single-pole on-off Switch |
Product Description

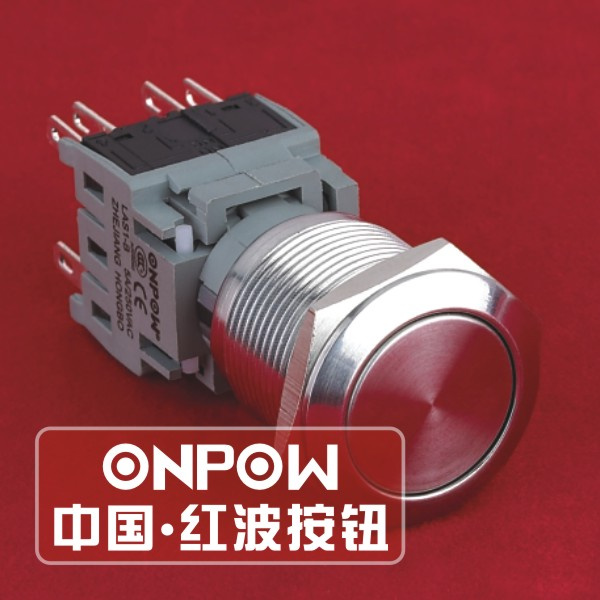

Part number:LAS1-BGQ-11/S
Size: Ø 19mm
Switch Rating: 5A/250VDC
Contact configuration: 1NO1NC(11) (other option 2NO2NC(22) 3NO3NC(33) )
Operation type: Momentary (other option: Latching(Z))
Crust material: Stainless steel (S)
Front shape: Flat Round
IP Degree: IP67 and IK09
Terminal type: Pin Terminal(2.8× 0.5mm)
Approval:CE,CCC,RoHS Compliant
Switch Operation
| Rated Insulation Voltage Ui | 250V |
| Thermal Current lth | 5A |
| Rated voltage | 12V | 24V | 110V | 220V |
| Rated Operation Curremt | AC 50/60Hz | Resistive load | | | 5A | 3A |
| Inductive load | | | 3A | 2A |
| DC | Resistive load | 5A | 5A | 1A | 0.5A |
| Inductive load | 2A | 2A | 0.2A | 0.1A |
| Contact material | Silver Alloy |
Lamp ratings
| Lamp type | LED Lamp(AC/DC) |
| Rated voltage | AC/DC6V,AC/DC12V,AC/DC24V,AC/DC36V,AC/DC110V,AC/DC220V |
| Rated Current | About 15mA |
| LED color | Red,Green,Yellow,Orange,Blue,White |
| Life | About 40,000 hours |
| Dropping Way | Inner resistance(except for some products) |
| Lamp | Using AC/DC LED lamp,the terminal is have no difference of anode and cathode |
| Circuit | Using inner resistance,do not need connect outer resistance |
Note:DC LED and other voltage can be made to order.
· Pls contact us for BEST PRICE!!
Also we can meet your special requirements:
1. Laser engraving for different symbol or Illuminated symbol.
2. Different metal body color can be made, like Red, Green, Yellow, Blue, White, Orange, Golden.
3.Special design for big diameter up to 35mm or small diameter to 8mm.
4. We accept different terms of payment, like PAYPAL, ESCROW and so on.
5.Other special requirement pls contact Mr. Puma (International trade manager)
Puma chen
ONPOW / ONPOW PUSH BUTTON MANUFACTURE CO., LTD.
Address: Sibanqiao Industrial Zone, Xiangyang Town, Yueqing City, Zhejiang Province, China. 325619
Tel: +86-577-62628788 MT: 86-13587700386 // Fax: +86-577-62623304
Website: www.onpow.com http://hongbo.en.alibaba.com
Work time: 8:00-11:30 13:00-17:30(Except Sunday)
· Pls contact us for BEST PRICE!!
Also we can meet your special requirements:
1. Laser engraving for different symbol or Illuminated symbol.
2. Different metal body color can be made, like Red, Green, Yellow, Blue, White, Orange, Golden.
3.Special design for big diameter up to 35mm or small diameter to 8mm.
4. We accept different terms of payment, like PAYPAL, ESCROW and so on.
5.Other special requirement pls contact Mr. Puma (International trade manager)
Puma chen
ONPOW / ONPOW PUSH BUTTON MANUFACTURE Co., Ltd.
Address: Sibanqiao Industrial Zone, Xiangyang Town, Yueqing City, Zhejiang Province, China. 325619
Tel: +86-577-62628788 MT: 86-13587700386 // Fax: +86-577-62623304
Work time: 8:0-11:30 13:00-17:30(Except Sunday)
Established in 1988 with a registered capital of USD 8.2 million we are one of the leading manufacturers in China specializing in introduced pushbutton switches.
Our pushbutton switches are widely used in many fields. The items include metal anti-vandal push button switchs, signal lamps, pilot lamps, illuminated pushbuttons, selector switches, illuminated selector switches, key lock switches, buzzers, emergency pushbuttons, illuminated emergency pushbuttons, and pushbutton accessories. And the installation sizes involve Φ 8, Φ 10, Φ 12, Φ 16, Φ 22, Φ 25, and Φ 30. Our switches are well designed for use. They are wearable, of long operating life, and easy to install. Besides, the function of quick-break contact and the self-cleaning feature add to the reliability of our products. We value product quality. We have invested special funds in research and development. Our products all meet the standards of ISO 9001, CCC, CE, VDE, and UL.
Our products are exported to the United States, United Kingdom, France, Italy, Russia, Turkey, and Southeast Asian countries, and have helped us build a reputation in the markets.
