Onpow 19mm Push Button Switch (LAS1-BGQ-11E/R/12V/S, UL, CE, CCC, RoHS)

Name: Onpow 19mm Push Button Switch (LAS1-BGQ-11E/R/12V/S, UL, CE, CCC, RoHS)
Brand: all-electronics-online.com
SKU: 718711015
Availability: InStock
Rating: 4.8 (110 reviews)

Price:	US $ 5.25-7.48/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	LAS1-BGQ-11E/R/12V/S
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Approval:	UL, Ce, CCC, RoHS
Type:	Composite
Usage:	Check Button
Kind:	Single-pole on-off Switch

Product Description

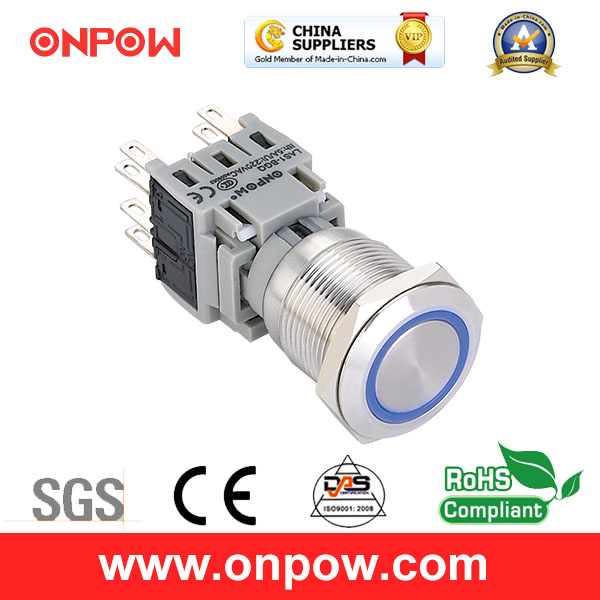

Part number:LAS1-BGQ-11E/R/12V/S
Size: Ø 19mm
Switch Rating: 5A/250VDC
Front shape: Flat Head
Contact configuration: 1NO1NC; 2NO2NC; 3NO3NC
Operation type: Momentary / Latching
Ring illuminated
LED color: Red (other options: Blue, Green, Yellow, Orange, white)
LED voltage: 12V (other options: 6V, 24V, 110V, 220V)
Crust material: Stainless steel (S)
Grades: IP65 and IK09
Terminal type: Pin terminal
Approval:CE, UL, CCC, RoHS Compliant

Switch Operation

Rated Insulation Voltage Ui			250V
Thermal Current lth			5A
Rated voltage			12V	24V	110V	220V
Rated Operation Curremt	AC 50/60Hz	Resistive load			5A	3A
	AC 50/60Hz	Inductive load			3A	2A
	DC	Resistive load	5A	5A	1A	0.5A
	DC	Inductive load	2A	2A	0.2A	0.1A
Contact material			Silver Alloy

Lamp ratings

Lamp type	LED Lamp(AC/DC)
Rated voltage	AC/DC6V,AC/DC12V,AC/DC24V,AC/DC36V,AC/DC110V,AC/DC220V
Rated Current	About 15mA
LED color	Red,Green,Yellow,Orange,Blue,White
Life	About 40,000 hours
Dropping Way	Inner resistance(except for some products)
Lamp	Using AC/DC LED lamp,the terminal is have no difference of anode and cathode
Circuit	Using inner resistance,do not need connect outer resistance

Note:DC LED and other voltage can be made to order.

Switch Operation

Operating Temp	-25ºC~+55ºC(non freezing) Keep the switch air circulating well
Operating Humidity	45~85%RH(non )
Contact Resistance	≤50mΩ
Insulation Resistance	≥1000MΩ
Max.withstanding voltage	2000V,AC50Hz,5s
Vibration resistance	50Hz,amplitude about 1.2mm
Shock resistance	>10g
Solder resistance	320ºC(or 30W soldering iron)no more than 2s

· Pls contact us for BEST PRICE!!

Also we can meet your special requirements:
1. Laser engraving for different symbol or Illuminated symbol.
       2. Different metal body color can be made, like Red, Green,   Yellow, Blue, White, Orange, Golden.
       3.Special design for big diameter up to 35mm or small diameter to 8mm.
       4. We accept different terms of payment, like PAYPAL, ESCROW and so on.
       5.Other special requirement pls contact Mr. Puma (International trade manager)

Puma chen

ONPOW / ONPOW PUSH BUTTON MANUFACTURE CO., LTD.
Address: Sibanqiao Industrial Zone, Xiangyang Town, Yueqing City, Zhejiang Province, China. 325619

Tel: +86-577-62628788     MT: 86-13587700386    //  Fax: +86-577-62623304
Website: www.onpow.com     http://hongbo.en.alibaba.com

Work time: 8:0-11:30  13:00-17:30(Except Sunday)

Established in 1988 with a registered capital of USD 8.2 million we are one of the leading manufacturers in China specializing in introduced pushbutton switches.

Our pushbutton switches are widely used in many fields. The items include metal anti-vandal push button switchs, signal lamps, pilot lamps, illuminated pushbuttons, selector switches, illuminated selector switches, key lock switches, buzzers, emergency pushbuttons, illuminated emergency pushbuttons, and pushbutton accessories. And the installation sizes involve Φ 8, Φ 10, Φ 12, Φ 16, Φ 22, Φ 25, and Φ 30. Our switches are well designed for use. They are wearable, of long operating life, and easy to install. Besides, the function of quick-break contact and the self-cleaning feature add to the reliability of our products. We value product quality. We have invested special funds in research and development. Our products all meet the standards of ISO 9001, CCC, CE, VDE, and UL.

Our products are exported to the United States, United Kingdom, France, Italy, Russia, Turkey, and Southeast Asian countries, and have helped us build a reputation in the markets.
