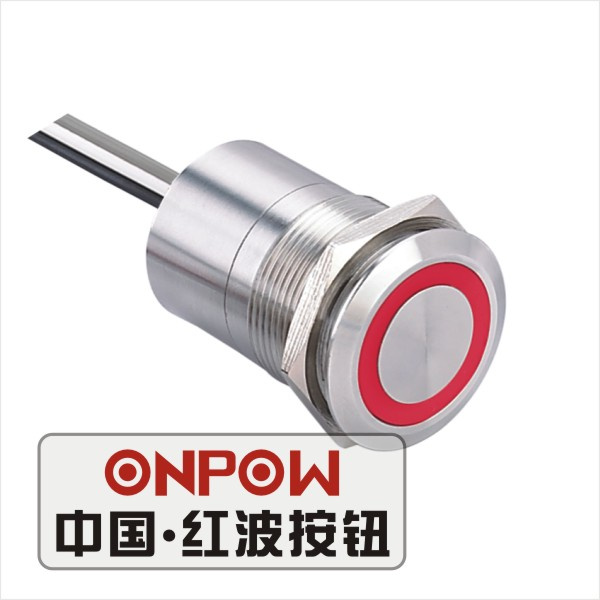

Onpow 22mm Touch Switch with Large Light (TS22D-10/RG/5V/S, CE, RoHS)

Name: Onpow 22mm Touch Switch with Large Light (TS22D-10/RG/5V/S, CE, RoHS)
Brand: all-electronics-online.com
SKU: 808959055
Availability: InStock
Rating: 4.7 (112 reviews)

Price:	US $ 9.23-10.77/Piece
Min Order:	1/Piece
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	TS22D-10/RG/5V/S
Material:	Stainless Steel
Type:	Normal Open
Usage:	Start Button

Product Description

Part number: TS122D-10/LED color/LED voltage/S

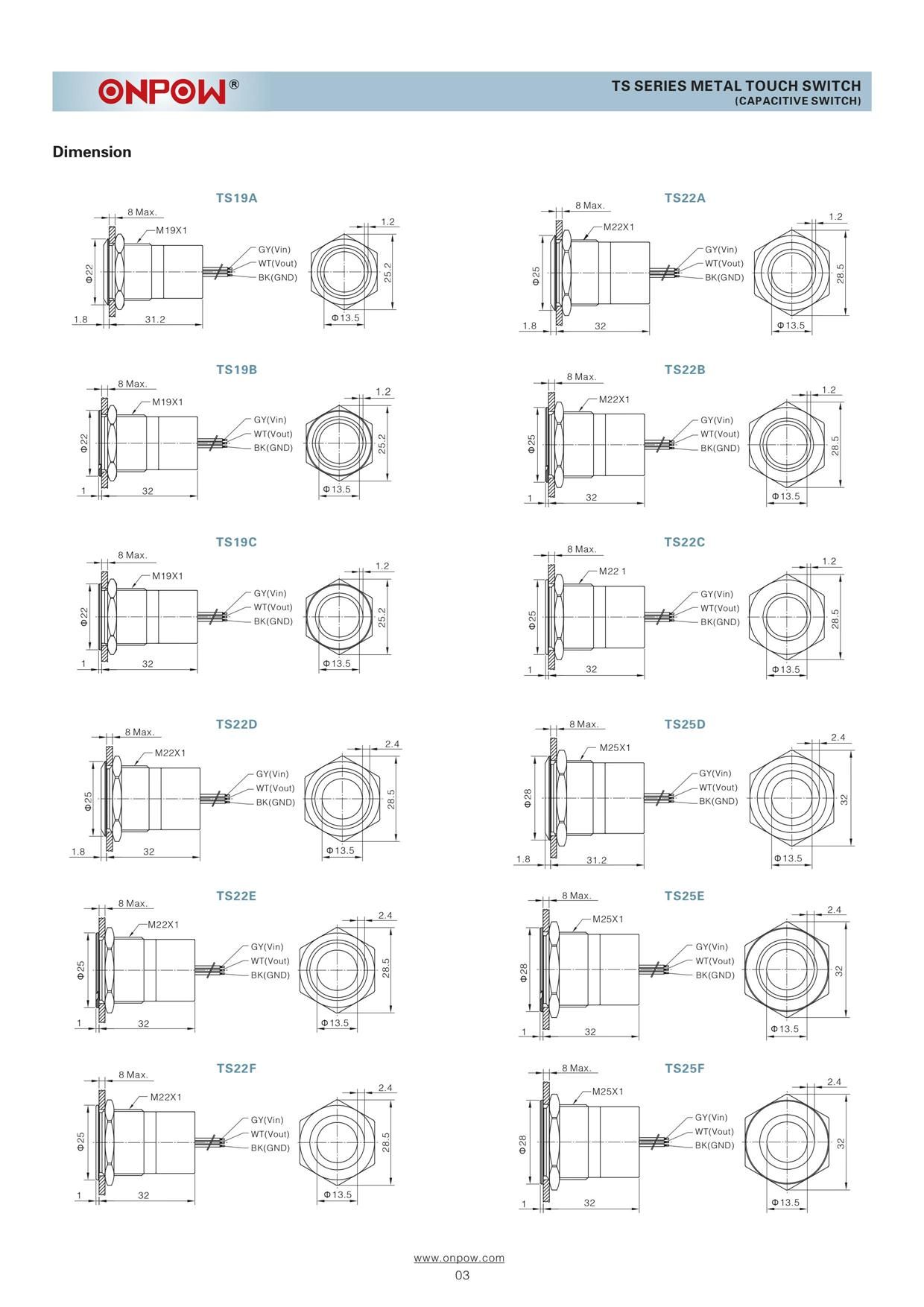

Diameter: 22mm
Type: 1NO Momentary
Large Ring illuminate
LED color: Red, Blue, Green, Orange, white
LED voltage:5V, 12V, 24V
Crust material: Stainless steel Crust (other material and color can be made to order)
IP degree: IP68, IP69K
Approval: CE,CCC,ROHS,

Materials
l Button:stainless steel (other materials are made to order)
l Case:stainless steel (other materials are made to order)
l Wire gauge:UL1430 22AWG
l Ring Diffuser:PC

Electrical and general Specifications

Max.current/volage rating	500mA/24VDC
Operating voltage	5VDC 12VDC 24VDC
Operating force	0 N
Life expectancy	50,000,000 cycles
Contact Resistance	20mΩ
Insulation Resistance	600VDC 10MΩ
Operating temperature	-25~55ºC
IK Degree	IK10(stainless steel)

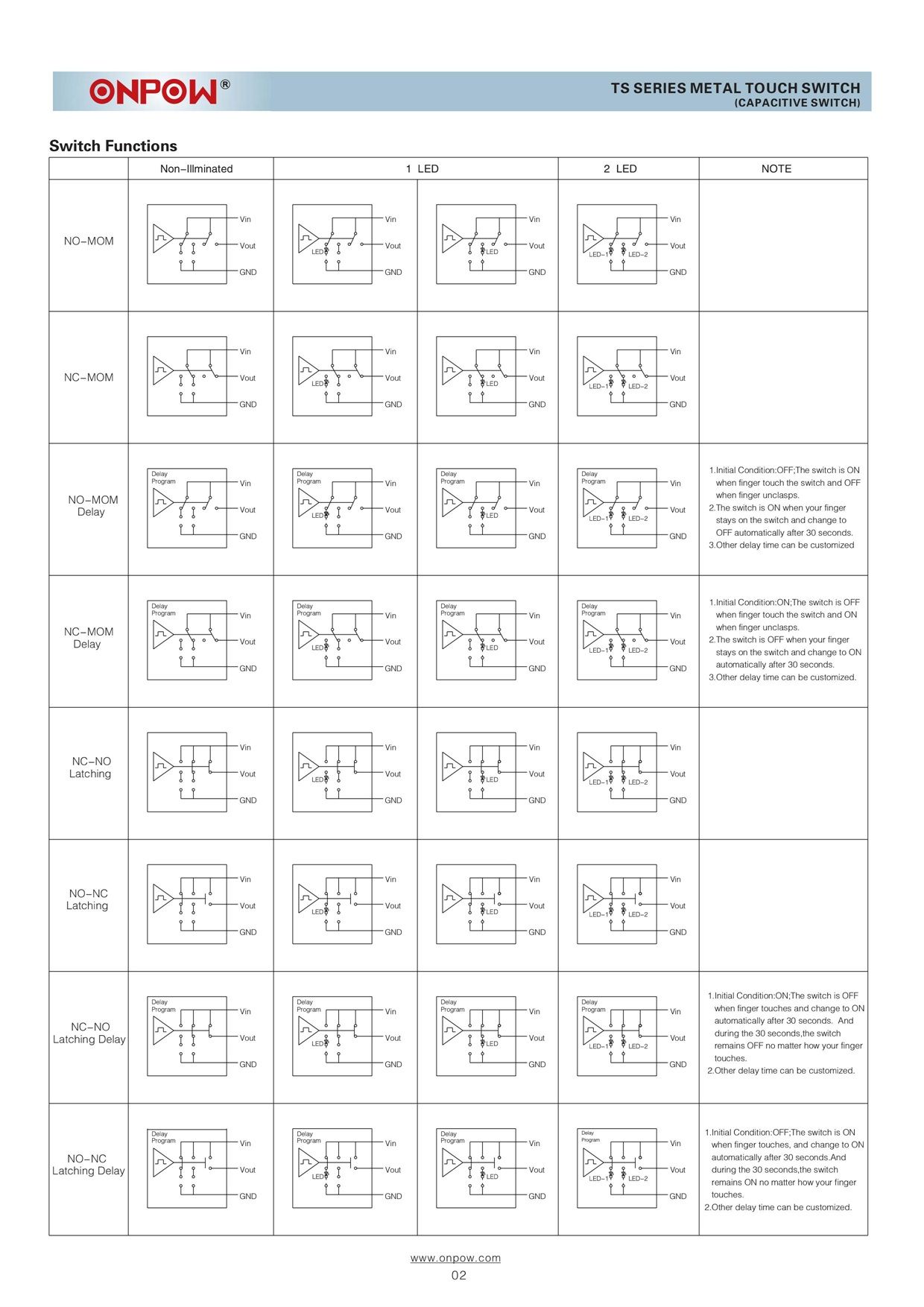

LED status:
1 LED: LED lights when the output circuit closes
2 LED: when the output circuit open, first LED color lights
Second LED lights when the output circuit closes.

Pls contact us for BEST PRICE!!

Also we can meet your special requirements:
       1. Laser engraving for different symbol or Illuminated symbol.
       2. Different metal body color can be made, like Red, Green,   Yellow, Blue, White, Orange, Golden.
       3.Special design for big diameter up to 35mm or small diameter to 8mm.
       4. We accept different terms of payment, like PAYPAL, ESCROW and so on.
       5.Other special requirement pls contact Mr. Puma (International trade manager)

Puma chen

ONPOW / ONPOW PUSH BUTTON MANUFACTURE CO., LTD.
Address: Sibanqiao Industrial Zone, Xiangyang Town, Yueqing City, Zhejiang Province, China. 325619

Tel: +86-577-62628788     MT: 86-13587700386    //  Fax: +86-577-62623304
Work time: 8:00-11:30  13:00-17:30(Except Sunday)

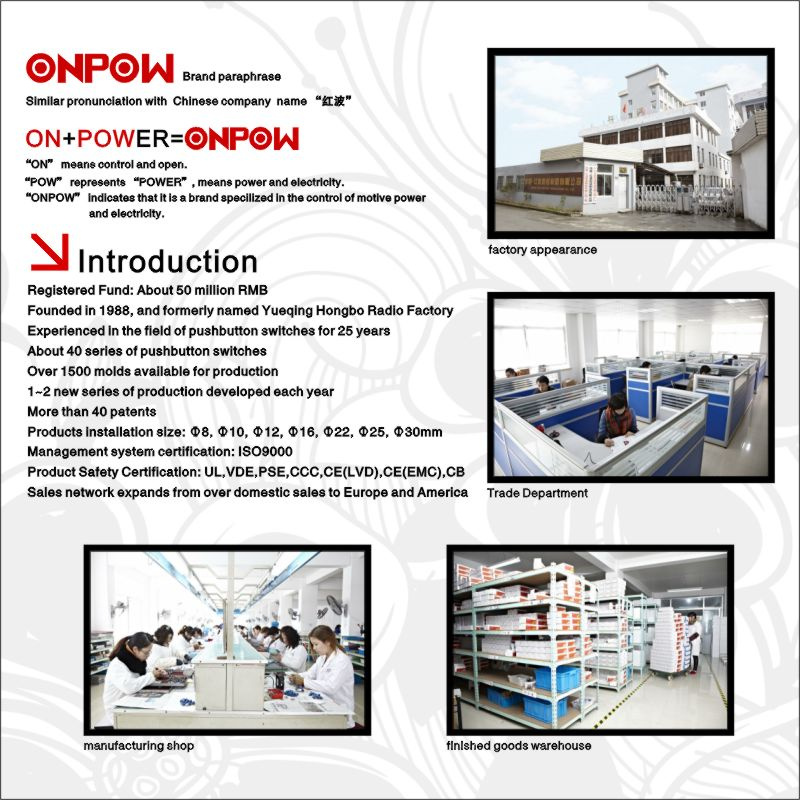

Established in 1988 with a registered capital of USD 8.2 million we are one of the leading manufacturers in China specializing in introduced pushbutton switches.
