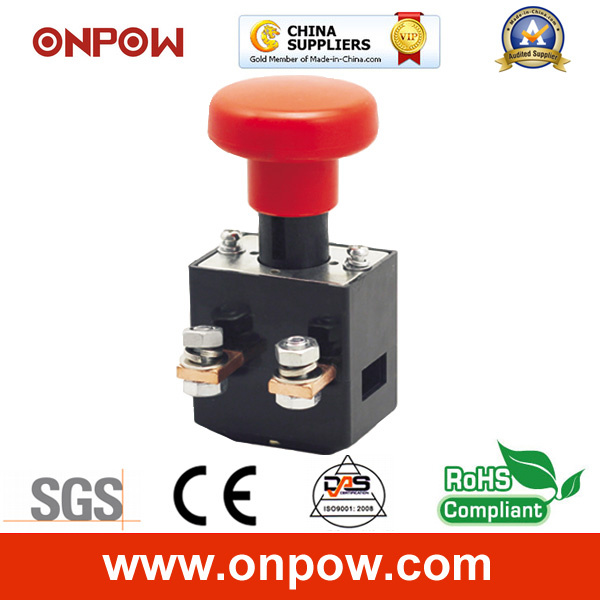

Onpow DC Push Button Switch (JEC 250A)

Name: Onpow DC Push Button Switch (JEC 250A)
Brand: all-electronics-online.com
SKU: 772565175
Availability: InStock
Rating: 5 (94 reviews)

Price:	US $ 14.43/Piece
Trade Terms:	FOB,EXW
Min Order:	1/Piece
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	JEC 250A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Contact Form:	1no
Rated Voltage:	12V, 24V, 36V, 48V, 60V, 72V, 84V, 120V, 250V, etc
Contact Circui Rate Loa Current:	250A
Typical Voltage Drop Across Contact PE 1:	≤30mv
Insulation Resistance:	20megohm
Electric Strengrh To Resist:	50Hz/60Hz, 1000V AC
Typical Fault Currents Which Can Be Rupt:	1000A/5ms at 48V DC
Type:	Normal Open
Usage:	Limit Button
Brand:	Onpow

Product Description

USES
Emergency switches is applicable for various electric motor cars and other electric actuators,they are very safe and convenient.

TECHNICAL PARAMETERS

Rated voltage	12V,24V,36V,48V,60V, 72V,84V,120V,250V,etc
Contact circui rate loa current(A)	250A
Typical voltage drop across contact pe 100A	≤30mV
Insulation Resistance	20MΩ
Electric strengrh to resist	50Hz/60Hz,1000V AC
Typical fault currents which can be ruptured	1000A/5ms at 48V DC
Electric life	10 thousand times
Mechanical life	1 million times
Work specification	Continuous
Contact form	1NO

Pls contact us for BEST PRICE!!

Also we can meet your special requirements:
1. Laser engraving for different symbol or Illuminated symbol.
       2. Different metal body color can be made, like Red, Green,   Yellow, Blue, White, Orange, Golden.
       3.Special design for big diameter up to 35mm or small diameter to 8mm.
       4. We accept different terms of payment, like PAYPAL, ESCROW and so on.
       5.Other special requirement pls contact Mr. Puma (International trade manager)

Puma chen

ONPOW / ONPOW PUSH BUTTON MANUFACTURE CO., LTD.
Address: Sibanqiao Industrial Zone, Xiangyang Town, Yueqing City, Zhejiang Province, China. 325619

Tel: +86-577-62628788     MT: 86-13587700386    //  Fax: +86-577-62623304   http://hongbo.en.alibaba.com

Work time: 8:0-11:30  13:00-17:30(Except Sunday)

Established in 1988 with a registered capital of USD 8.2 million we are one of the leading manufacturers in China specializing in introduced pushbutton switches.

Our pushbutton switches are widely used in many fields. The items include metal anti-vandal push button switchs, signal lamps, pilot lamps, illuminated pushbuttons, selector switches, illuminated selector switches, key lock switches, buzzers, emergency pushbuttons, illuminated emergency pushbuttons, and pushbutton accessories. And the installation sizes involve Φ 8, Φ 10, Φ 12, Φ 16, Φ 22, Φ 25, and Φ 30. Our switches are well designed for use. They are wearable, of long operating life, and easy to install. Besides, the function of quick-break contact and the self-cleaning feature add to the reliability of our products. We value product quality. We have invested special funds in research and development. Our products all meet the standards of ISO 9001, CCC, CE, VDE, and UL.

Our products are exported to the United States, United Kingdom, France, Italy, Russia, Turkey, and Southeast Asian countries, and have helped us build a reputation in the markets.
