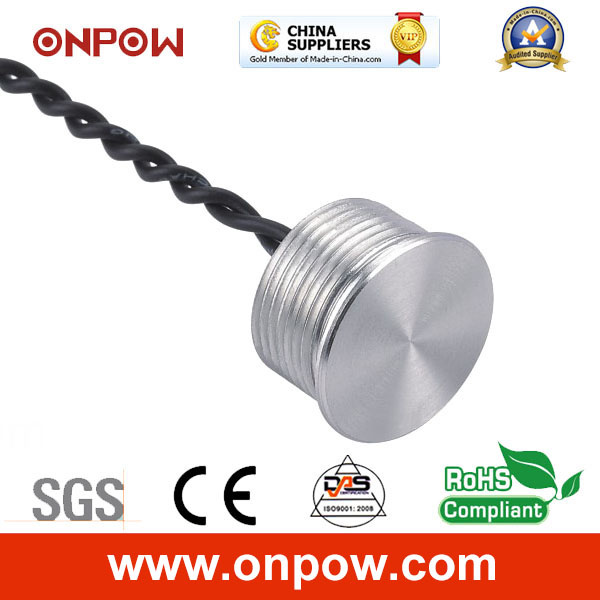

Onpow Piezoelectric Switch (PS series, CCC, CE)

Name: Onpow Piezoelectric Switch (PS series, CCC, CE)
Brand: all-electronics-online.com
SKU: 777849395
Availability: InStock
Rating: 4.5 (100 reviews)

Price:	US $ 7-14/Piece
Trade Terms:	FOB,EXW
Min Order:	1/Piece
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	PS series
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Max. Voltage:	24V
Max. Current:	200mA
Sealing:	IP68
Material:	Aluminium, Anodized, Stainless Steel
Crust Color:	Black, Red, Green, Blue, Natural Silver
Shape:	Flat Head
Approval:	CE, RoHS
Operation Force:	2 to 6 (N)
Life Expectancy:	50 Million Cycles
Operation Temperature:	- 40 to +75 Degree
Type:	Normal Open
Usage:	Check Button
Kind:	Push on(Momentary)

Product Description

Materials
l Case:aluminum,anodized
l Multi-wire leads section 0.22mm² length300mm,twisted by pair
l Cable,length 300mm,section depending on switch model
l PC terminals:bronze, tin plated

Environmental Specifications

Sealing	IP68
Vibration resistance	10-500Hz/10g
Operating temperature	-40ºC to +75ºC

Electrical and general Specifications

Max.current/volage rating	1A 24VAC/DC or 200Ma 24VAC/DC,depending on version
Switch resistance ON	10Ω Max
Switch resistance OFF	5MΩ min
Operating force	2 to 6 N
Life expectancy	50 million cycles
LED consumption	Illuminated Dot:10mA
LED consumption	Illuminated Ring:20mA

· Pls contact us for BEST PRICE!!

Also we can meet your special requirements:

1. Laser engraving for different symbol.

2. Different metal body color can be made, like Red,Green,Yellow,Blue,White,Orange,Golded.

3.Special design for the big diameter to 35mm or small diameter to 8mm.
