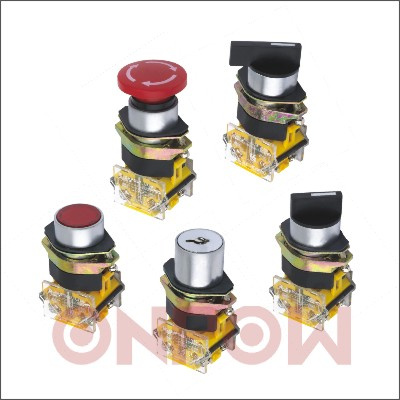

Onpow Push Button Switch (LAS0 Series, 22mm)
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Paypal |
| Prod Model: |
LAS0 series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
22mm |
| Usage: |
Control Button |
| Type: |
1no1nc or 2no2nc or 3no3nc or 4no4nc |
| Certification: |
VDE |
Product Description
LAS0 series:Using high quality inflaming retarding materials.Switch unit is separated independently and the insulating performance is very well.The product meets standard of IEC60947-5-1,GB14048.5 ect,The switch unit is slow-breal and self-cleaning.It uses modular combination mode and you can combine fron one to eight switch units optional,so make the product meet the requirement of many special control circuits. Switch Ratings| Rated Insulation Voltage | Ui:500V |
| Thermal Current | Lth:10A |
| Rated Voltage | 24V | 110V | 220V | 380V | 500V |
| Direct Current | 10A | 2.2A | 1.1A | | |
| Alternating current | P.F=0.7 | | 10A | 6A | 4A | 2A |
| | | | | | | |
Lamp ratings| Lamp type | AC LED Lamp |
| Rated voltage | AC/DC 6V | AC/DC 12V | AC/DC 110V | AC/DC 220V | AC/DC 380V |
| AC/DC 24V | AC 100V | AC 200V | AC 380V |
| Rated Current | ≤20mA |
| Covers color | Red,Green,Yellow,Orange,Blue,White |
| Life | About 40,000 hours |
Note:1.the lamp contains a current-limiting resistor inside and doesn't need external connection.2.The standard is using AC/DC LED lamp,dual-color LED lamp and other voltages can be customized. Specifications| Operating Temperature | -25ºC~+55ºC(no freezing) |
| Operating Humidity | 48~85%RH(no condensation) |
| Contact Material | -sliver
-sliver alloy
-gold-clad sliver,
Cladding thickness is 3μm |
| Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥100mΩ |
| Dielectric Strength | 3000V,AC 50Hz,1min |
| Vibration Rasistance | 50Hz,amplitude 1.2mmP-P |
| Shock Rasistance | ≥10g |
| Life | Mechnical | Momentary Type | ≥1,000,000times |
| Alternate and Selector Type | ≥500,000times |
| Key-lock and EmergencyType | ≥200,000times |
| Electrical | ≥50, 000times |
| Terminal | Thread connection,diameter of welded wire:2*1.5mm max
Connecting link:6.3*0.8mm |
| Operating Force | 800gf-2200gf,according to the quantity of switch units |
| Operating Travel | A,B,C type:about 5.5mm(pushbutton) |
| K type:about 3.8mm(pushbutton) |
| Category | A | B | C | Remarks |
| Normal Type | Φ22.5
or
Φ25.5
or
Φ30.5 | ≥50 | ≥35 | 1. Unit:mm
2. B and C both are the minimum size. |
| Selector Type&Key-lock Type | ≥50 | ≥35 |
| Mushroom | ≥50 | ≥42 |
| Big Mushroom | ≥70 | ≥70 |
Mounting hole Dimension · Pls contact us for BEST PRICE!!
Also we can meet your special requirements:
1. Laser engraving for different symbol or Illuminated symbol.
2. Different metal body color can be made, like Red, Green, Yellow, Blue, White, Orang e, Golden.
3.Special design for big diameter up to 35mm or small diameter to 8mm.
4. We accept different terms of payment, like PAYPAL, ESCROW and so on.
5.Other special requirement pls contact Mr. Puma (International trade manager)
Puma chen
ONPOW / ONPOW PUSH BUTTON MANUFACTURE CO., LTD.
Address: Sibanqiao Industrial Zone, Xiangyang Town, Yueqing City, Zhejiang Province, China. 325619
Tel: +86-577-62628788 MT: 86-13587700386 // Fax: +86-577-62623304
Website: www.onpow.com http://hongbo.en.alibaba.com
Work time: 8:00-11:30 13:00-17:30(Except Sunday)
Established in 1988 with a registered capital of USD 8.2 million we are one of the leading manufacturers in China specializing in introduced pushbutton switches.
Our pushbutton switches are widely used in many fields. The items include metal anti-vandal push button switchs, signal lamps, pilot lamps, illuminated pushbuttons, selector switches, illuminated selector switches, key lock switches, buzzers, emergency pushbuttons, illuminated emergency pushbuttons, and pushbutton accessories. And the installation sizes involve Φ 8, Φ 10, Φ 12, Φ 16, Φ 22, Φ 25, and Φ 30. Our switches are well designed for use. They are wearable, of long operating life, and easy to install. Besides, the function of quick-break contact and the self-cleaning feature add to the reliability of our products. We value product quality. We have invested special funds in research and development. Our products all meet the standards of ISO 9001, CCC, CE, VDE, and UL.
Our products are exported to the United States, United Kingdom, France, Italy, Russia, Turkey, and Southeast Asian countries, and have helped us build a reputation in the markets.
