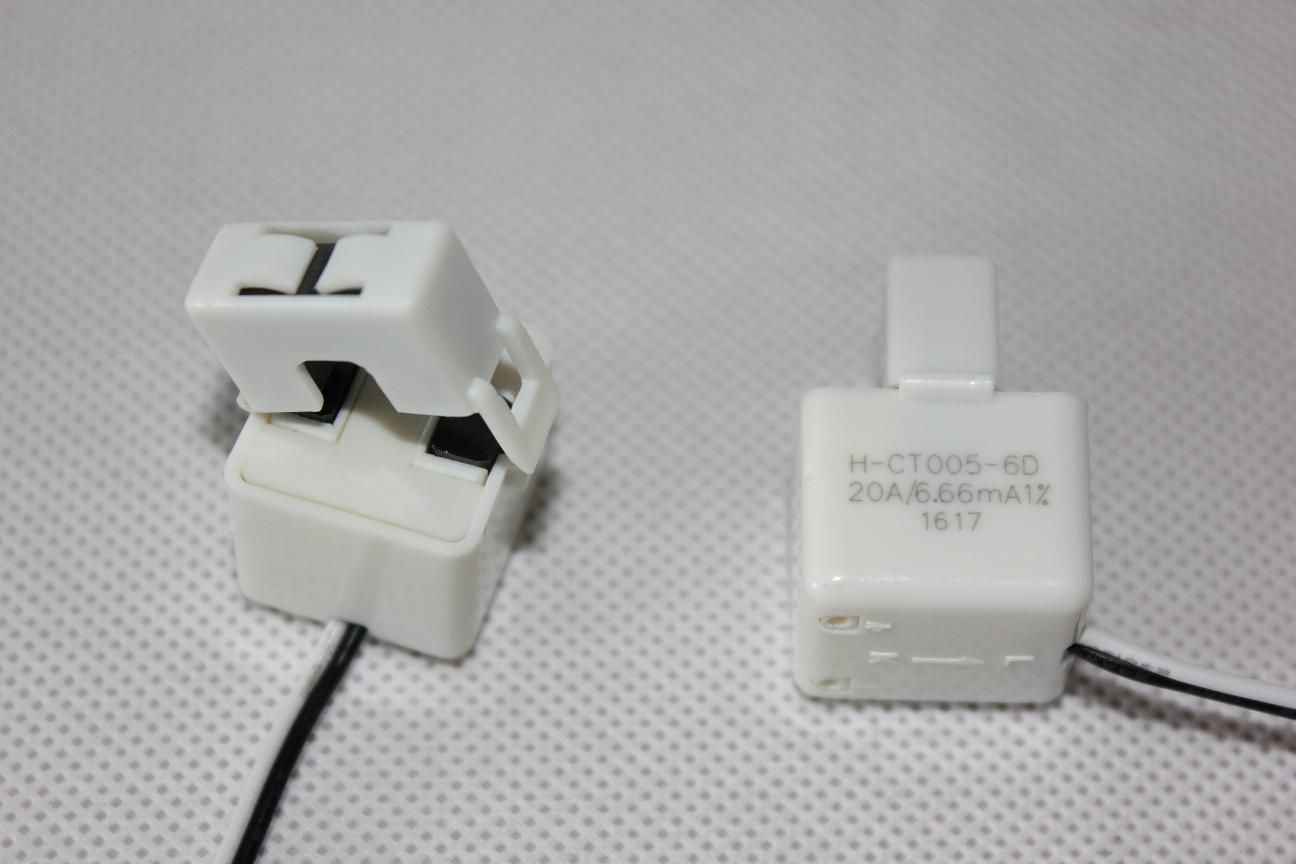

Open Current Transformer with 20A/6.66mA

Name: Open Current Transformer with 20A/6.66mA
Brand: all-electronics-online.com
SKU: 787888935
Availability: InStock
Rating: 4.7 (133 reviews)

Price:	US $ 1.95-2.2/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	H-CT005-6D
Model:	H-CT005-6D
Current Ratio:	20A/6.66mA
Rate Primary Current:	20A
Max Primary Current:	24A AC
Secondary Turns:	1:3000
Wire Lead:	AWG#22
DC Resistance:	75ohms +/-20% at 20
Frequency:	50/60Hz
Brand:	E-Power
Manufacturer:	Jiaxing Haihan Electron Co.,Ltd
Application:	Lighting
Type:	Current Transformer
Phase:	Three

Product Description

The H-CT005 Series are split-core current transformers. The CT can be mounted to existing panels, such as control centers or load centers, to measure or monitor wattage. These current transformer's can be mounted without removing existing cables for easier installation.

1, Electrical Specifications

2, Applications.
A, Portable/Curret instruments.

B, Sub-metering.

C, Monitor Motor Loads

3, Feature
A, Small size.

B, Low cost

C, High secondary turns.

D, Secure locking hings

E, Full RoHS compliant

F, Mounting easy.

Rated Primary Current(Amp. ) 50/60Hz	20A(0~24A max)
Turn ratio	Np: Ns=1: 3000
Current Ratio	20A/6.66mA
A. C. Resistance at 20 º C	75 Ω MAX
Accuracy @RL≤ 10Ω	5%
Linearity @RL≤ 10Ω	1%
Operating Temperature Range	-40~65º C
Storage Temperature Range	-45~85º C
Dielectric Withstanding Voltage(Hi-pot)	2.5KV/1mA/1min
Insulation Resistance	DC500V/100MΩ min

Jiaxing Haihan Electronic Co., Ltd was established in 2011, We are a professional in designing and manufacturing electricity energy meter accessory and hotel supply.

Mainly electricity meter accessory including: Current transformer, stepper motor counter, Manganin shunt, magnetic latching relay, electricity energy meter case, DIN-Rail Watt-hour meter and precision components, Hotel utensil including: Hotel minibar, safe box and wine cooler.

Outstanding employees, advanced technology, superior equipment, and strict management are pivotal to a company's development and to win customers' trust on its products. "Accurate, reliable, and professional" is our belief in producing and servicing.

Since the establishment, It has been absorbing the advanced technology at home and abroad. At the same time we are also learning experience from the whole electronic industry, so we are producing products with precision, stability, reliability leading in Chinese market. With the advanced technology, excellent quality, perfect service, our products are selling through all around the world.

Jiaxing Haihan Electron Co., Ltd provides professional pre-sale, sale, after sale service which has won our customers' trusts and praises from domestics and overseas. We are focusing on the innovation of technology, the quality of management, and the improvement of services in different levels to achieve our development.

We are actively involved in activities of promoting and exchanging. During the long-term development the company will perfect the quality and performance of products, the technology, and establish long-term friendly cooperation relationship with companies from all around the world. We sincerely welcome all customers at home and abroad to visit our company and exchange the technology.
