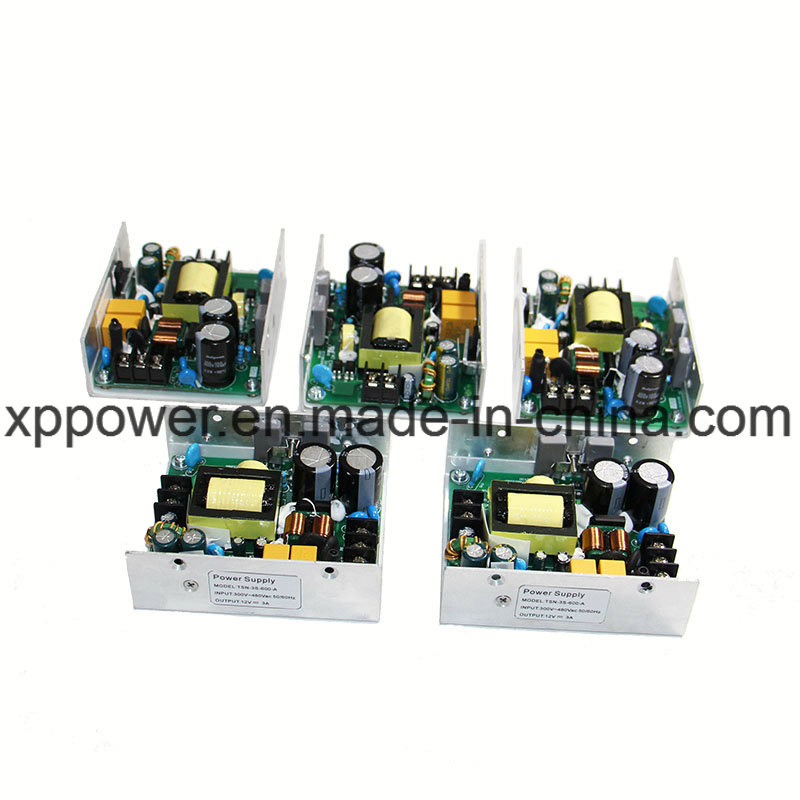

Open Frame Three Phase Industrial Switching Power Supply

Name: Open Frame Three Phase Industrial Switching Power Supply
Brand: all-electronics-online.com
SKU: 690290641
Availability: InStock
Rating: 4.6 (119 reviews)

Price:	US $ 9.8-11/Piece
Min Order:	300/Piece
Pay Type:	L/C,T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	XPESP35-001R
Output Type:	Single
Warranty:	2 Years
Output Power:	1 - 50W
Input Voltage:	380V
Connection Mode:	Series Switching Power Supply
Starting Mode:	Self-excited Switching Power Supply
Voltage Regulating Mode:	Frequency Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	ISO
Brand:	XP Power

Product Description

Electrical Specification

Input voltage range	300Vac - 480Vac
Rated voltage range	380Vac
Input frequency range	47Hz-63Hz
Rated input frequency	50Hz/60Hz
Input current	0.3Amax. at full load
Inrush current(cold start	48Atyp peak,480Vac Input

Safety and EMI Requirement:
Safety: accord with: UL60950-1
EMI STANDARD:
EMC emission: Compliance to EN55032 (CISPR22) Class B, EN61000-3-2,-3
EMC immunity: Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, EN61000-6-1, light industry level, criteria B
Dielectric Strength Testing:

Hi-pot test shall be met the table 5 requirements, an item listing this test as a 100% production test must be performed and be maintained at that level for a minimum of 5 seconds without failure.

ITEM	SPECIFICATION	REMARK
Primary to Secondary	3000Vac/5mA/5s	No arcing
Primary to P.G	1500Vac/5mA/5s	No broken
Secondary to P.G	500Vac/5mA/5s	No broken

Enclosure L100x W82x H35mm;
The power supply size: L100x W82x H35mm;

XP Power that was established in 1992 is a manufacturing, integrating research & development, trading company, supply as a whole. The company is one of the world's leading developers and manufacturers of power transformers, power inductors, choke coils, high frequency transformers and reactors solutions for the electronics industry with specialists who are versed in all the technical and legislation requirements. The products of XP Power are stable quality, full range of variety, prompt delivery, competitive price so that they are applicable in new energy, communication facilities, UPS power, household appliances, Medical instrument, monitor, automotive electronics and so many other fields. After over a dozen of years' development, the company has complete quality management system, scientific technology research and development system and good service team. And now XP Power has fixed assets to the value of USD 60 million and six hundred employees and three factories located in Foshan, Hefei and Xi' An. The company has an annual production capacity of 50 million PCS. Our main market is Europe, North & South America, Middle East and Asia.

The company is equipped with advanced manufacturing equipment and testing apparatus as well as a R&D center comprised by various technicians, which can offer different customers different new products according to customers' needs, developing and researching more new projects. Our company always adheres to the high quality and technological innovation. In the process of production the rigorous quality inspection standards and inspection technique are used in order to realize the total quality management from the incoming inspection, process inspection, to the outgoing inspection, which guarantee the high quality. The quality of our products recognizes by some authorities and gets all sorts of world-class certification, such as ISO9001 and ISO14001, etc. Our products are RoHS and REACH compliant.

XP Power supplies its products to 30 countries across the globe. Every year, over 30 million coils are wound, over 20 million high frequency transformers are manufactured, and thousands of modules are mounted.
