| Prod Model: |
Z900E |
| Item Name: |
Open Loop Vector Control 220V 380V AC Frequency in |
| Input Power 220V: |
0.4-3.7kw |
| Input Power 380V: |
0.75-315kw |
| Digital Setting: |
0.01Hz |
| Output Current: |
2.4A-300A |
| Speed Range: |
1:100(Sfvc) |
| Analog Setting: |
Maximum Frequency X 0.025% |
| Timing Control: |
Time Range:(0.0-6500.0 Minutes |
| Communication Methods: |
RS485 |
| Maximum Frequency: |
V/F Control(0-3200Hz);Vector Control(0-320Hz) |
| Application: |
High Frequency Converter Transducer |
| Output Type: |
Triple |
| Switch Mode: |
PWM Control |
| Main Circuit Type: |
Voltage |
| Principle Of Work: |
V/F or Vector Control |
| Voltage Of Power Supply: |
220V/380V |
| Brand: |
Machtric |
Product Description

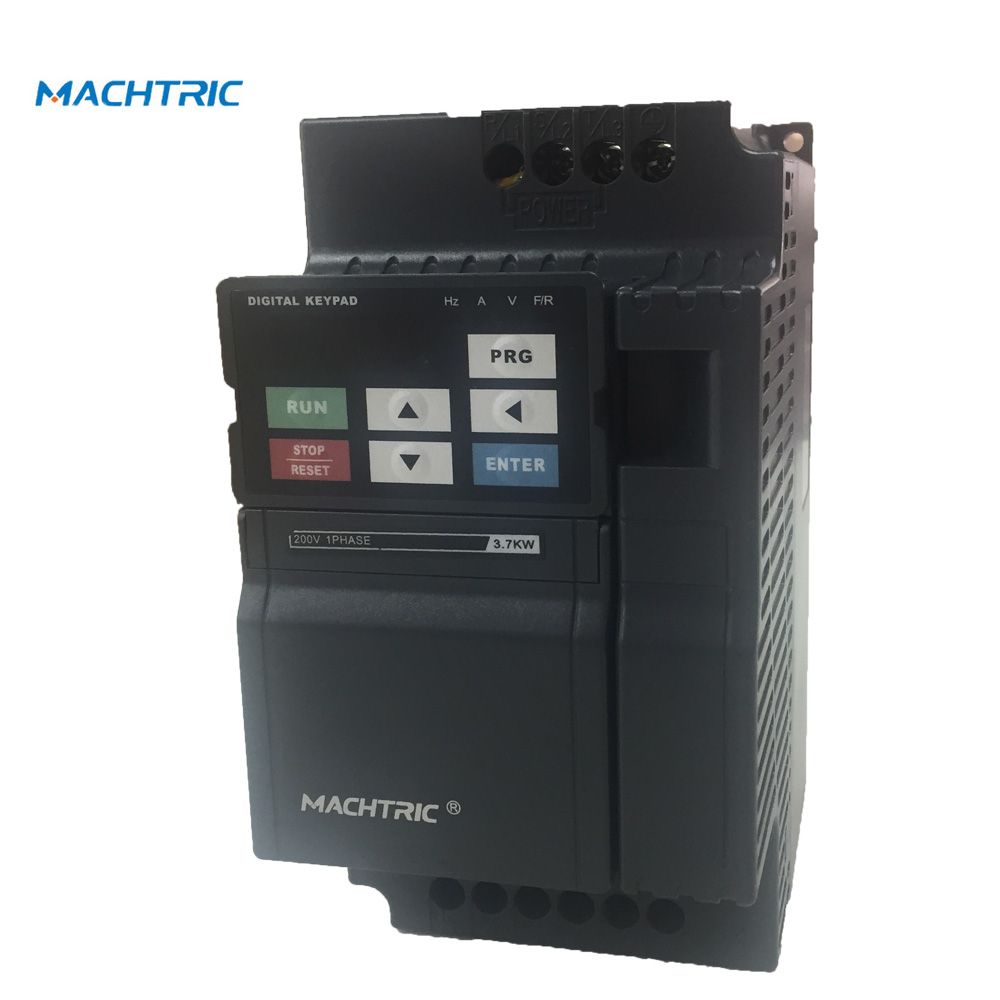

Open Loop Vector Control 220V 380V AC Frequency Inverter Converter
1.Product Specification:
| Item | Z900E |
tandard Function | Control mode | Sensorless flux vector control(SFVC)
Voltage/Frequency(V/F) control |
| Maximum frequency | Vector control:0-320Hz
V/F control:0-3200Hz |
| Carrier frequency | 1-16kHz
The carrier frequency is automatically adjusted based on the load features. |
| Input frequency resolution | Digital setting:0.01Hz
Analog setting:maximum frequency x 0.025% |
| Startup torque | G type:0.5 Hz/150%(SFVC)
P type:0.5 Hz/100% |
| Speed range | 1:100(SFVC) |
| Speed stability accuracy | ±0.5%(SFVC) |
| Torque control accuracy | ± 5% (CLVC) |
| Overload capacity | G type:60s for 150% of the rated current,3s for 180% of the rated current.
P type:60s for 120% of the rated current,3s for 150% of the rated current. |
| Torque boost | Fixed boost
Customized boost 0.1%-30.0% |
| V/F Curve | Straight-line V/F curve
Multi-point V/F curve
N-power
V/F curve(1.2-power,1.4-power,1.6-power,1.8-power,square |
| V/F separation | Two types:complete separation;half separation |
| Ramp mode | Straight-line ramp
S-curve ramp
Four groups of acceleration/deceleration time with the range of 0.0-6500.0s |
| DC braking | DC braking frequency:0.00 Hz to maximum frequency
Braking time:0.0-100.0s
Braking action current value:0.0%-100% |
| JOG control | JOG frequency range:0.00-50.00Hz
JOG acceleration/deceleration time:0.0-6500.s |
| Onboard multiple | It implements up to 16 speeds via the simple PLC function or combination of X terminal states |
| Onboard PID | It realizes process-controlled closed loop control systerm easily |
| Auto voltage regulation(AVR) | It can keep constant output voltage automatically when the main voltage changes |
| Overvoltage/Overcurrent stall control | The current and voltage are limited automatically during the running process so as to avoid frequent tripping due to overvoltage/over current |
| Torque limit and control | It can limit the torque automatically and prevent frquent over current tripping during the running process |
| Instantaneous stop doesn't stop | The load feedback energy compensates the voltage reduction so that the AC drive can continue to run for a short time |
| Rapid current limit | It helps to avoid frequent over current faults of the AC drive |
| High performace | Control of asynchronous motor is implemented throgh the high-performance current vector
Control technology |
| Timing control | Time range:0.0-6500.0 minutes |
| Communication methods | RS485 |
| Running command channel | Given by the panel,control terminals.Serial communication port,can be switched by many ways |
| Frequency source | 10 kinds of frequency source,given by Digital analog voltage,analog current,Pulse,serial port.can be switched by man ways. |
| Auxiliary frequency source | 10 kinds of Frequency source,can easily realize Micro ajustment,frequency Synthesizer. |
Input and output | Input terminal | 6 digitak input terinals,one of which supports up to100kHz high-speed pulse input.
2 analog input terminal,one of which only supports 0-10v voltage input and the other supports 0-10v voltage input or 4-20 mA current input |
| Output termianl | 1 digital output terminal
1 relay output terminal
1 analog output termianl:that supports 0-20 mA current output or 0-10V voltage ouput |
Operation on the operation panel | LED display | It displays the parameters |
| Key locking and cuntion selection | It can lock the keys partially or completely and define the function range of some keys so as to prevent mis-function |
| Protection mode | Motor short-circuit detection at power-on,output phase loss protection,over-curent protection,over-voltage protection,under voltage protection,overheat protection and overload protection. |
Environment | Installation location | Indoor,avoid direct sunlight,dust,corrosive gas,combustible gas,oil smoke,vapour drip or salt |
| Altitude | Lower than 1000m(Lower the grades when using higher then 1000m) |
| | Ambient temperature | -10°C~40°C(Lower the grades if the ambient temperature is between 40°C and 50°C) |
| | Humidity | Less than 95%RH,without condensing |
| | Vibration | Less than 5.9 m/s² (0.6g) |
| | Storage temperature | -20°C~60°C |
2.Guidence:
1PHAC220V±15% 50/60Hz
| Model | Rated output power | Rated Output Current
| Overload
Capacity | Applicable motor |
| (KW) | (A) | (60s)(A) | (KW) |
| Z900-2S0.4GE | 0.4 | 5.4 | 3.75 | 0.4 |
| Z900-2S0.75GE | 0.75 | 7.2 | 7.5 | 0.75 |
| Z900-2S1.5GE | 1.5 | 10 | 10.5 | 1.5 |
| Z900-2S3.7GE | 3.7 | 16 | 10.0 | 3.7 |
| Z900-2S5.5GE | 5.5 | 21 | 20 | 5.5 |
| Z900-2S7.5GE | 7.5 | 31 | 30 | 7.5 |
3 PHAC 380V±15% 50/60Hz
| Model | Rated output power | Rated Output Current
| Overload
Capacity | Applicable motor |
| (KW) | (A) | (60s)(A) | (KW) |
| Z900-4T0.4GE | 0.4 | 3.4 | 1.2 | 0.4 |
| Z900-4T0.75GE | 0.75 | 3.8 | 2.5 | 0.75 |
| Z900-4T1.5GE | 1.5 | 5 | 3.7 | 1.5 |
| Z900-4T2.2GE | 2.2 | 5.8 | 5.0 | 2.2 |
| Z900-4T3.7GE/5.5PE | 3.7/5.5 | 10.0/15.0 | 9.0/13.0 | 3.7/5.5 |
| Z900-4T5.5GE | 5.5 | 15 | 13 | 5.5 |
| Z900-4T7.5GE/11PE | 7.5 | 20 | 17 | 7.5 |
| Z900-4T11GE/15PE | 11/15 | 26/35 | 25/32 | 11/15 |
| Z900-4T15GE/18.5PE | 15/18.5 | 35/38 | 32/37 | 15/18.5 |
| Z900-4T18.5GE/22PE | 18.5/22 | 38/46 | 37/45 | 18..5/22 |
| Z900-4T22GE/30PE | 22/30 | 46/62 | 45/60 | 22/30 |
| Z900-4T30GE/37PE | 30/37 | 62/76 | 60/75 | 30/37 |
| Z900-4T37GE/45PE | 37/45 | 76/90 | 75/90 | 37/45 |
| Z900-4T45GE/55PE | 45/55 | 90/105 | 90/110 | 45/55 |
| Z9010-4T55GE | 55 | 105 | 110 | 55 |
| Z900-4T75PE | 75 | 140 | 150 | 75 |
| Z900-4T75GE/90E | 75/90 | 140/160 | 150/176 | 75/90 |
| Z900-4T90GE/110PE | 90/110 | 160/210 | 176/210 | 90/110 |
| Z900-4T110GE/132PE | 110/132 | 210/240 | 210/253 | 110/132 |
| Z900-4T132GE/160PE | 132/160 | 240/290 | 253/300 | 132/160 |
| Z900-4T160GE/185PE | 160/185 | 290/330 | 300/340 | 160/185 |
3.Application:Food machinery-Feeder, mixer, bag filling machines, pastry forming machine…
Woodworking Machinery-Polishing machine, grinding machine, carving machine…
Textile Machinery-winding machine, fabric inspection machine…
Packaging Machinery-Liquid filling machine, pharmaceutical filling machine…
Other: Stone cutting machine…
Blowing machine, Water-pump-housetop/a fan to fill and exhaust gas, small
Pump for water supply
Printing equipment-offset
Conveyor belt-Small conveyor belt, common conveyor belt
Feeding equipment-Tool machine, winding machines, weaving machines equipment
Rubber and plastic industry-Sealing machine, various types of small machine
General business-Common household, air conditioning, automatic door

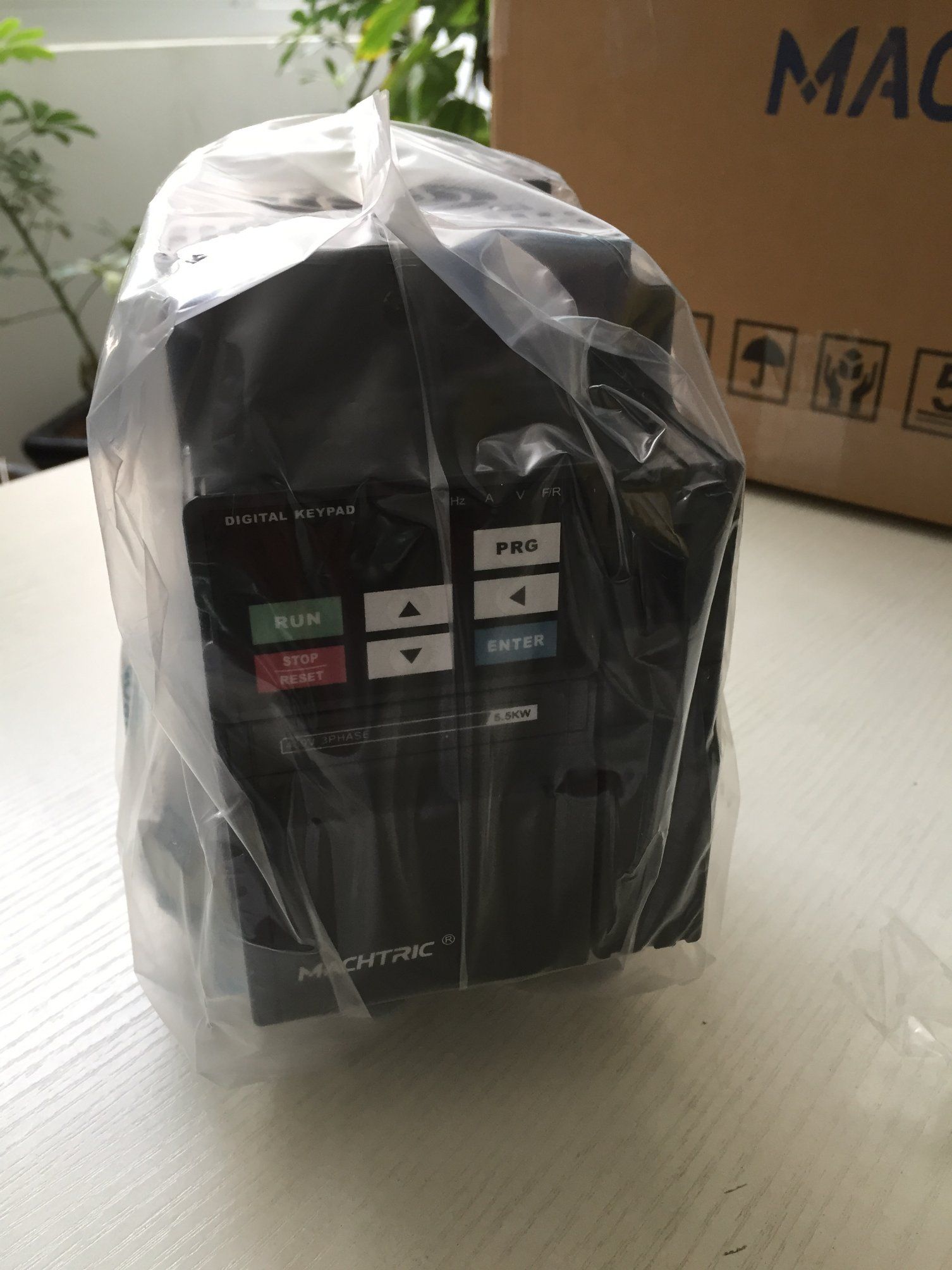

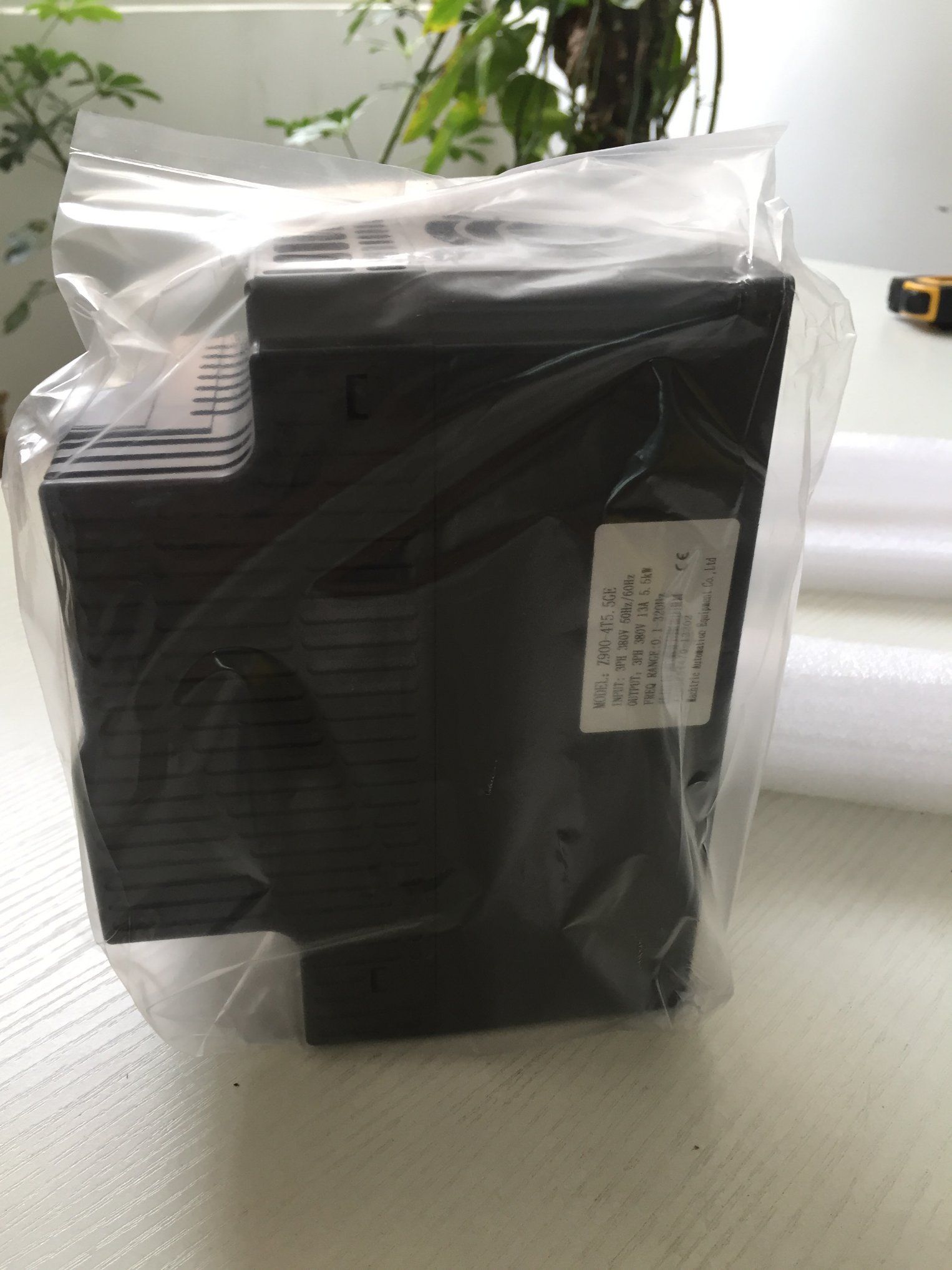

4.Product Show:
