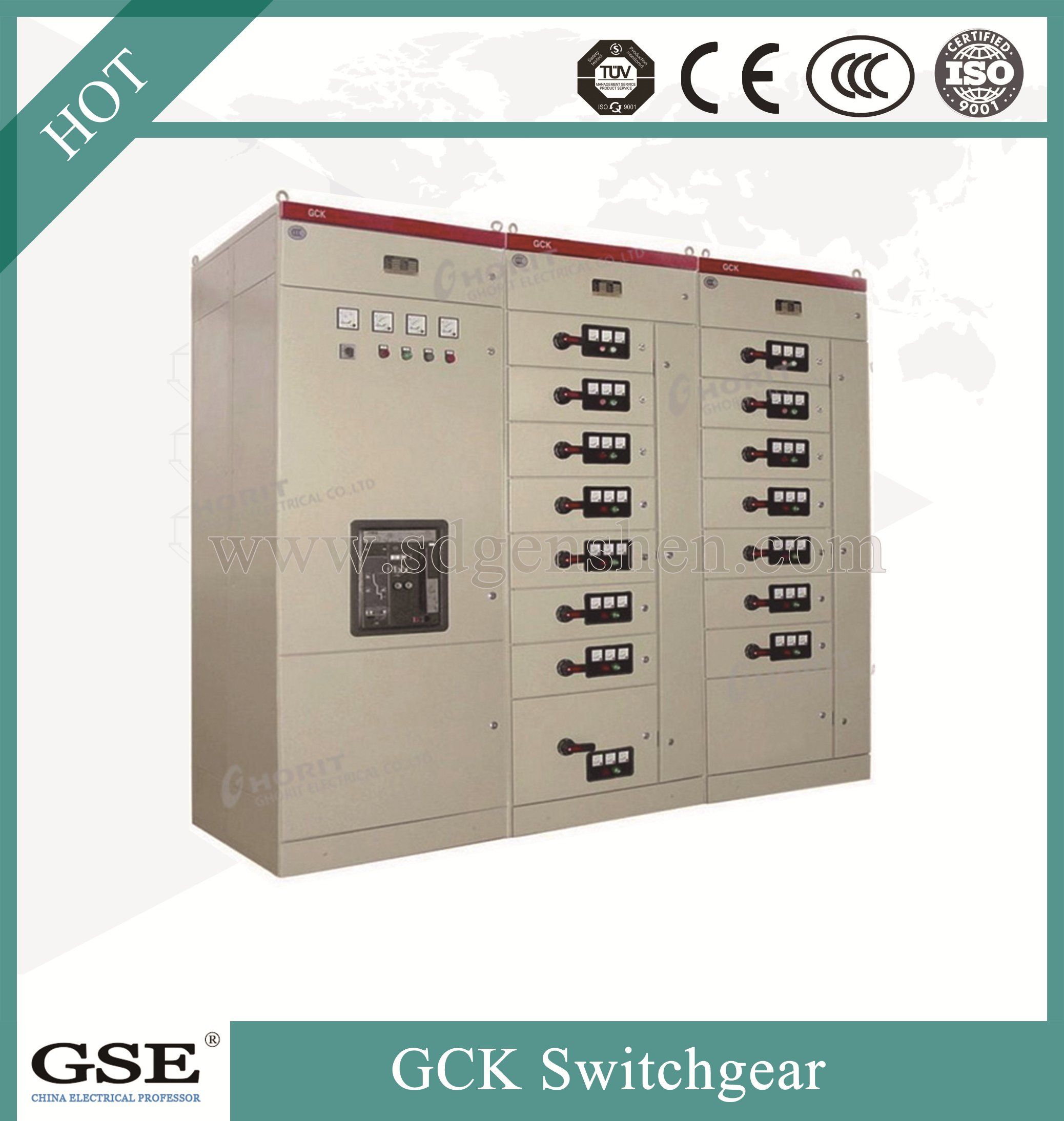

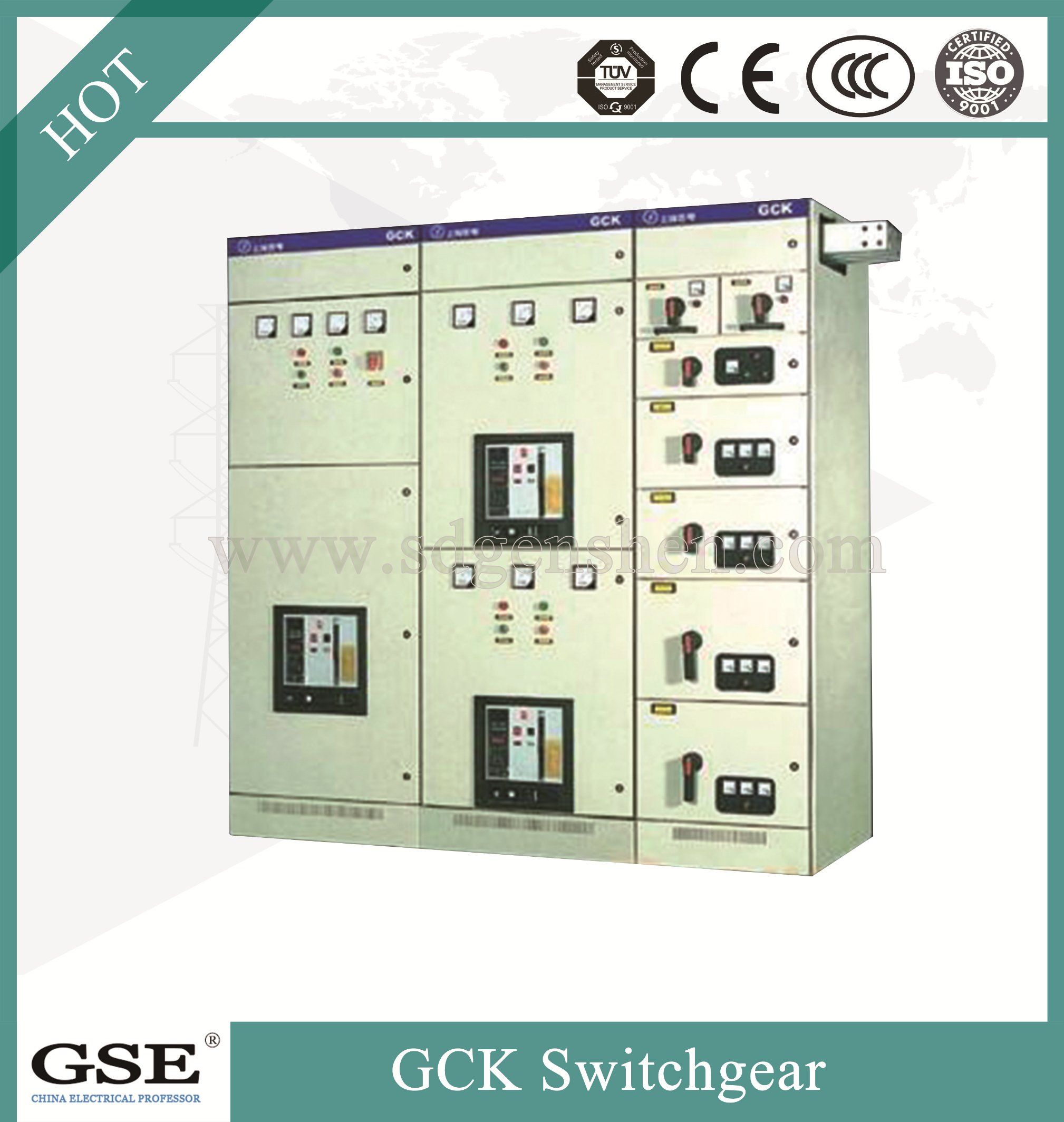

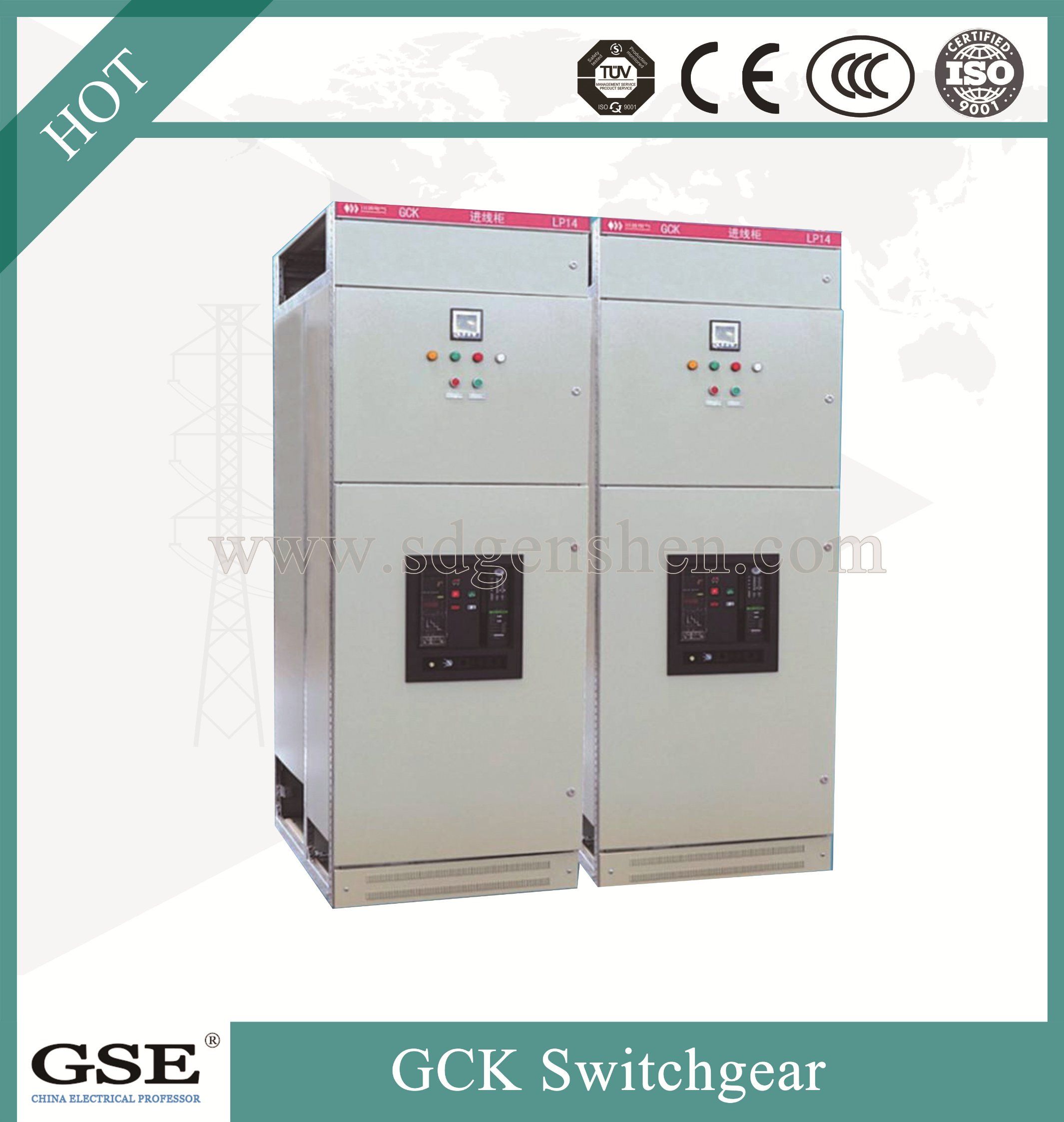

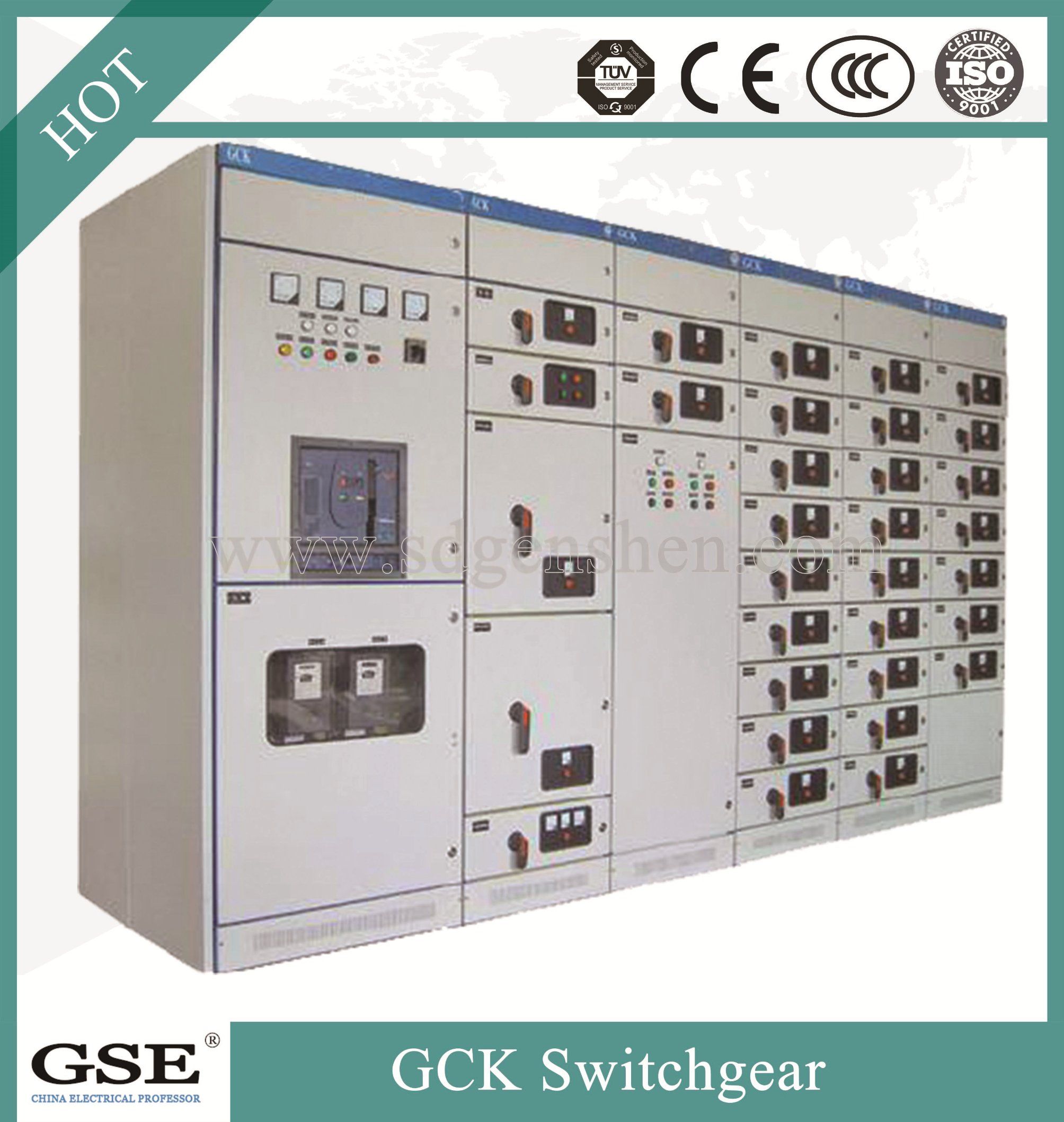

Open mounted removable high voltage AC metal enclosed switchgear/power switchgear
1.Product overview
KYN28A-12 type armored switch type AC metal enclosed switchgear series rated voltage 3.6 12KV three-phase AC 50Hz indoor distribution equipment. It is also used in power plant, power supply system and industrial and mining enterprises;
The switch cabinet can meet GB3906, L404. IEC-298 and other standards. And to prevent misoperation of circuit breaker, to prevent load push the handcart, prevent the charged grounding switch is closed, to prevent the grounding switch power supply and prevent into live space "five prevention" in the ground position function.
2.Normal working environment:
| Air temperature around | No higher than 40ºC and lower than -5ºC |
| Average temperature | No more than +35ºC within 24 hrs. Needs to drop the capacity according to actual conditions; |
| Altitude | No more than 2000 m |
| Highest temperature | +40ºC |
| Relative air humidity | No more than 50%.Larger relative humidity is allowed when the temperature is relatively low: ex. +20ºC 90%. Consider the frost effect due to temperature change accidentally; |
| the inclination of the device to the vertical of the ground is no more than 5 degrees, and the whole cabinets are in relatively same level (conforms to GBJ232-82 standard) |
| The device should be installed in a place without violent vibration and impact, and no corrosion to its electric components |
| | |
3.Electric basic parameters
| Model | Rated voltage (V) | Rated current (A) | Rated short circuit breaking current (KA) | Rated short-term tolerant current (1s) (KA)
| Rated peak tolerant current (KA) |
| GGD1 | 380 | A | 1000 | 15 | 15 | 30 |
| B | 600(630) |
| C | 400 |
| GGD2 | 380 | A | 1500(1600) | 30 | 30 | 65 |
| B | 1000 |
| C | 600 |
| GGD3 | 380 | A | 3150 | 50 | 50 | 105 |
| B | 2500 |
| C | 2000 |
4.Main features
4.1,The structure of the cabinet body is made of aluminum plates assembled by multiple bending;
4.2,All operations are carried out in the door closed;
4.3,High protection level, can prevent the invasion of debris and pests;
4.4,Simple and effective "five anti" interlock to prevent misoperation;
4.5,Can be equipped with ZN63A (VSl). UGP or VD4 type solid sealing pole; column vacuum circuit breaker and contactor ten fuse type combination of electrical appliances;
4.6,Easy to replace the car, hand car interchangeability good;
4.7,Cabinet reliable wall installation, cabinet maintenance, reduce the area;
4.8,The cable room has enough space to connect a plurality of cables;
4.9,Fast grounding switch for earthing and loop;
4.10,The circuit breaker and the cable chamber can be respectively provided with a heater to prevent condensation and corrosion.
4.11,The cabinet has a flat top cabinet two high-low cabinet shape or choose.

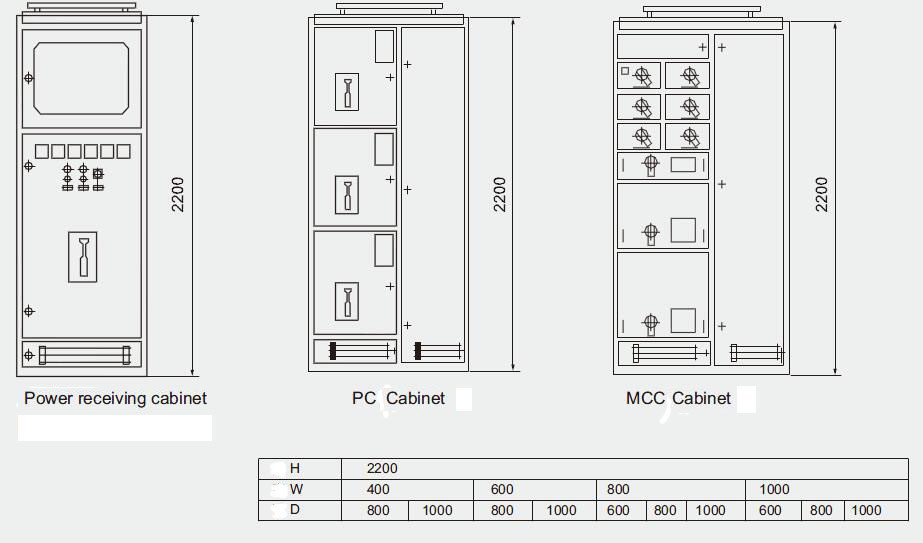

5.Structure description
The switch cabinet is composed of two parts: a fixed cabinet body and a spare part. The shell of the cabinet body and the partition of each functional unit are covered with aluminum zinc steel plate, and the protection level of the switch cabinet is IP4X, and the protection level of each compartment is IP2X.
The switch cabinet can be equipped with ZN63A (VS1), VGP or VD4 type VXG and ten contactor fuse combination electric appliance handcart. Due to installation and maintenance of switch cabinet in front of the cabinet are positive, so it can be mounted against the wall or back to back.
Hand car:According to the use of hand can be divided into the circuit breaker, the voltage transformer hand car, measuring hand car, the hand of the hand, the hand of the fuse car and other similar use of the vehicle has interchangeability. There is a test / isolation position and a working position in the cabinet, each of which has an interlocking device to ensure that the hand is moved in the above two positions.
Bus room:The main bus from one switchgear to another switch cabinet through the branch busbar and the static contact box is fixed, across the adjacent side panels of the cabinet with fixed bus sleeve, all bus with heat shrinkable insulation sleeve plastic.
The shell and the partition board of the switch cabinet are made of aluminum zinc coated steel plate after being processed by a numerical control machine tool and then bent and connected, so that the assembled switchgear can ensure the unity of the structure size. Aluminum zinc coated steel plate with anti corrosion and strong antioxidant effect, and compared with the mechanical strength of the switch cabinet plate high was divided into the same hand car room, a bus chamber, a cable chamber and the relay control room. Each unit of independent grounding.
Circuit breaker:Disconnecting indoor installation of a specific track for truck mobile breaker moving before the test position and the operating position when the isolation valve open or close automatically, ensure the staff does not touch the charged body. The truck can be operated with the door closed, through the observation window can see the hand of the car in the cabinet location, see all marks on the car at hand.
Cable:The cable room can not only connect a plurality of cables, but also can be installed with a current transformer, a grounding switch, a lightning arrester, etc..
Relay room:Relay indoor panels and panels can be installed to control, protection components, measurement, display instruments, such as live monitoring monitors two components.
Interlocking device:The switch cabinet has reliable interlock device, which ensures the safety of operators and equipment:
1,When the grounding switch is in the position of the gate, the handcart can move between the test position and the working position;
2,Only the circuit breaker can be operated when the position or working position can be known;
3,When the grounding switch is in the closing position, the hand can not move from the test position to the working position;
4,The grounding switch can only be operated when the hand is in the test position;
5,The two plug and the hand position of the interlocking solution, hand only in the test position, the two plug can be inserted or removed;
6,When the car is in the working position, due to mechanical interlock, the two plug is locked and cannot be removed;
Grounding device:In the cable room, there is a separate 10X40 grounding bus, the bus can run through the adjacent cabinets; good contact with the cabinet.
6.Factory show
It is one of the most professional and famous expertise in North China. With major business of power distribution equipment, power transformer euipment, box-type substation, electricity measuring and high-voltage metering device, as well as the power device, instruments&meters, measuring box with GRP and PC+ABS material, charging equipment for electric car, photovoltaic power generation(without generator set) and wind power generation equipment both in producing and selling. For a 3C authentication factory by nationality and already got the ISO9001 quality management system, OHSAS18001 occupation health and safety management system and ISO14001 environment certification.
Advantages
6.1, The most favorable offer from professional factory with assurance quality for you!
6.2, Cooperate with the State Grid Corporation of China many years!
6.3. All your question will be kindly feedback in 24 hours all the time!
6.4, No MQQ limit and all the related certification is available!
6.5, We promised that more profit and pleasure will be got once business relationship established between us!
6.6, Welcome to visit our factory and your precious advise is expecting forever!
