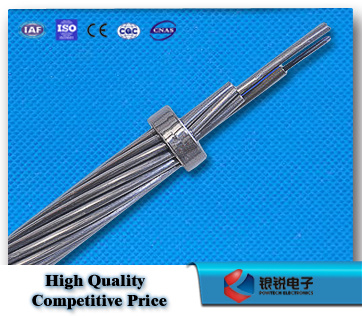

Opgw 57/ Opgw 12 Fibers Cable
| Price: |
US $ 1/Meter |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Meter |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
OPGW-36B1-48 [59; 11] |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Loose Tube: |
Stainless Steel Loose Tube |
| Rts: |
40kn ~150kn |
| Fiber Qty: |
12 ~48 Fiber |
| Application: |
Communication |
| Type: |
Single-mode Fiber |
| Certification: |
CCC |
| Brand: |
Powtech |
| Sheath Material: |
Stainless Steel Tube |
Product Description
OPGW cable /OPGW Cable 12 Fibers
Description:
OPGW cable is the short form of Optical Fiber Composite Overhead Ground Wire. OPGW cable is suitable for installation on new power lines with double function of ground wire and communication. Especially for installation on normal voltage and extra high voltage power lines. OPGW cable can replace conventional ground wire of old power line with increasing fiber communication function. OPGW cable conduct short circuit current and provide lightning resistance.
OPGW Cable Structure: Stainless steel loose tube
The stainless steel loose tube, ACS and outside AA can be stranded to form the single layer. It is coated with anti-corrosion jelly between the stranding layers
OPGW Cable Features:
(1) The OPGW uses stainless steel loose tube structure, increasing its reliability and the performance of temperature-resistant.
(2) The OPGW meets the requirement of large fiber line application.
(3) The OPGW are specially applied for the optical communication system while installing the electric transmission line.
(4) Project design (sag-tension calculation, short circuit current, ADSS hardware fittings calculation)| Central Optical Fiber SUS Tube Structure (Parts) |

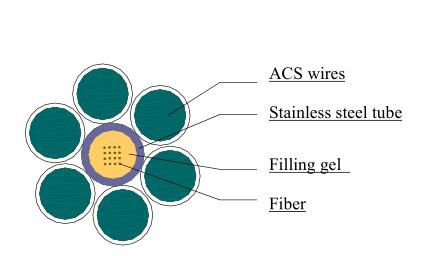

| Structure Drawing | Structure:central optical fiber SUS tube structure with single stranded layer |
| | Order Type Model | OPGW-36B1-48 [59;11] | OPGW-40B1-58 [71;16] |
| Max. fiber count | 36 | 40 |
| Tube size | φ3.2 mm | φ3.5mm |
| Cable diameter | φ9.6 mm | φ10.5 mm |
| Cross-section carry area | 48 mm2 | 58 mm2 |
| Cable weight | 338 kg/km | 400 kg/km |
| Rated Tensile Strength(RTS) | 59 kN | 71 kN |
| DC resistance at 20degC | 1.782 Ω/km | 1.490 Ω/km |
| Short current capacity (40~200degC) | 11 kA2@s | 16 kA2@s |
| Linear expansion coefficient | 13.0×10-6/degC | 13.0×10-6/degC |
| Young's modulus | 162.0 kN/mm2 | 162.0 kN/mm2 |
Related Products:
Warehouse:
Package&Shipment:
Founded in 1994, POWTECH invested by Taiwan, is an independently owned international corporation dedicating to develop, produce & distribute JETPOWER brand power supplies and OPTELEC brand optical cables.
The first JETPOWER branded online high frequency UPS was developed in 1994. Driven by customer requirements, we have developed OFF LINE UPS, Line-interactive UPS, Industrial Online UPS, outdoor UPS, telecom inverter, power inverter and home inverter. Through a decade of great efforts, we have made our JETPOWER branded power supplies widely applied in the fields of finance, telecom, electric power, petrochemistry, custom and military field etc, and have been honorably commented by clients. Besides, we also cooperate with many famous power supply companies by OED/ODM, and now our products have been sold worldwidely, including Europe, South America, Africa, Middle East, Asia etc.
As the fast development of power supply, We also expand our business to optical cable and accessories. In 2006, we have set up our own OPTELEC brand to develop, manufacture and distribute ADSS cable, OPGW cable, optical cable, Fusion Splicer, OTDR, Terminal tool kit, ADSS fittings, OPGW fittings, link fittings, wire mesh cable tray, preformed cable tray, cable trunking, cable ladders, STG modules, STG magazines and accessories. Till now, our OPTELEC brand optical cable and accessories have been used in more than 20 countries' telecom lines' construction and power transmission lines' construction.
Powtech has passed the ISO9001 international quality system certification and has established a complete quality system from material source, process, assembling to testing. All Powtech products have been approved by KEMA, SGS and CE (LVD/EMC) or by customer-appointed safety agencies.
Not only do we pride ourselves on competitive price, Advanced technology and top quality products but also we have value-added technical support. We can dispatch our engineer to customer's site for site installation and training, Or we can provide online service to solve any problem during installation & operation. On the priniciple that there is no customer too big or too small, Every customer deserves most professional service. POWTECH people anticipate growing and prospering with you, Embarking on a way of success.
