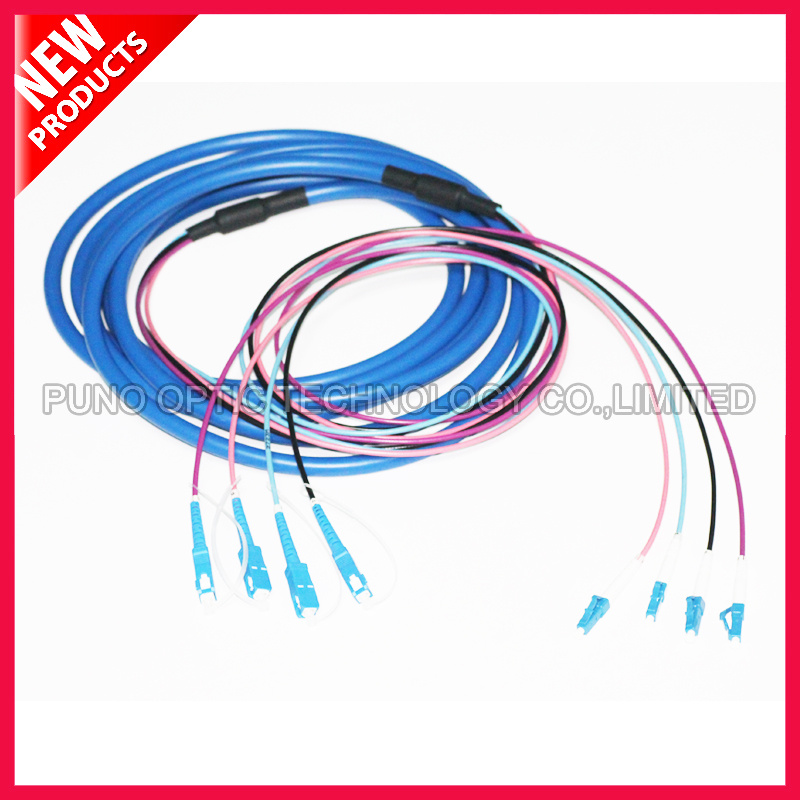

Optic Armored Blue Jacket SC To LC Fiber Jumper

Name: Optic Armored Blue Jacket SC To LC Fiber Jumper
Brand: all-electronics-online.com
SKU: 819535595
Availability: InStock
Rating: 4.4 (88 reviews)

Price:	US $ 12-15/Meter
Min Order:	1/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	PN-7746
Connector:	SC - LC
Fiber Type:	SM G657A1
Fiber Count:	4
Cable:	7.0mm
Color:	Blue
Wavelength:	1310nm
Member Strength:	Kevlar
Application:	Communication
Type:	Single-mode Fiber
Connection Structure:	SC
Certification:	ISO9001

Product Description

Optic Armored Blue Jacket SC To LC Fiber Jumper

Information Description:

Cable	7.0mm
Fiber Type	SM G657A1
Color	Blue
Fiber Count	4
Connector	SC-LC
Wavelength	1310nm

Features:

Full steel armoured protection from ceramic ferrule;
High tensile resistance & anti-pressure;
Strong anti- ultraviolet radiation;
High flexibility.

Application:

√ FTTH;
√ Defense communications;
√ Outdoor Emergency;
√ Buildings without protective cabling.

PUNO supply full series of fiber optic jumpers,Contains standard fiber jumper cable,waterproof patch cord/pigtail,OM3/0M4 patch cable, Armored patch cord,Ruggedised fiber optical jumper,MPO / MTP patch cable,Multi-core fiber jumper or pigtails and other special fiber jumpers.The LC,SC,FC,ST,MU,MTRJ,E2000,LC mini,ODC,PDLC connectors are available.PVC or LSZH jacket with customized length.

Technical Data:

Parameter		Singlemode			Multimode
Basic	Fiber connector	FC, SC, LC, ST, MU, MTRJ, MPO
	Ferrule End-face	PC	UPC	APC	UPC
	Insertion Loss	≤0.2dB	≤0.2dB	≤0.3dB	≤0.3dB
	Reflection Loss	≥50dB	≥55dB	≥60dB	≥35dB
	Ceramic Ferrule Specification	125.5um concentricity deviations:<=1um			127um concentricity deviations:<=3um
	Suitable Fiber	9/125um			50/125um,62.5/125um
End-face Geometry	Radius of Curvature	7~25mm		5~12mm	N/A
	Fiber Protrusion	≤50nm		≤100nm	N/A
	Fiber Under Cut	≤100nm		≤100nm	N/A
	Apex offset	≤50um
Mechanical	Exchangeability	≤0.2dB
	Salt Spray	≤0.1dB
	Drop	≤0.2dB(1.5M, 5 drops)
	Vibration	IL ≤0.2dB(550Hz, 1.5mm)
	Repeatability	≤ 0.1dB(1000 times)
	Durability	>1000 times
	Operating Temperature	-40 ~ +85
