| Prod Model: |
92958-454 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Fiber: |
Single-Mode or Multi-Mode |
| Fiber Count: |
4~12 Cores |
| Max. Length: |
500m |
| Application: |
Probe |
| Certification: |
CE |
| Type: |
Single-Mode or Multi-Mode |
| Connection Structure: |
Sc, FC, LC, St, MTRJ, MPO |
| Brand: |
Koc |
| Sheath Material: |
Lszh, PVC, PE, Pue |
Product Description
Features:Using stainless steel flexible tube to protect optical fiber, make sure no damage to it.
Prevent the destroy by improper twist, high resistance of tensile strength, pressure, and mouse bite.

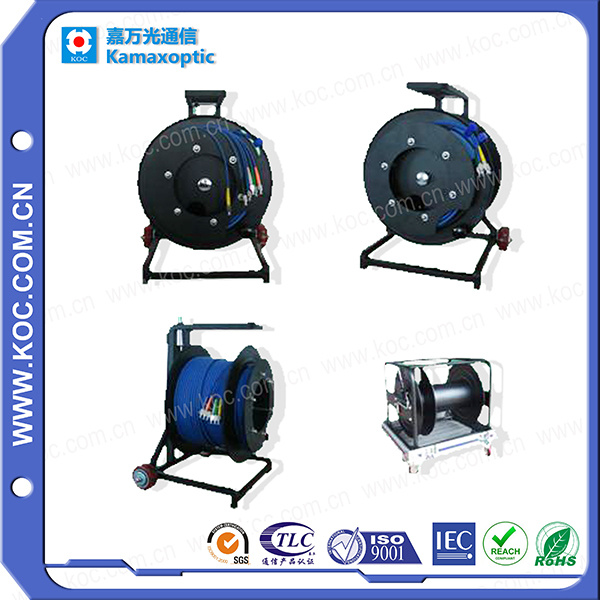

With the strong reel to take up the line, convenient for movement and construction. A twofold
Braking manner to prevent from the damage during construction.
No damage to optical fiber during deploying.
PVC coating is easily identified with 12 standard colors, and mated with solid splitter.
The output/input connectors are optional with various connectors complying with international
Standard, such as FC/SC/ST/MU/LC.
Configuration:4-12 cores 0.6mm Tight Buffer Fiber with all chromatogram (SM, MM<50/125, 62.5>OM2,
OM3, G655, resisting slightly curved fiber) + Kevlar + stainless steel flexible hose+ stainless steel weaving(increase the ability of torsion resistant; Prevent fiber from the damage of torsional stress from outside)+jacket(various materials to be chosen).
APPLICATIONS:Live broadcasting transmission
National defence communication
Engineering salvage
Allocation in CO
| Connector shape | SC/FC/ST/LC/MU/MTRJ/E2000(according to the clients require) |
| Sheath color | blue |
| Type | 4,6,8,12 |
| FO Type | SM |
| Sheath material | Flame-resistant PVC(LSZH) |
| Type | SM/MM |
| Connection Mode | PC | UPC | APC |
| Connector shape | FC/SC/ST/MU/LC/MT-RJ/E2000 |
| Repeatability | ≤0.1dB | | |
| Insert Loss | ≤0.2dB | ≤0.2dB | ≤0.2dB |
| Return Loss | ≥45dB | ≥50dB | ≥60dB |
| Vibrancy Capacity | ≤0.2dB |
| Interchangeability | ≤0.2dB |
| Pressure Resistance | 3000N |
| Operating Temperature | -40ºC~+85ºC |
| Quantity of fibers | 4 | 6 | 8 | 12 |
| Tensile Resistance | Branch Conduits | 200N |
| Main Cord | 800N |
| OD of Cable | Branch Cord | 2.85mm±0.1mm |
| Main Cord | 6.5mm | 6.5mm | 7.5mm | 7.5mm |
| Length(M) | 60/100/150/300/500 |
