Ningbo Geyida Cable Technology Co., Ltd. >> Optical Fiber Cable Figure 8 Self-Supporting

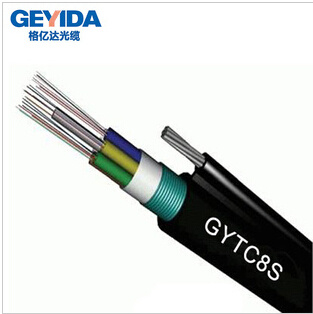

Optical Fiber Cable Figure 8 Self-Supporting

Optical Fiber Cable Figure 8 Self-Supporting
Price: US $ 0.4/Meter
Trade Terms: FOB,CFR,CIF
Min Order: 5000/Meter
Pay Type: L/C,T/T,Western Union
Prod Model: GYTC8S
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Jacket Color: Black
Fibers: 6-60
Size: 4.1mm /10.0mm
Central Strength Member: 1.5mm Steel
Strength Member: 2.1mm Steel
Filler: 1.95mm PP
Loose Tube: 1.95mm PBT
Application: Probe
Type: Single-mode Fiber
Connection Structure: FC
Certification: CCC

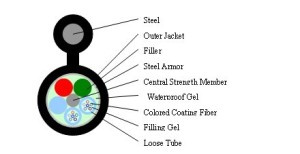

Product Description



Heigh tensile strength of stranded wires meet the requirement of self-supporting and reduce the installation cost;

Good mechanical and temperature performance.

Heigh strength loose tube that is hydrolysis resistant;

Specially tube filling compound ensure a critical protection of fiber PE sheath protects cable form ultraviolet radiation;

Single fiber reinforoad plastic as the central streng member;

Loose tubs filling compound;

100% cable filling core filling;
Steel moisture barrier.
GYTC8A
Cable Type(Increased by 2 fibers)Fiber CountTubesFillersCable Diameter mmCable Weight kg/kmTensile Strength Long/Short Term NCrush Resistance Long/Short Term N/100mmBending Radius Static/Dynamic mm
GYTC8A-2-6Xn2-6149.5*18.3218600/1500300/100010D/20D
GYTC8A-8-12Xn8-12239.5*18.3218600/1500300/100010D/20D
GYTC8A-14-18Xn14-18329.5*18.3218600/1500300/100010D/20D
GYTC8A-20-24Xn20-24419.5*18.3218600/1500300/100010D/20D
GYTC8A-26-30Xn26-30509.5*18.3218600/1500300/100010D/20D
Ningbo Geyida Cable Technology Co., Ltd. is located in the tsz east industrial zone, cixi city of zhejiang province, located in south of Shanghai. In the east is the world-famous deepwater port, ningbo, traffic is convenient, the environment is superior. The factory covers an area of 20, 000 square meters, is a modern enterprise system established in accordance with the high-tech companies. Company introduction in modern technology and equipment, the introduction of modern management methods and systems. Modern quality management program, make product in every link in production got the quality guarantee. The company strictly according to ISO9002: 2000 quality management standard operation, international from product design, production, inspection, the whole management process of the service quality.

Company main product: All kinds of outdoor optical cable, indoor optical cable, optical line jumpers, optical fiber accessories etc. The company will continue to fight in the same storm-tossed boat "business" spirit of enterprise, in line with "brand, cooperation, innovation" business philosophy, adhere to the "customers first" service concept. Committed to build brand integrity, optic communications market oriented, innovative efforts to develop and produce products with excellent performance of cable. Enable the company to become the first-class modernized enterprise and unremitting efforts. Hope in the mutual benefit and win-win with domestic and foreign enterprises on the basis of establishing business relations and cooperation, and to develop and create a brilliant future with you! !
