Optical Fiber Connector for Commuication Field U-Senda

Name: Optical Fiber Connector for Commuication Field U-Senda
Brand: all-electronics-online.com
SKU: 803799165
Availability: InStock
Rating: 4.3 (74 reviews)

Price:	US $ 0.41-0.45/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	fiber optic connector
Uniboot:	Two Connector Used One Boot
Cable Diameter Szie:	0.9mm,2.0mm, 3.0mm
Housing Color:	Green,Blue,Beige,Aqua,Magenta, Black
Housing Material:	Pei, ABS
Boot Type:	Switchable Uniboot
Cable Jacket Material:	PVC, LSZH,Ofnr,Ofnp
Cable Jacket Color:	Green; Blue; Beige;Aqua'magenta; Black;
Certification:	ISO, Reach, RoHS, Tell, Ce,IEC,Tlc,SGS
Transmission Medium:	Singlemode, Multimode
Structure:	LC,FC,St,Sc,Mu
Number Of Cores:	Simplex, Duplex
Ferrule Endface:	PC,Upc,APC
Light Source TYPE:	Fiber Optic Communication
Connector Type:	LC,FC,St,Sc,Mu

Product Description

U-Senda

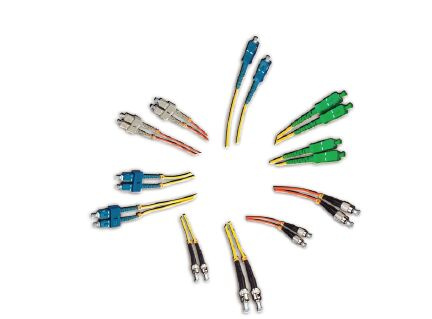

Optical Fiber Connector

The optical connector (optical fiber connector) is an implementation of the optical path
jumper connections, passive devices to achieve a basis for effective transmission optical
signal.

Product Category:
-Generic Patch-Cords
-Multi-core pigtail
-FTTH Drop Cable
-Non-standard type pigtail
-Integrated tray

Features:
- Low insertion loss and back reflection loss
- Behind-the-Wall style short connector
- Compact, pull-proof design
- High precision alignmen

Applications:
- Gigabit Ethernet
- Video
- Multimedia
- Premise installations
- Telecommunication networks
- Active device termination

SPECIFICATIONS

ITEM	PARAMETER
Applicative Connector Type	SC,LC,FC,ST,MU,D4,DIN
Fiber mode	Single mode	Multi-mode
Test wavelength	1310nm, 1550nm	850nm, 1300nm
Insertion Loss	typical≤0.20dB,Max≤0.30dB	typical≤0.15dB,Max≤0.25dB
Return Loss	UPC≥50.0dB,APC≥60.0dB	≥35.0dB
Durability	≤0.20dB typical change,1000 mating
Applicative cable OD.	∮0.9mm/∮1.8mm&∮2.0mm /∮3.0mm (MU only ∮0.9mm/∮2.0mm)
Connector Ferrule OD.	∮2.5mm:SC, FC,ST,DIN; ∮2.0mm:D4; ∮1.25mm:LC,MU
Angle BOOT	SC,LC(45 or 90 degree)
Operating Temperature	-20ºC to +70ºC
Storage Temperature	- 40ºC to +85ºC
Ferrule Specification	125.3+1/-0μm, Concentricity: ≤1.0μm	127+3/-0μm, Concentricity: ≤3.0μm

Shenzhen KOC Communication Co., Ltd. Is specialized in fiber optic communication product manufacture. Our products range from the basic components to end products, including passive and active categories as follows: Basic Components: Connector kits, Adapter kits, Attenuator kits.

Passive products: Connector, Adapter, Attenuator, Patch-cord, ODF and enclosure.

Active products: Media converter, Transmitting and receiving assemblies, such as laser diode assembly, PD and PIN/TIA assembly, sub-assemblies such as TOSA, ROSA, BOSA.

FTTH System: Gpon: OLT, ONU, PLC

Headquarter located in Shenzhen, China, we have branch companies, representatives and distributors in Europe, America, Middle East, South Asia. KOC products are well accepted and sold in these areas.

We provide all our products with high quality, competitive price, short delivery lead time and excellent after-sales services.
