Optical Fiber Fast Connector for Sc/Upc Patch Cord Applied in Network and Wireless

Name: Optical Fiber Fast Connector for Sc/Upc Patch Cord Applied in Network and Wireless
Brand: all-electronics-online.com
SKU: 834927885
Availability: InStock
Rating: 4.3 (133 reviews)

Price:	US $ 0.3/Piece
Min Order:	1000/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	Optical Fiber Fast Connector
Transmission Medium:	Multimode
Structure:	SC
Number Of Cores:	Single-Core
Ferrule Endface:	PC(',UPC)
Light Source TYPE:	Fiber Optics

Product Description

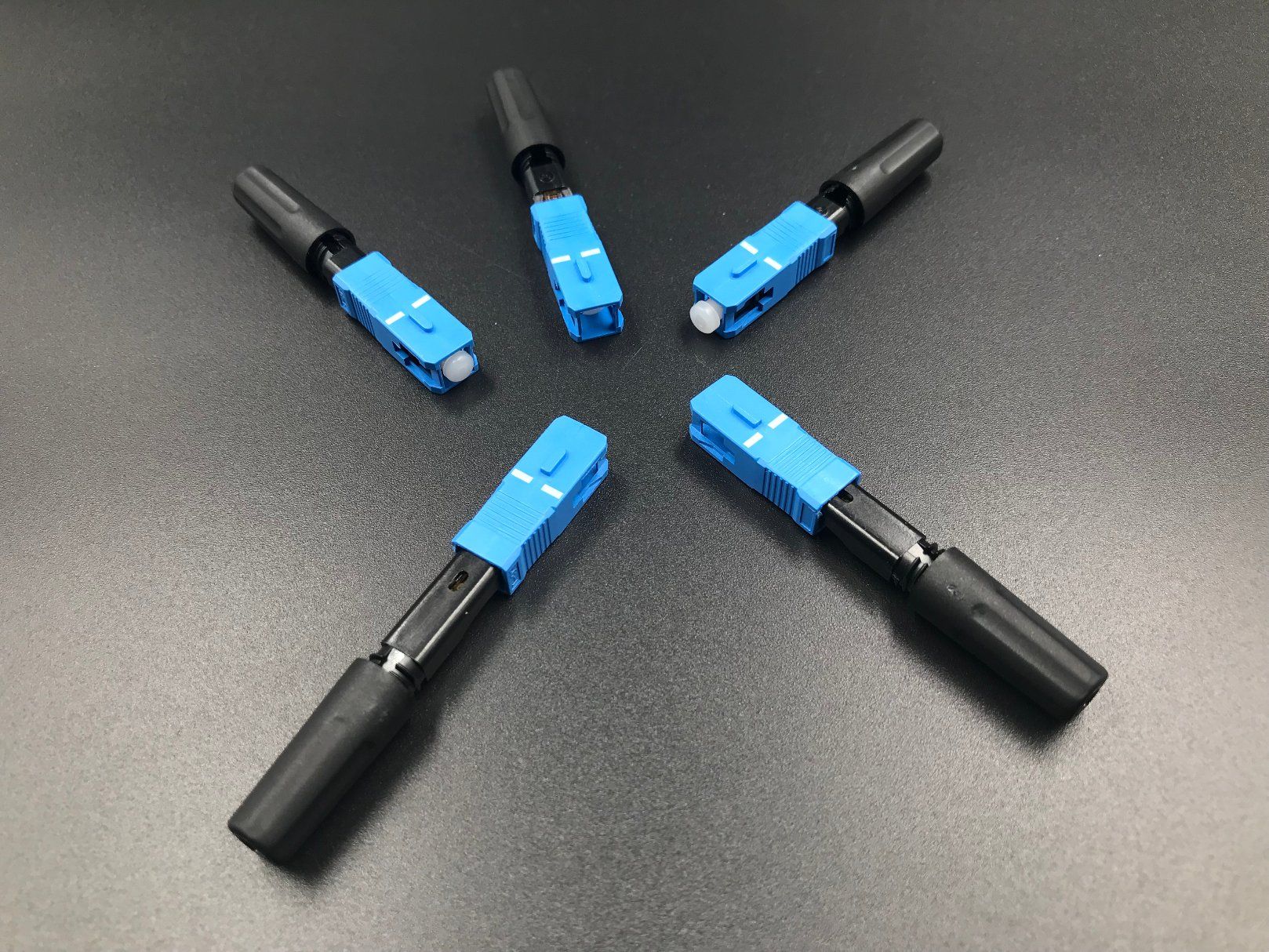

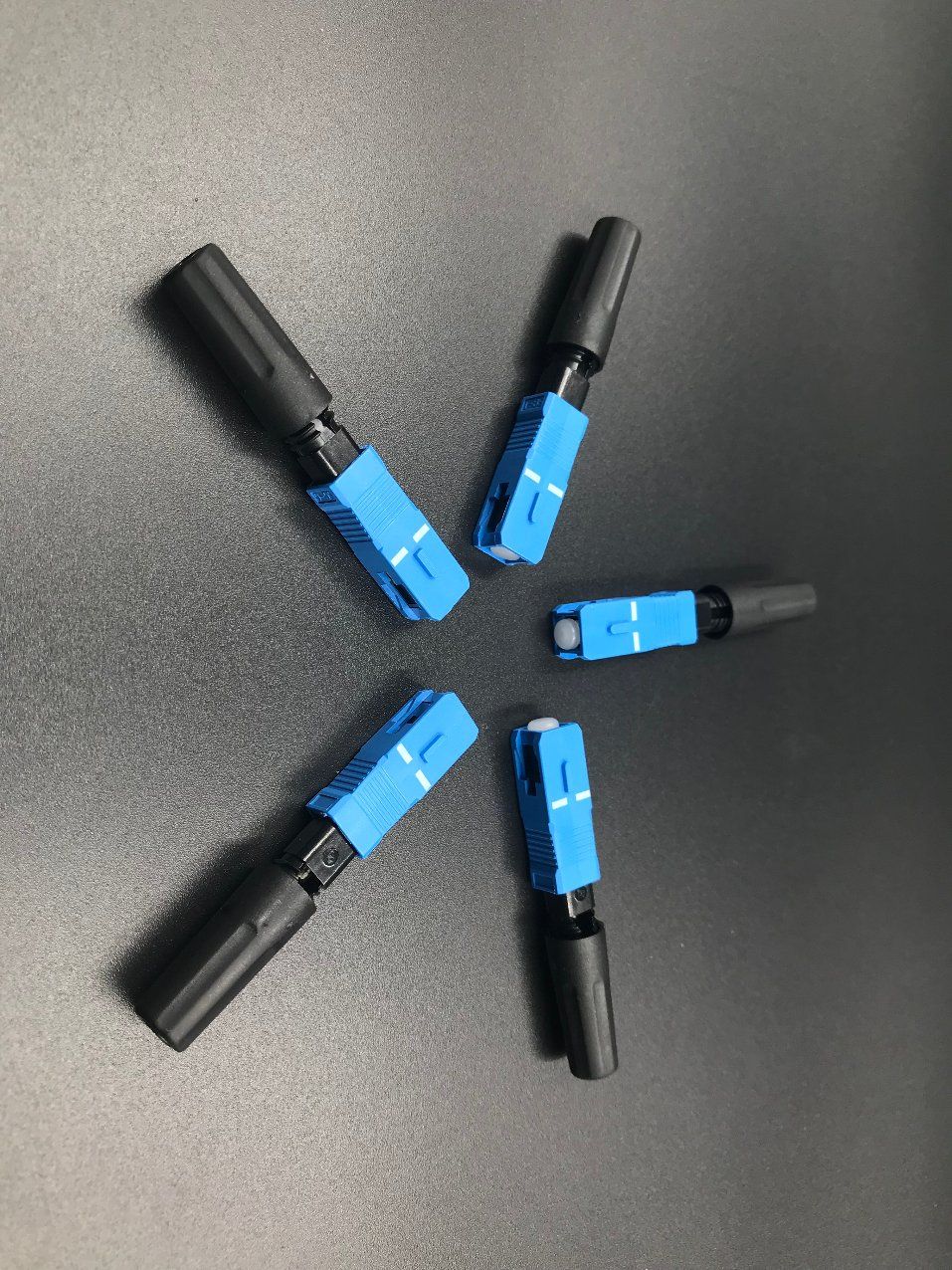

FIbe Optic Fast Connector for Optifcal Access Network &
Fiber Optic Data Transmission

Feature:
1. Easy to assemble and disassemble
2. Low insertion loss
3. High return loss
4. Can be used many times, reduce cost
5. Good repeatability and exchangeability
6. Widely used

Application:
1. Fiber optic communication system
2. Optical access network
3. Fiber optic data transmission
4. CATV
5. Fiber optic equipment

Specification:

Item	Fast Connector
Technical Parameter	Suitable cable Outer diameter	2*3.0mm
	Insertion Loss	Average≤0.25dB,s Max≤0.5dB
	Return Loss	UPC≥45dB, APC≥50dB
	Repetitive Assemble	Assemble times: 5
	Tensile	△IL<0.3dB @ 30N
	Operating temp.	-40ºC~+70ºC
	Storage temp.	-40ºC~+80ºC
Remark	Embeded Optical fiber type structure Pressure part adopt new unique structure design Without the glue and grinding Widely used in the opening in the optical fiber terminal into FTTH

Order Information:

SC Embeded fast connector
Single mode 9/125 PC	0.9mm,2.0mm, 3.0mm (OD)
Single mode 9/125 APC	0.9mm,2.0mm, 3.0mm (OD)
Multi-mode 50/125	0.9mm,2.0mm, 3.0mm (OD)
Multi-mode 62.5/125	0.9mm,2.0mm, 3.0mm (OD)

----------------------------------------------------FAQ---------------------------------------------------

Q1. Can I have a sample order for this product? What' MOQ of it?
A: Yes welcome send sample order for test. MOQ is 1 piece.

Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks.

Q3: What' s the payment term
A: We usually use TT(Telegram Transfer) in advance, Western Union. Other payment method
is
negotiable.

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline
and sea shipping
also optional.

Q5: What' s the freight of it?
A: It depends on the order quantity. We have some reliable ship forwarders. We will offer cost
effective method for you.

Q6: Do you offer guarantee for the products?
A: Yes, we offer 1-2 years warranty according to different products.

Q7: What action will you take if there are some product problems?
A: If there are defective ones in the batch of products, we will offer spare ones for.

OPELINK Technology is a high-tech enterprise with a focus on the design and the production of optical communication and accessories. We are among the industry leaders here in China and we own that to our highly skilled and experienced production staff and engineers. We manufacture a complete selection of premium quality products including fiber optic splitters, optical WDM, fiber optic circulator and many other active optical components.

Every stage PF production in our workshop is carefully controlled, from raw material selection to assembly, packaging and transport. We do this to guarantee quality and ensure that all of our customers are satisfied with their delivery.

In addition to our products sold in China, we also do business in France, the United States, Brazil, Russia, and many other countries. So far we have cooperated with Ericsson (Spain), Vodafone (Hungary), etc.

Moreover, OPELINK employs a professional foreign team in which most of members have more than 5 years experience in optical communication equipment.
