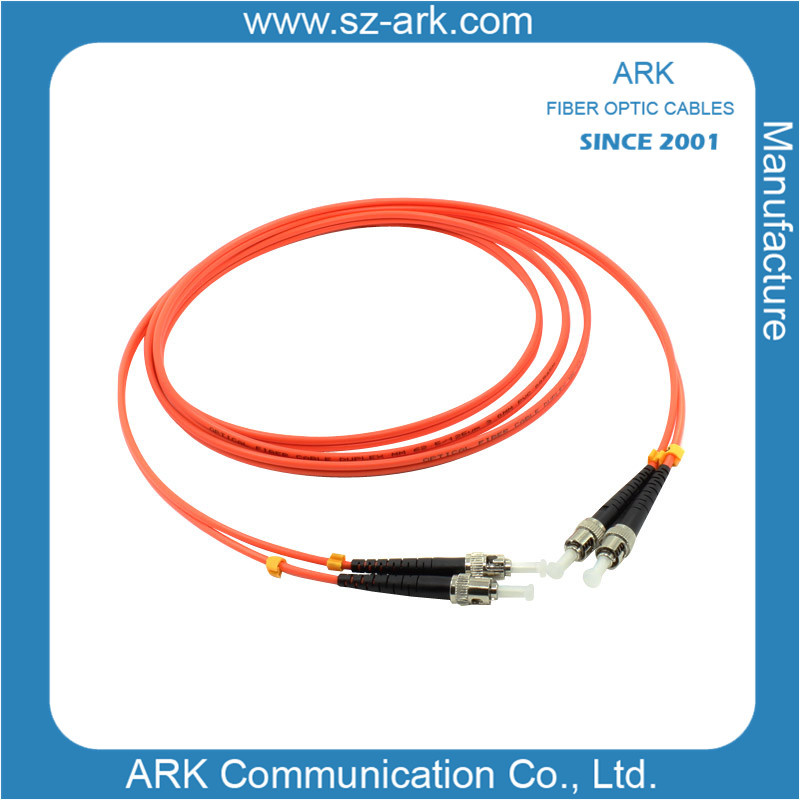

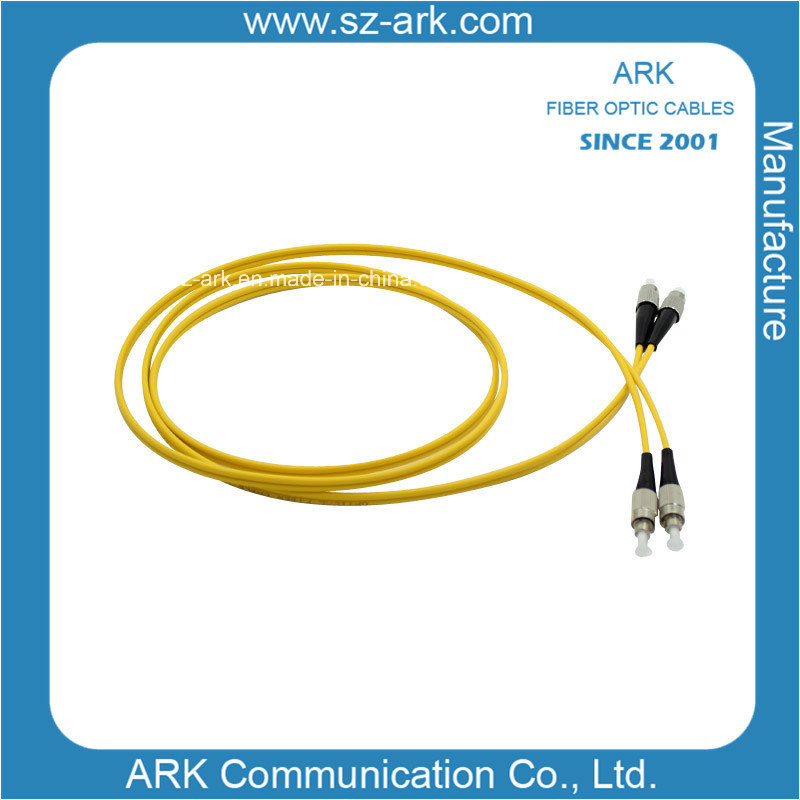

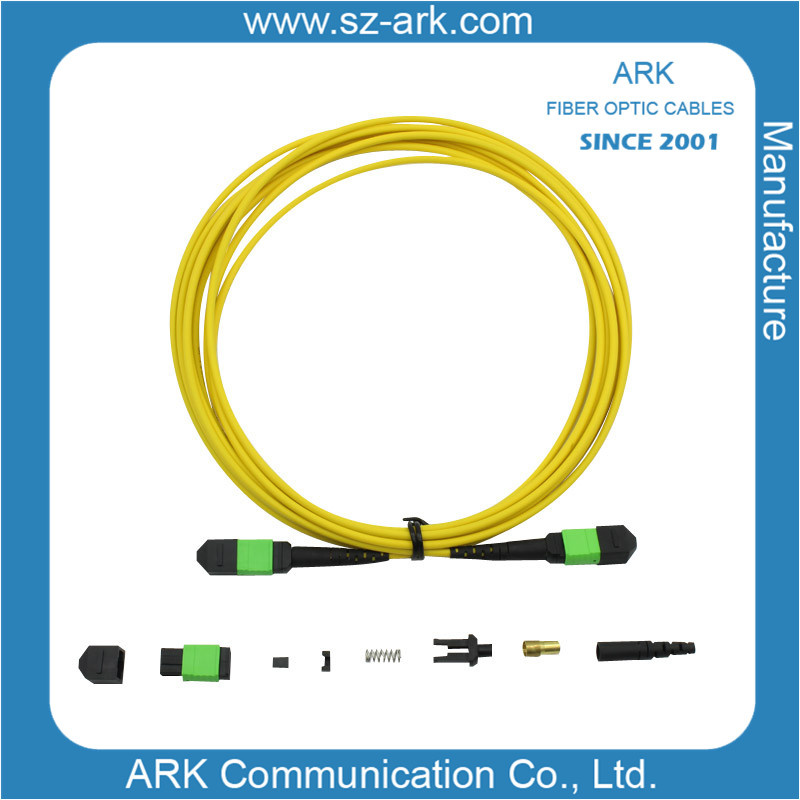

Optical Fiber FTTH Cable Connector

Name: Optical Fiber FTTH Cable Connector
Brand: all-electronics-online.com
SKU: 765746185
Availability: InStock
Rating: 4.8 (20 reviews)

Price:	US $ 1.5-4.5/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	fc
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Cable Diameter Szie:	0.9mm, 1.6mm, 1.8mm, 2.0mm, 2.4mm, 2.8mm, 3.0mm
Connector Housing Color:	Blue, Beige, Aqua, Black, Green, Red, Yellow
Connector Boot Color:	Blue, Beige, Aqua, Black, Green, Red, White
Clips:	with Clips, Without Clips
Length:	0.5m, 1m, 2m or Customized
Cable Jacket Color:	Blue, Beige, Aqua, Green, Yellow, Customized
Connector Type:	Simplex, Duplex
Application:	FTTX
Type:	Multi-mode Fiber
Certification:	SGS
Connection Structure:	C/Sc/LC/St/MPO/MTRJ/SMA
Brand:	Ark
Sheath Material:	PVC; Lszh; PE; Ofnp; Ofnr

Product Description

ARK Communication Co., Ltd has established a production base of patch cords in 2005 therefore besides various connectors and corresponding adapters we can make jumpers as requested based on different cables Our product comes in many types such as simplex duplex multi-core bunchy and ribbon type Up to now ,we own about 9 years of production experience and we provide patch leads with ligh quality and at a reasonable price for ovre 300 enterprises at home and abroad.

Patch Cord Production Conventional Process Flow Diagram:
Order Confirmation →Cleaving Cable →Passing Through Components And Parts →Striping Cable And Striping Fiber →Epoxy Defoaming →Checking Fiber And Cleaning →Polishing →Inserting Fiber And Curing →End Face Initial Inspection →Optical Indexes Testing →End Face Inspection →Assembling and Crimping →Machine Grinding →Cleaving Fiber And Manual Grinding → NG →Tensile Test →Analysis →Analysis →Appearance Inspection →Packing

Features
1.Low insertion loss
2.Mechanicl properties meet standards of IEC874-7 and CECC86115-80.
3.All materials meet the RoHS standard.
4.The patch cable can be customized according to customers specific requirements
5.Compliant with Telcordia GR-326-CORE,IEC and ROHS standards
6.Strict quality testing:IL and RL 100% test.
7.A variety of BOOT color choices.

Applications
1.Wiring of local area network between different enterprise buildings
2.Connection of optical links in optical active devices
3.Wiring in communication base station and distrinbtion case
4.Production and testing of optical devices
5.Optical fiber communication system,CATV and telecommunication network
6.LANs and WANs
7.FTTx
SPECIFICATIONS

ITEM	Parameter
	Single-mode	Multi-mode
Test wavelength	1310nm, 1550nm	850nm, 1300nm
Insertion Loss	typical≤0.20dB,Max≤0.30dB	typical≤0.15dB,Max≤0.25dB
Return Loss	UPC≥50.0dB,APC≥60.0dB	≥35.0dB
Repeatability	≤0.10dB
Interchangeability	≤0.20dB
Durability	≤0.20dB typical change,1000 mating
Tensile Strength	≥120N(without 0.9mm patch-cord) or customized
Operating Temperature	-20ºC to +70ºC
Storage Temperature	-40ºC to +85ºC

ORDERING OPTIONS

Fiber Type	Cable Type	Connector Color	Boot Size	Boot Color	Polishing Type	Length
SM: 9/125μm	Simplex	Beige	0.9mm	White	UPC	Customized
MM: 50/125μm	Duplex	Blue	2.0mm	Blue	APC
MM: 62.5/125μm	4 fiber	Green	2.4mm	Green
MM: OM3/150	6 fiber	With clip is available.	3.0mm	Red
MM: OM3/300	8 fiber		45 degree boot	Black
MM: OM3/550	12 fiber		90 degree boot
	24 fiber

Note: More datasheets please contact our salesman.

Operating since 1998

Ark was established in 1998, during a time when optical communications was a fledgling industry in China. As an experienced manufacturer, we provide a wide range of products including SM/mm fiber-optic connectors, multiplexers, optical attenuators, MPO cassettes and optical distribution frames.

Providing OEM and Training Services

Our engineering team can design custom products in accordance with clients' requirements. These specialized products are available with bilingual (English and Chinese) installation manuals. OEM and training services can be provided upon request. We began as a school-run factory and now widely recognized as a pioneer in the field.

When the National Research Institute of Telecommunications completed the first trial fiber-optic connector in China, we became a designated manufacturer. Our double status as a learning institution and a production center provided the perfect accommodations for this important project. An experienced taskforce of technicians had worked round the clock to put the new technology into production. Months of dedication and countless trials allowed us to successfully implement the prototype technology into finished products. Extensive collaboration with research centers enabled us to yield the first-ever domestically produced fiber-optic connector. This achievement marked the beginning of a new era for the Chinese optical communications industry.

We have established a production base in Jiangxi for the focused production of fiber-optic connectors and adapters. In 2005, we built a production facility for jumpers and attenuators in Shenzhen. Its establishment was complimented with the addition of an independently operated sales center and R&D institute.

Meeting RoHS and SGS Standards

We have successfully passed the ISO 9001 certification because of our meticulousness in the whole production process. Advanced manufacturing techniques and premium raw materials ensure the outstanding quality of our competitively priced products. All our products are compliant with RoHS and SGS standards.

Trusted by Well-known Companies

Our major clients include well-known companies such as Shenzhen Huawei Technologies, Wuhan Acceling Technologies, Shenzhen Sunsea Telecommunications and Luoyang Aviation Electrical Factory. We are the only supplier of SC optical connectors for the Ericsson (Europe). We are also the preferred supplier of the Telefonica (China branch).
