Optical Fiber Loopback for LC Fiber

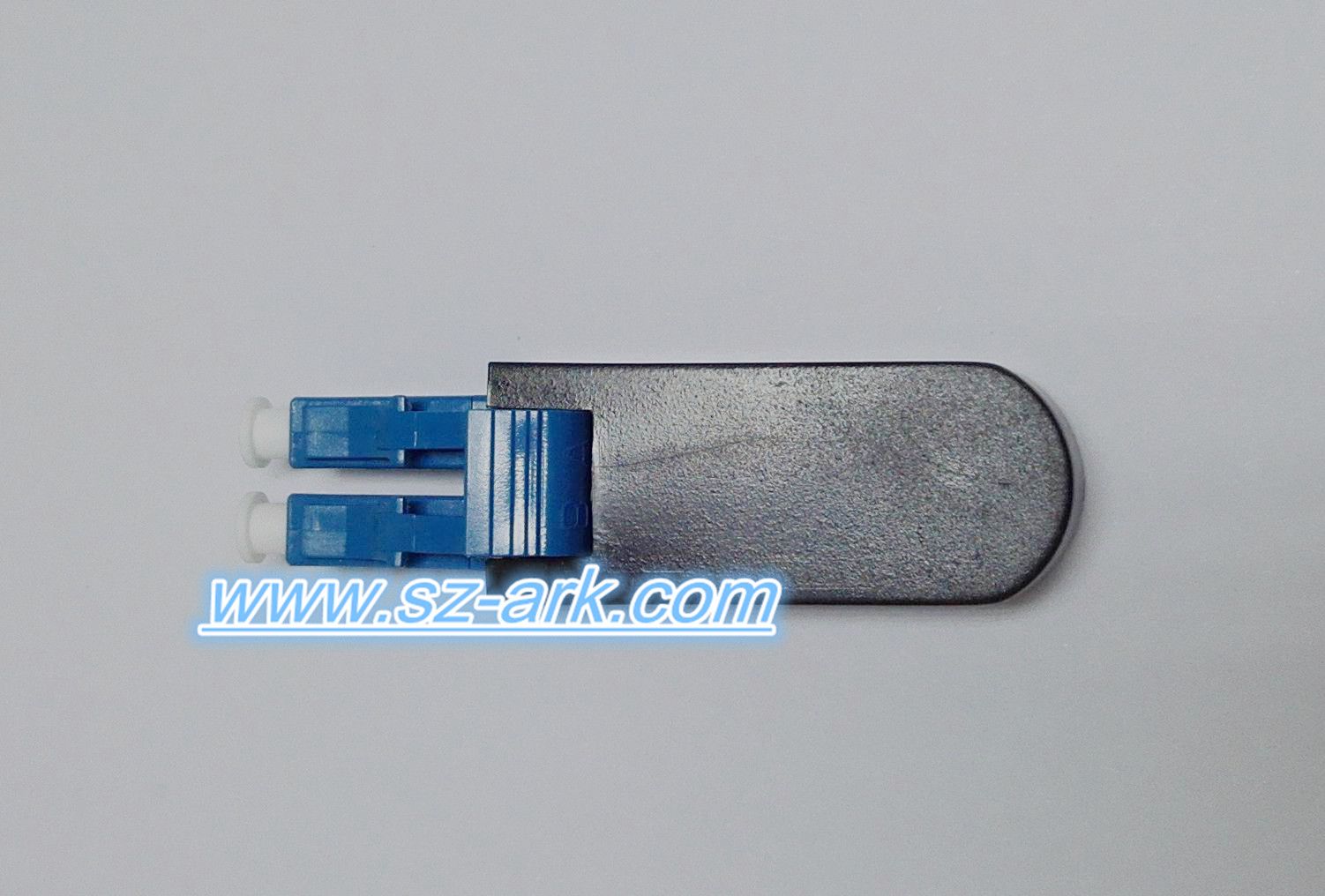

Name: Optical Fiber Loopback for LC Fiber
Brand: all-electronics-online.com
SKU: 760154225
Availability: InStock
Rating: 4.9 (41 reviews)

Price:	US $ 2.2-2.7/Piece
Trade Terms:	FOB,others
Min Order:	10/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	LC loopback
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Fiber Type:	Singlemode Multimode
Housing Color:	Blue, Beige, Aqua
Mode:	Simplex, Duplex
Housing Material:	ABS
Type:	Single-mode Fiber
Application:	Communication
Certification:	ISO9001
Connection Structure:	ST
Sheath Material:	Lszh,PVC

Product Description

Optical Loopback series

BRIEF INTRODUCTION
Loopback provides a media of return path for a signal, no matter the signal is for testing purposes or network restoration. In the case of testing, the loopback signal is used for diagnosing a problem. Sending a loopback test to network equipment, one at a time, is a technique for isolating a problem. Its performance is as good as that of a general. Available type including SC, MT-RJ, MU and LC. Bare fiber, 0.9mm cable, 2.0/3.0mm cable are all available.

FEATURES
Low insertion loss and high return loss
Good exchangeability and durability
Compact design

SC type

Short wavelength devices
Compatible with Fast Ethernet
Fiber Channel, ATM, and Gigabit Ethernet

APPLICATIONS
Device pig-tailing
Premise networks
Patch panel applications

LC type

Communications connections
Equipment interconnection
Loopback for network components testing

SPECIFICATIONS

ITEM	PARAMETER
	Single mode	Multi-mode
Test wavelength	1310nm, 1550nm	850nm, 1300nm
Insertion Loss	typical≤0.20dB,Max≤0.30dB	typical≤0.40dB,Max≤0.50dB
Return Loss	UPC≥50.0dB,APC≥60.0dB	≥35.0dB
Repeatability	≤0.10dB
Interchangeability	≤0.20dB
Durability	≤0.20dB typical change,1000 mating
Operating Temperature	-20ºC to +70ºC
Storage Temperature	-40ºC to +85ºC

Operating since 1998

Ark was established in 1998, during a time when optical communications was a fledgling industry in China. As an experienced manufacturer, we provide a wide range of products including SM/mm fiber-optic connectors, multiplexers, optical attenuators, MPO cassettes and optical distribution frames.

Providing OEM and Training Services

Our engineering team can design custom products in accordance with clients' requirements. These specialized products are available with bilingual (English and Chinese) installation manuals. OEM and training services can be provided upon request. We began as a school-run factory and now widely recognized as a pioneer in the field.

When the National Research Institute of Telecommunications completed the first trial fiber-optic connector in China, we became a designated manufacturer. Our double status as a learning institution and a production center provided the perfect accommodations for this important project. An experienced taskforce of technicians had worked round the clock to put the new technology into production. Months of dedication and countless trials allowed us to successfully implement the prototype technology into finished products. Extensive collaboration with research centers enabled us to yield the first-ever domestically produced fiber-optic connector. This achievement marked the beginning of a new era for the Chinese optical communications industry.

We have established a production base in Jiangxi for the focused production of fiber-optic connectors and adapters. In 2005, we built a production facility for jumpers and attenuators in Shenzhen. Its establishment was complimented with the addition of an independently operated sales center and R&D institute.

Meeting RoHS and SGS Standards

We have successfully passed the ISO 9001 certification because of our meticulousness in the whole production process. Advanced manufacturing techniques and premium raw materials ensure the outstanding quality of our competitively priced products. All our products are compliant with RoHS and SGS standards.

Trusted by Well-known Companies

Our major clients include well-known companies such as Shenzhen Huawei Technologies, Wuhan Acceling Technologies, Shenzhen Sunsea Telecommunications and Luoyang Aviation Electrical Factory. We are the only supplier of SC optical connectors for the Ericsson (Europe). We are also the preferred supplier of the Telefonica (China branch).
