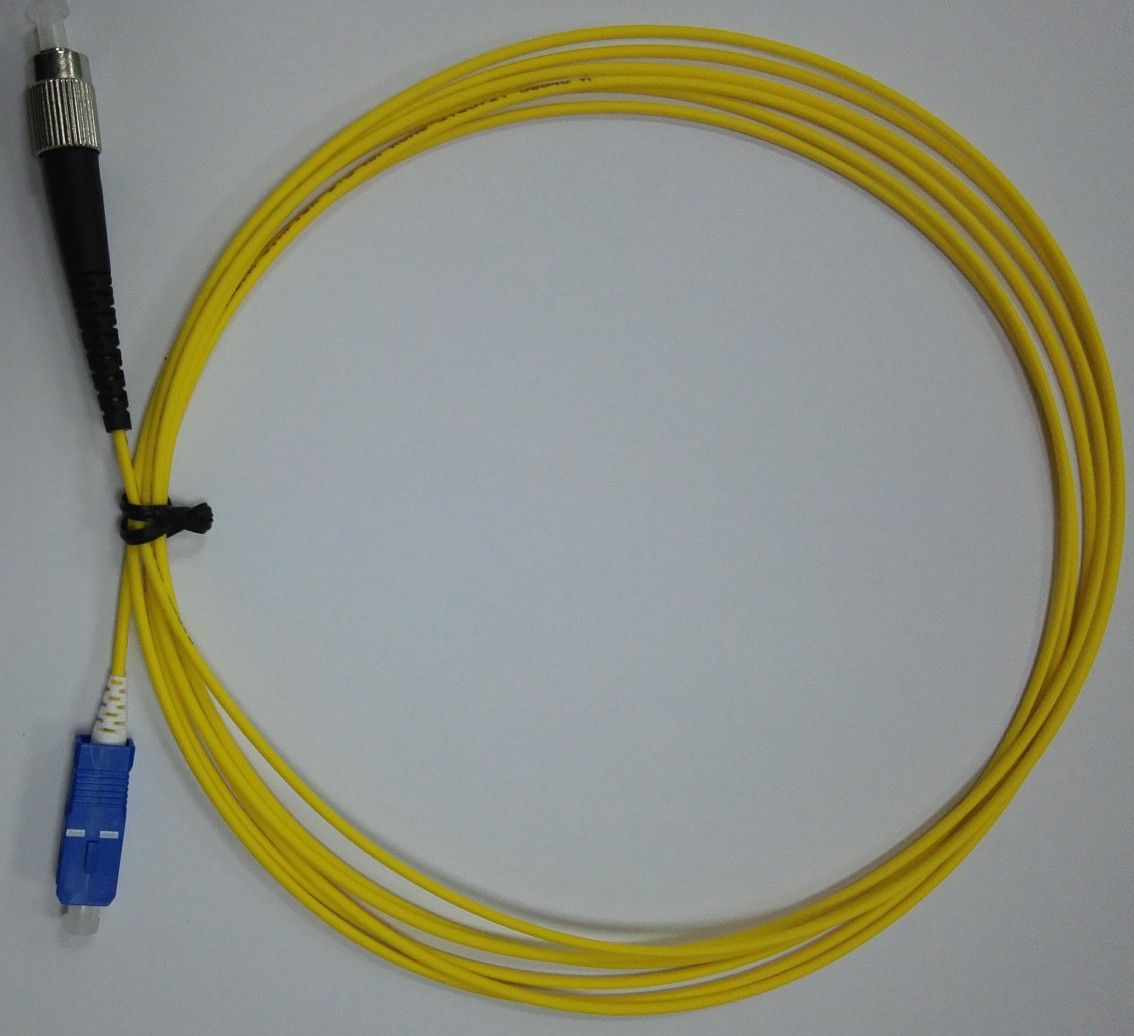

Optical Fiber Patch-Cord with Short Boot

Name: Optical Fiber Patch-Cord with Short Boot
Brand: all-electronics-online.com
SKU: 820174455
Availability: InStock
Rating: 4.5 (113 reviews)

Price:	US $ 1.1-1.2/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	sc, st, lc, fc
Yellow Cable:	9/125
2.0mm:	Blue
PVC:	LSZH
G652D:	Om3
Om4:	G657A1
G657A2:	G655
Application:	Medicine
Type:	Single-mode Fiber
Connection Structure:	SC
Certification:	CCC

Product Description

APPLICATIONS
CATV
Telecommunication networks
Active device termination
Metro
Local Area Networks (LANs)
Data processing networks
Test equipment
Premise installations
Wide Area Networks (WANs)

FEATURES
Low insertion loss and back reflection loss
Good exchangeability
Good Durability
High temperature stability
Standard: Telcordia GR-326-CORE
SPECIFICATIONS

	Single mode	Multimode
Insertion Loss	Typical≤0.2dB, Maximum≤0.3dB	≤0.25dB
Return Loss	≥50 dB (PC) ≥60 dB (APC)	≥30 dB
Repeatability	≤0.1
Durability	≤0.2 dB typical change, 1000 matings
Interchangeability	≤0.2dB
Tensile strength	>70N
Operating Temperature	-40 to + 85°C

ORDERING OPTIONS

Connector Color	Boot (cable) Size	Boot Color	Fiber Type	Cable number	Application	Length
Beige	0.9mm	Beige	9/125μm (SM)	Simplex	PC	Customized
Blue	2.0mm	Black	50/125μm(MM)	Duplex	APC
Green	3.0mm	Blue	62.5/125μm(MM)	Fan-out (4f)
		Green		Fan-out (6f)
		Gray		Fan-out (8f)
		Red		Fan-out (12f)
		White		Fan-out (24f)

Shenzhen KOC Communication Co., Ltd. Is specialized in fiber optic communication product manufacture. Our products range from the basic components to end products, including passive and active categories as follows: Basic Components: Connector kits, Adapter kits, Attenuator kits.

Passive products: Connector, Adapter, Attenuator, Patch-cord, ODF and enclosure.

Active products: Media converter, Transmitting and receiving assemblies, such as laser diode assembly, PD and PIN/TIA assembly, sub-assemblies such as TOSA, ROSA, BOSA.

FTTH System: Gpon: OLT, ONU, PLC

Headquarter located in Shenzhen, China, we have branch companies, representatives and distributors in Europe, America, Middle East, South Asia. KOC products are well accepted and sold in these areas.

We provide all our products with high quality, competitive price, short delivery lead time and excellent after-sales services.

About KOC

Located in Shenzhen, China, KamaxOptic Communication Co. Ltd., well-known as KOC, is specialized in fiber optic communication products and accessories. She offers precise customized solutions for various customers involved in telecommunication, broadcast, CATV and network industry worldwide.

Our quality is guaranteed by the scientific management with the assistances of professional personnel, advanced testing equipments and efficient ERP system under the strict guidance of ISO9001: 2000, from supplier evaluation to inbound material examination, from processing monitoring to permanent inspection, from packing to shipping. We do care for every detail!

To be dedicated to be a popular manufacturer with her quality products, satisfactory services and attention to details through the full commitment of each personnel to work as one team in an effort to exceed our customer expectations.

To operate the business in a transparent and honest manner, that our customers, our associates and our business partners are proud to play their part in our success.

Please visit us website for more information: http://www.koc.com.cn
