SHENZHEN FIBERLINK COMMUNICATION LIMITED >> Optical Fiber Sc Adapter for Auto Shutter Comply with UL94 of V0

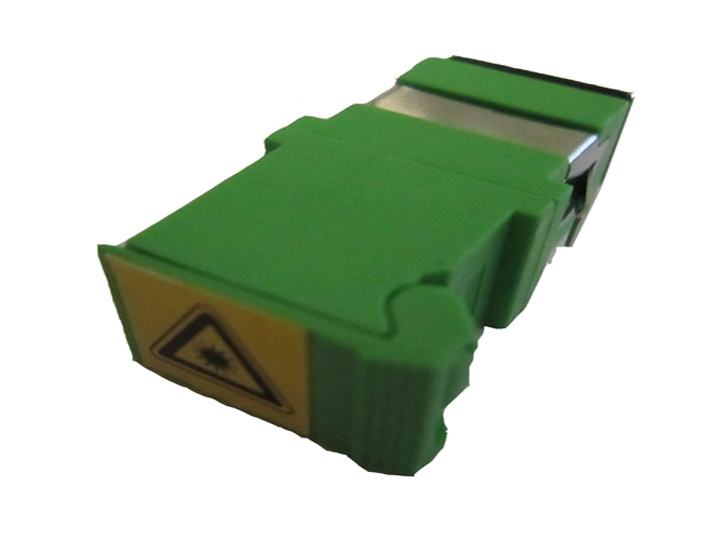

Optical Fiber Sc Adapter for Auto Shutter Comply with UL94 of V0

Optical Fiber Sc Adapter for Auto Shutter Comply with UL94 of V0
Price: US $ 0.3-0.7/Piece
Min Order: 1/Piece
Pay Type: T/T,Western Union
Prod Model: SC Adapter
Transmission Medium: Single-Mode
Structure: SC
Number Of Cores: Multi-Core
Ferrule Endface: Upc/APC
Connector Type: Sc/Upc Sc/APC

Product Description






Descriptions

Fiberlink SC Fiber optic Auto shutter Adapters are specially designed to suit FTTH applications. The auto shutter is designed to prevent ingress of dust and also to prevent accidental exposure to laser. Auto Shuttered adapter utilizes the conventional split ceramic sleeve method to align fibers and thus ensures the same precision and optical performance as the normal adapter. all
products are designed and controlled under IEC standard, meet the requirement of Telcordia GR-326 and TIA/EIA as well.


Applications
Telecommunication network
CATV system
Local Area Network
Active/Passive device
FTTH and FTTX


Competitive Advantages
Telcordia GR-326, IEC, TIA/EIA Standard compliant
100% Optical performance inspection and end-face geometric
Low Insertion Loss.
RoHS Compliance


Parts & Material
PartsMaterialRemarks
SleeveZirconia
HousingPBTFlammability UL94 V-0
Dust capABSFlammability UL94 V-0
ShutterABSFlammability UL94 V-0
Metal CoverStainless Steel


Optical Performance
ItemPremium GradeStandard Grade
Insertion Loss≤0.1dB≤0.2dB
Durability1000 times1000 times

Environmental and Mechanism
PropertiesTest conditionConformanceTest result
Vibration10-55Hz, 1.5mm, 60minIEC61300-2-1≤0.2dB
Mating Durability1000 Mating, clean every 25 matingIEC61300-2-2≤0.2dB
Impact1.5m, 8 dropsIEC61300-2-6≤0.2dB
Strength of Coupling Mechanism40N, 10Min, L=22-28cmIEC61300-2-12≤0.2dB
Temperature Cycling-40ºC to +75ºC, 40 cyclesIEC61300-2-22≤0.2dB
Temperature humidty cycling40ºC, 95%, 96HrIEC61300-2-21≤0.2dB
Operating Temperature-40ºC to +85ºC ≤0.2dB
Storage Temperature-40ºC to +85ºC ≤0.2dB
