Optical Fibre LC/PC Field Installable Connector
| Price: |
US $ 0.7-1.2/Piece |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
LC/PC Field Installable |
| Return Loss: |
>-45dB |
| Tensile Strength: |
>10 N |
| Optical Fiber Diameter: |
125um (G657A1&G657A2 ) |
| Tight Buffer Diameter: |
250um |
| Housing Color: |
Blue, Green, Beige or Customized |
| Housing Material: |
Plastic |
| Certification: |
RoHS/ISO9001/IEC/Tlc/SGS/Reach |
| Structure: |
LC |
| Number Of Cores: |
Single-Core |
| Ferrule Endface: |
PC(',UPC) |
| Transmission Medium: |
Singlemode, Multimode |
| Application: |
for 0.9mm Indoor Cable Field Termination |
| Connector Type: |
LC |
Product Description

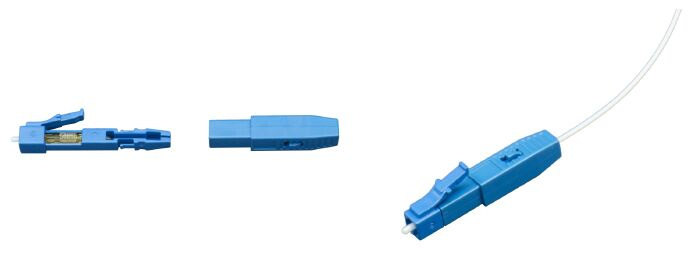

LC/PC Field Installable Connector
DescriptionField Installable Connector (FIC) is a perfect solution for field working and FTTH connection. It is widely used for where need to quick connection, providing a quickly assembling and stable performance. When engineers work in field for installation, maintenance, repair of optical fiber, or FTTH indoor terminate, they can use it easily because it has no epoxy, no polishing.FIC is designed inside ferrule with fiber stuff and pre-polishing in the factory. It provides a perfect ferrule endface quality. This has great help to protect user's equipment interface and reduce the connector loss.Application1. For 0.9mm indoor Cable field termination
2. For emergency fiber path repair
3. FTTH, LAN and other fiber optic system
4. LC type availableFeatures1. Patent fiber alignment technology
2. High performance, high reliability
3. No Polishing, no electricity needed
4. Quick installation, easy for operation
5. High one-time assembly success rateSpecification| Item | Technical Parameters |
| Applicable for | Indoor cable 0.9MM |
| Optical fiber diameter | 125μm ( 657A1 & 657A2 ) |
| Tight buffer diameter | 250μm |
| Fiber mode | Single mode |
| Operation time | < 100s |
| Return loss | >-45dB |
| Fastening strength of naked fiber | >4 N |
| Fastening strength of naked fiber holder | >8 N |
| Tensile strength | >10 N |
| Using temperature | -40~+75ºC |
| On-line tensile strength (20 N) | ºC IL ≤ 0.5dB ºC RL ≤ 5dB |
| Mechanical durability (500 times) | ºC IL ≤ 0.5dB ºC RL ≤ 5dB |
Drop-off test (drop-off height 4m, once per
direction, totally 3 times) | ºC IL ≤ 0.5dB ºC RL ≤ 5dB |
Operating since 1998Ark was established in 1998, during a time when optical communications was a fledgling industry in China. As an experienced manufacturer, we provide a wide range of products including SM/MM fiber-optic connectors, multiplexers, optical attenuators, MPO cassettes and optical distribution frames.
Providing OEM and Training Services
Our engineering team can design custom products in accordance with clients' requirements. These specialized products are available with bilingual (English and Chinese) installation manuals. OEM and training services can be provided upon request. We began as a school-run factory and now widely recognized as a pioneer in the field.
When the National Research Institute of Telecommunications completed the first trial fiber-optic connector in China, we became a designated manufacturer. Our double status as a learning institution and a production center provided the perfect accommodations for this important project. An experienced taskforce of technicians had worked round the clock to put the new technology into production. Months of dedication and countless trials allowed us to successfully implement the prototype technology into finished products. Extensive collaboration with research centers enabled us to yield the first-ever domestically produced fiber-optic connector. This achievement marked the beginning of a new era for the Chinese optical communications industry.
We have established a production base in Jiangxi for the focused production of fiber-optic connectors and adapters. In 2005, we built a production facility for jumpers and attenuators in Shenzhen. Its establishment was complimented with the addition of an independently operated sales center and R&D institute.
Meeting RoHS and SGS Standards
We have successfully passed the ISO 9001 certification because of our meticulousness in the whole production process. Advanced manufacturing techniques and premium raw materials ensure the outstanding quality of our competitively priced products. All of our products are compliant with RoHS and SGS standards.
Trusted by Well-known Companies
Our major clients include well-known companies such as Shenzhen Huawei Technologies, Wuhan Acceling Technologies, Shenzhen Sunsea Telecommunications and Luoyang Aviation Electrical Factory. We are the only supplier of SC optical connectors for the Ericsson (Europe). We are also the preferred supplier of the Telefonica (China branch).
Contact Us
We have redoubled our product development efforts to accommodate fluctuating market demands. Successive investments in 2012 and 2013 enabled our Shenzhen facility to produce new products such as CWMD and DWDM modules. We seek to cooperate with prospective partners in the creation of a brand new chapter in the optical communications industry. Call now.Our Service:We provide all our products with high quality, competitive price, short delivery lead time and excellent after-sales services.
