Optical Sensors Distance Photoelectric Sensor

Name: Optical Sensors Distance Photoelectric Sensor
Brand: all-electronics-online.com
SKU: 840515575
Availability: InStock
Rating: 4.9 (125 reviews)

Price:	US $ 1-10piece/pieces
Min Order:	1piece/pieces
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	E3Z series

Product Description

optical sensors distance photoelectric sensor

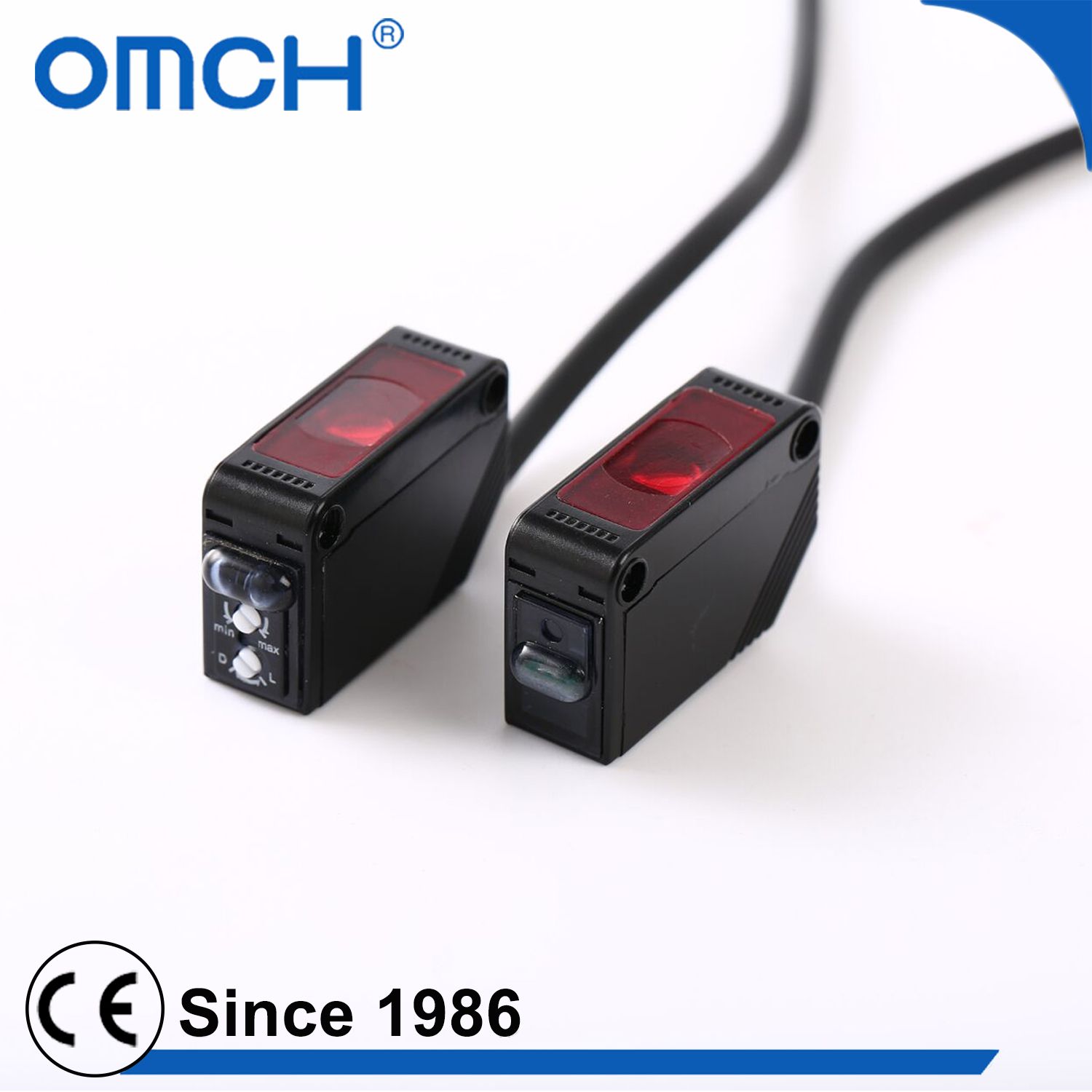

PRODUCT DISPLAY

PRODUCT DESCRIPTION

Feature

We sincerely welcome agents from all over the world

Power supply reversal connection protection; short-circuit protection, can directly connect with PLC

Used in common places witch medium environment resistance

Red LED indicates that it's available to detect the sensor operating state

IP67 protection structure (IEC specification)

Read the "Matters needing attention" of the Product Instruction before use

Type and Specification
We sincerely welcome agents from all over the world

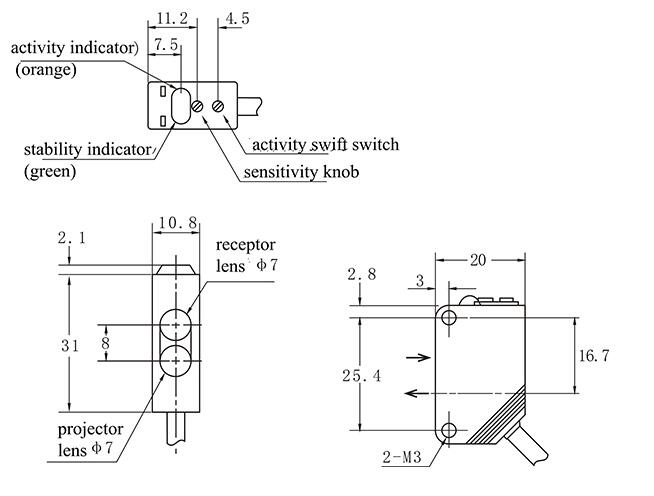

Dimension				302010.8
Detection method				Through Beam type	Diffuse Reflection type	Reflection type
T y p e	DC Type	N P N	NO	E3Z-T61	E3Z-D61	E3Z-R61
			NC
			NO+NC
		P N P	NO	E3Z-T81	E3Z-D81	E3Z-R81
			NC
			NO+NC
Detection range				15m+/-10%	5-10cm	4m+/-10%
Detection range regulation				Fixed	Sensitivy adjuster	Sensitivy adjuster
Detection target				Opaque object	Transpparent/Opaqueobject	Opaque object
Response frequency				1ms
Connection delay				1.5ms
Light Source				Infrared light 660nm
Supply voltage				DCtype:DC12-24V(6-36V)Impulse(p-p)10%below ACtype:AC110-220V(90-250V)50/60Hz
Consumption current				N.Ptype:20mAbelow,A type:1.7mAbelow.
Control output				N.Ptype:300mAbelow,A type:400mAbelow.J type: 2A below(contact service life:0.1 million times)
Loop protection				N.P.D type:reversal connection protection, surge Absorption, load short-circuit protection A type: surge absorption
Ambient temperaturehumidity				During operation,storage:individually-30~+65( No freeze,no drew),During operation,storage Individually35~95%RH
Insulation impedance				50 MΩ above(DC500 megameter) between charging and housing
Withstand voltage				AC1000V50/60Hz 1 min between charging and housing
Temperature influence				Temperature range-30~+65,at+23,+/-15% detection distance Temperature range-25~+60,at+23,+/-10% detection distance
Voltage influence				Inside+/-15%rated supply voltagerange,at rated supply voltage value
Protection sturcture				IP65
Material				plastic (ABS) Detection surface(lens)PMMA

FAQ
We sincerely welcome agents from all over the world

Q: What certification do you get?
A: We have CE, RoHS, etc.

Q: Do you provide guarantee for the goods?
A: Yes, and all goods are offered 1 year quality guarantee.

Q: Are OEM & ODM available?
A: Yes, we accept OEM and ODM.

Q: How to pay?
A: T/T and west union are acceptable.

Q: What is the delivery time?
A: It depends on the order quantity and the season you place the order. Generally, 5 to 10 working days after payment.

Q: What about the package?
A: Standard export package (paper carton) for shipment, or package as you need.
