Optik Fibre Self-Supporting Bow-Type Drop Cable

Name: Optik Fibre Self-Supporting Bow-Type Drop Cable
Brand: all-electronics-online.com
SKU: 802681675
Availability: InStock
Rating: 4.6 (107 reviews)

Price:	Negotiable/Meter
Min Order:	1000/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	Self-supporting
Jacket Color:	Black
Application:	Used in Access Network
Certification:	IEC,Tlc,Reach,SGS
Type:	Sm,mm
Sheath Material:	PVC,LSZH,Zrpo

Product Description

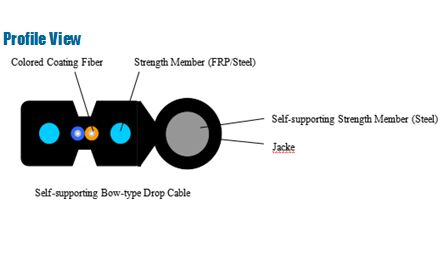

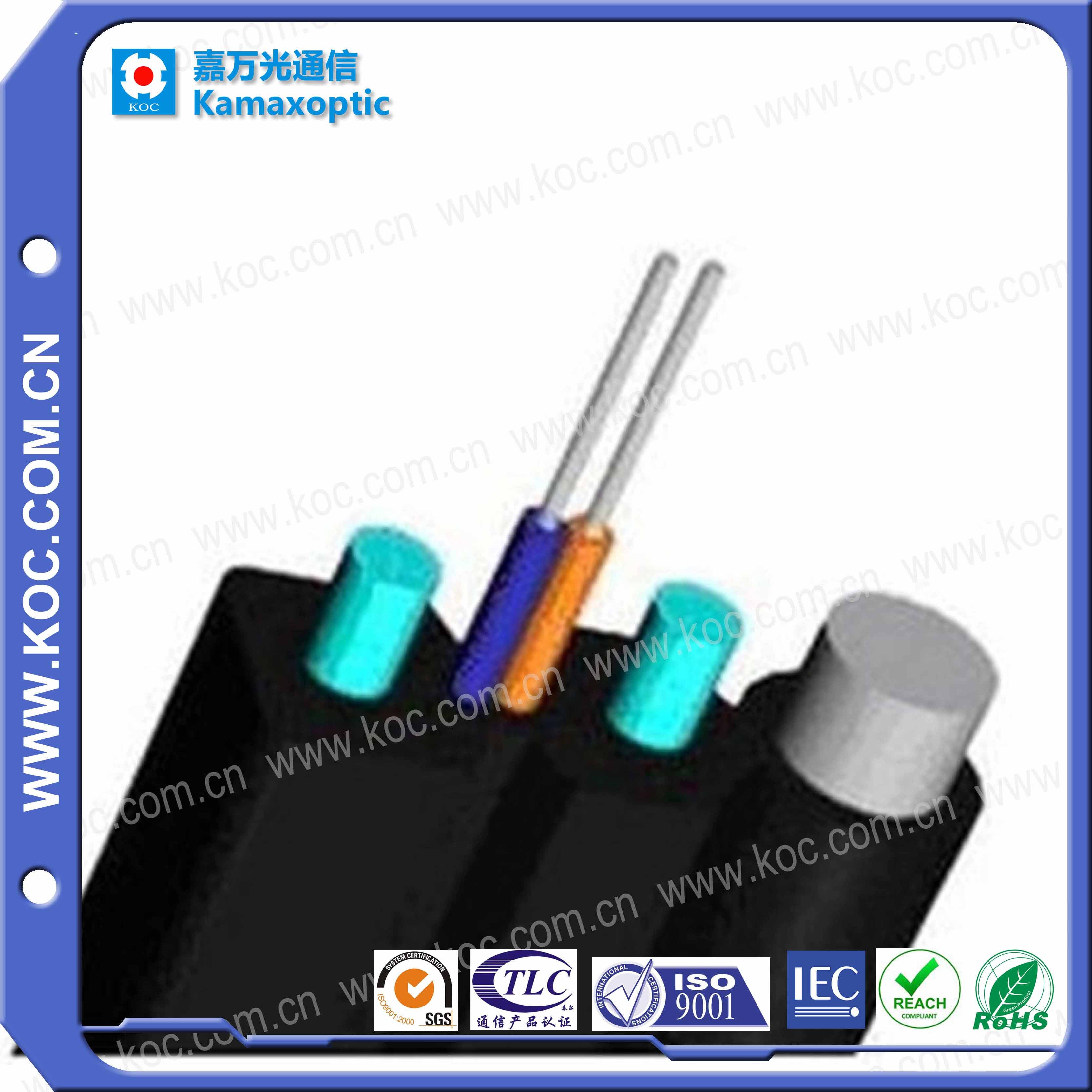

Self-supporting Bow-type Drop Cable

Features
Good mechanical and environmental characteristics;
Flame retardant characteristics meet the requirements of relevant standards;
The mechanical characteristics of jacket meet the requirements of relevant standards;
Soft, flexible, easy to lay and splice, and with big capacity data transmission;
Meet various requirements of market and clients.

Application
Used in access network or as access cable from outdoor to indoor in customer premises network;
Used in wireless base station (BS) horizontal and vertical cabling.

Specification

Cable Count	Cable Dimension (mm)	Cable Weight (kg/km)	Tensile (N)		Crush (N/100mm)		Min. Bend Radius (mm)		Range of Temperature (ºC)
			Long Term	Short Term	Long Term	Short Term	Dynamic	Static
1~2	5.2×2.0	18	300	600	1000	2200	60	30	-20~+60

Note: 1. All the values in the table, which are for reference only, are subject to change without notice;
            2. The cable core use the colored coating fiber of 250μm;
           3.H is height of the flat cable;
           4. The minimum bend radius (static) is 5H when G657 fiber is used.

Options
Fiber Type: G652, G655 or G657 single-mode fiber, A1a or A1b multi-mode fiber, or other types of fiber;
Jacket Material: Enviromental flame retardant polyvinylchloride (PVC), enviromental low smoke zero halogen flame retardant polyolefin (LSZH), enviromental halogen flame retardant polyolefin (ZRPO), or other contracted material;
Jacket Color: (Including color of fiber) meets the requirements of relevant standards, or other contracted color;
Cable Dimension: The nominal cable dimension, or other contracted dimension;
Delivery Length: 1km or 2km, or other contracted length;
Other Requirements: Other contracted special requests.

Shenzhen KOC Communication Co., Ltd. Is specialized in fiber optic communication product manufacture. Our products range from the basic components to end products, including passive and active categories as follows: Basic Components: Connector kits, Adapter kits, Attenuator kits.

Passive products: Connector, Adapter, Attenuator, Patch-cord, ODF and enclosure.

Active products: Media converter, Transmitting and receiving assemblies, such as laser diode assembly, PD and PIN/TIA assembly, sub-assemblies such as TOSA, ROSA, BOSA.

FTTH System: Gpon: OLT, ONU, PLC

Headquarter located in Shenzhen, China, we have branch companies, representatives and distributors in Europe, America, Middle East, South Asia. KOC products are well accepted and sold in these areas.

We provide all our products with high quality, competitive price, short delivery lead time and excellent after-sales services.
