Opzs Tubular Deep Cycle Battery 2V300ah (OPZS300-2)

Name: Opzs Tubular Deep Cycle Battery 2V300ah (OPZS300-2)
Brand: all-electronics-online.com
SKU: 744088785
Availability: InStock
Rating: 4.5 (93 reviews)

Price:	US $ 50-900/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	4/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	OPZS300-2
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Cell:	1
Color:	Semitransparent
Separator:	PE
Plate:	Tubular Plate
Sealing:	Glue Sealing
Battery Case:	ABS
Terminal Type:	Copper
Safety:	Explosion-Proof
The Charging Current Rate:	Less Than 0.3c
Accessory:	Cooper Bars
Type:	Lead-Acid Batteries
Rechargeable:	Chargeable
Discharge Rate:	Low Discharge Rate
Nominal Voltage:	2V
Usage:	Solar
Shape:	Rectangle

Product Description

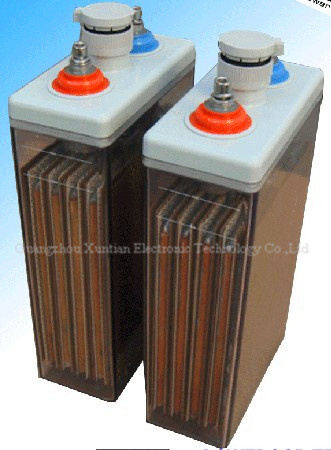

OPZS Series Tubular Battery

OPZS Tubular deep cycle battery 2v300ah
(OPZS300-2)

Specifications
The OPzS battery is a traditional tubular plate flooded battery which offers 20 years design life with a cycle life of 1800 cycles at 80% Deep Of Discharge. This range is most suited for all standby power applications that require the highest levels of reliability and security.

Characters
1. Use gel electrolyte, with nice performance on wide temperature range, suitable for harsh environments coperation. (-40º C~60º C)
2. Made by tubular positive plate materials, monthly self-discharge rate≤ 1.5%
3. Excellent recover ability of Cycling and deep discharge, more than 800 times cycle life at 100% deep discharge, improve the system reliability effectively.
4. Floaing design life time up to 20 years, in the coperation of normal float charging, capacity keeps stable, attenuation rate stays low.

Application
Wind power system, Solar power system, Emergency lighting alarm systems, UPS(Uninterruptible power sypply) Telecommunications, Telephone exchanges control equipment, EPS instrumentation, Bank ATM System, Medical equipment, Fire and security system and so on.

Capacity 77°F(25ºC)	100 hours rate(3.60A 1.85V)	360Ah
	10 hours rate(30.0A 1.80V)	300Ah
	5 hours rate(50.4A 1.80V)	252Ah
	3 hours rate(75.0A 1.75V)	225Ah
	1 hour rate159.0A 1.67V)	159Ah
Internal Resistance	Full charged battery 77°F(25ºC):0.00075Ω

Capacity affected by Temperature (10 hour rate)	104°F(40ºC)	102%
	77°F(25ºC)	100%
	32°F(0ºC)	85%
	5°F(-15ºC)	65%
Self-Discharge 68°F(20ºC)	Capacity after 3 month storage	90%
	Capacity after 6 month storage	80%
	Capacity after 12 month storage	60%
Max discharge current77°F(25ºC):1500A(5S)
Charge (Constant Voltage)	Float:2.23 to 2.27V/77°F/(25ºC)
	Cycle:2.38 to 2.42V/77°F/(25ºC)
	Max Current:30A
