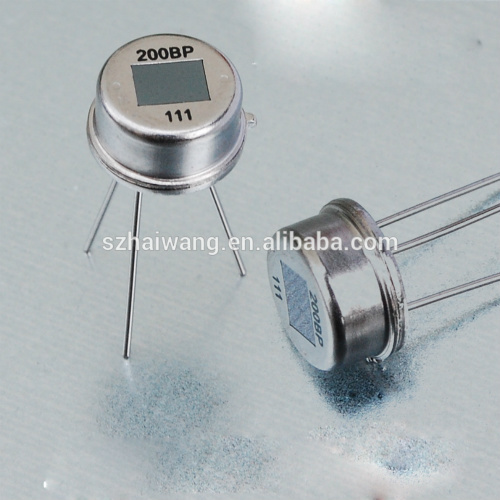

Orginal Nicera Human Body PIR Motion Sensor Re200b

Prod Model:	RE200B
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Place Of Origin:	Japan
Operating Voltage:	3-10V DC
Brand Name:	Nicera
Window Size:	3*4mm
Source Voltage:	0.3-1.5V

Product Description

Item Spec:
1. Operating Voltage: 3-10V DC
2. Source Voltage: 0.3-1.5V
3. Signal Output: MIN 2.5Vp-p
4. Noise Output: MAX mVp-p
5. Balance Output: MAX 15%


Product Description
The pyroelectric infrared sensor detects infrared radiation on the basis of the characteristics that the polarization of pyroelectric material changes with temperature. Dual compensated sensing elements are applied to suppress the interference resulting from temperature variation. As a result, the operating stability of the sensor is greatly improved Our products can be used in many applications.

Parameter:

IR Receiving Electrode	2*1mm, 2elements
Window Size	3*4mm
Spectral Response	5-14um
Transmittance	> 75%
Output Signal[Vp-p]	> 3300mV
Detectivity (D*)	1.4*108 cmHz1/2/W
Noise[Vp-p]:	70mV
Output Balance:	10%
Offset Voltage:	0.3-1.2V
Supply Voltage	3-15V

Operating Temp: -30-70Celsius degree
Storage Temp: -40-80Celsius degree

Applications:
1. Security systems
2. Burglar alarms
3. Visitor acknowledgement
4. Light switch control
5. Intellectualized toy

Feature:
1. High sensitivity
2. Long detecting distance
3. Wide angle
4. Strong stability
5. Wide application fields

Our Service:
1.OEM and ODM are welcome.
2.Small quantity order is welcome.
3.Sample lead time: 1-3 days
4. Your inquiry for our products will be replied in 10 hours.
