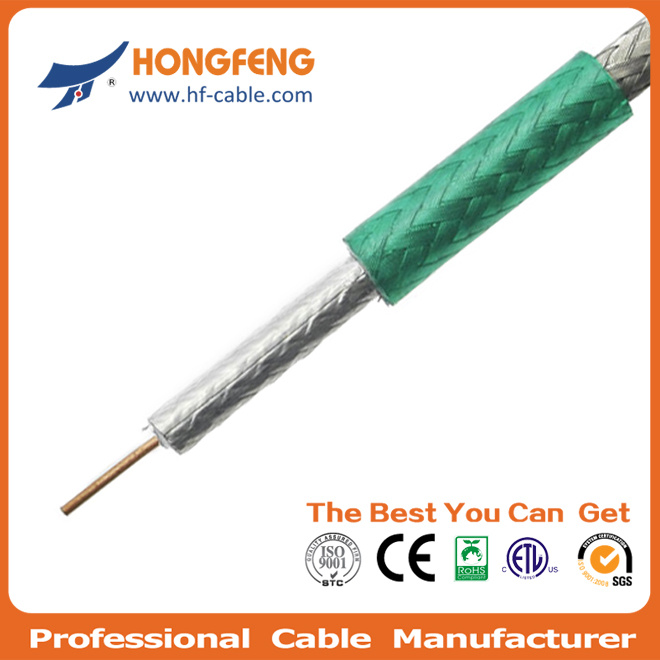

Original Factory OEM 4c-Fb Coaxial Cable

Name: Original Factory OEM 4c-Fb Coaxial Cable
Brand: all-electronics-online.com
SKU: 803823005
Availability: InStock
Rating: 4.6 (98 reviews)

Price:	US $ 80/Meter
Min Order:	10000/Meter
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	4C-FB cable
Application:	Coaxial Cable
Conductor Material:	Copper
Cover Material:	PVC
Certification:	ETL
Model:	Coaxial
Type:	Coaxial Cable

Product Description

Applications:

• For use in communication and signal control systems.

• Signal transmission in electronic applications and data communications is changing in a dramatic way. Cables now have to accommodate faster signal speeds over longer distance with less signal loss. Additionally, new shielding requirements to

meet FCC RF / EMI emission controls, tougher regulations requiring low toxicity materials in plenum installations and demands for high density wiring are factors which have been considered in creating many of our new coaxial and data cable products. The COPARTNER products in this section are designed to meet these needs for safe and reliable transmission.

^{4C-FB Construction}
^{Inner conductor}	^BC	^{0.81 + 0.01mm}
^Dielectric	^{Foam PE}	^{3.75 + PE}
^Shield	^{Bonded Al foil}	^{14 mm}
^Braid	^Al/BC	^60%-90%
^Jacket	^PVC	^{6.05 + 0.10mm}
^{Steel Messenger}	^Steel
^Jelly	^{Per customs' special requirement}
^{Characteristics}
Impedance:	75+/-3 Ohm
Capacitance:	54pF/m
Velocity of Propagation:	85% (min)
Return Loss:	20dB min (5-2300MHz)

Atte^nuation	^{[@68o F. (20o C.)]}
^{Frequency (MHz)}	^{Maximum (dB/100 ft.)}	^{Maximum (dB/100 m)}
⁵	^0.58	^2.2
⁵⁰	^1.5	^4.9
¹⁰⁰	^2.0	^6.5
²⁰⁰	^2.8	^9.2
⁴⁰⁰	^4.1	^13.6
⁷⁰⁰	^5.6	^18.4
⁹⁰⁰	^6.2	^20.3
¹⁰⁰⁰	^6.5	^21.4
¹⁴⁵⁰	^8.0	^26.2
¹⁸⁰⁰	^8.5	^27.9
²¹⁰⁰	^9.5	^31.1
²²⁵⁰	^10.0	^34.0
³⁰⁰⁰	^11.4	^37.5

Our Product Range

1) 75 Ohm Coaxial Cable:
RG59, RG6, RG7, RG11, etc.

2) 50 Ohm Coaxial Cable:
RG58, RG142, RG174, RG178, RG213, RG214, RG316, etc.

3) MIL-C-17 Military Standard Cable:
RG59 A/U, RG59 B/U, RG6 A/U, RG11 A/U, RG58 A/U, RG58 B/U, RG58 C/U, RG213, RG214, etc.

4) Trunk Distribution Cable:
P3.412 JCA/JCAM, P3.500 JCA/JCAM, P3.565JCA/JCAM, QR320 JCA/JCAM, QR540 JCA/JCAM.

5) RF Coaxial Cable:
1/2', 1/4', 1/8', 7/8', 1-1/4',1-5/8', 1-7/8', LMR195, LMR200, LMR300, LMR400, LMR500, LMR600, 3D-FB,4C-FB,5D-FB, 7D-FB, 8D-FB, 10D-FB, etc.

6) Network Cables & LAN Cable:
CAT3, UTP/FTP CAT5, UTP/FTP/SFTP CAT5e, UTP/FTP CAT6, UTP/FTP CAT6a, UTP/FTP CAT7, etc.

7) Composite Cable:
RG59+2C Siamese Cable, RG6+2C Siamese Cable, 2RG59+2RG6, 2RG6+2CAT5e, etc.

8) British Standard Coaxial Cable:
BT3002, CT100, CT125, CT165, URM57, URM67, URM70, etc.

9) Japanese Standard Coaxial Cable:
1.5C-2V, 2.5C-2V, 3C-2V, 3C-2VR, 4C-2V, 5C-2V, 7C-2V, 10C-2V, 3D-2V, 5D-2V, 8D-2V, 10D-2V, etc.

10) French Standard Coaxial Cable:
11VATC/PATC, 17VATC/PATC, 19VATC/PATC, 21VATC/PATC, 25VATC/PATC, KX6/A, KX8, etc.

11) Alarm Cable, Control Cable:
Unscreened PVC Jacketed Alarm Cable, Screened PVC Jacketed Alarm Cable.

12) Optic Fiber Cable
GYXTW, GYXTC8S, GYTC8A, GYTA, GYFTY, GYTA53, GYXTC8S, GYXTS, Indoor Fiber Cable, etc.

Mr. Leo

Hangzhou Hongfeng Cable Co., Ltd.

www.hf-cable.com

www.hf-cable.com.cn

Tel: +86-571-58615552

Fax: +86-571-63816227

Mb: +86-18268847560

Our company, hongfeng industry, a professional cable manufacturer, is located in hangzhou, a city which is not only famous for its fabulous scenery, and also known for the center of the manufacture industry. And also we get close to the Shanghai port and ningbo port. This makes our company an unique position offering and delivering the cable overseas. We are dediacated to providing high quality coaxial cable and LAN twisted pair cable.

We offer whole range of coaxial cable and LAN twisted pair cable. Coaxial cable includes RG6 series, RG58series, RG59series, RG7series, RG11series, QR series, 500 series. And network cable CAT7 series, CAT 6 series, CAT 5 series.

We provide consistent high quality products at competitive prices. We have an products controlling teams, which monitors the manufacturing process and checks all the products before shipment. Our professional customer's service are ready to provide you with all necessary consultations and solve any problems related to our products.
