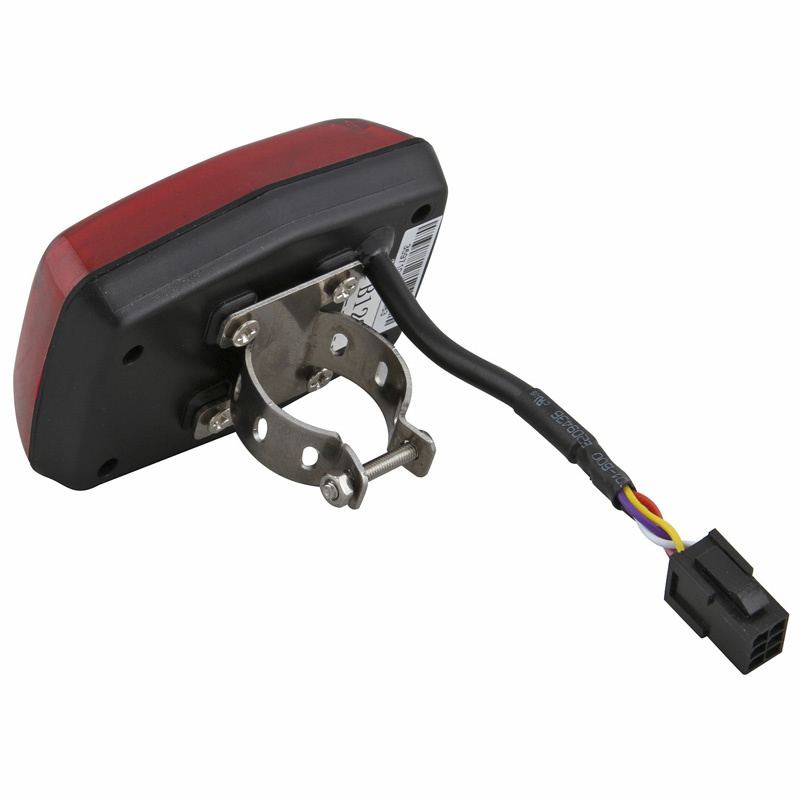

| Prod Model: |
waterproof motorcycle GPS304A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Hide Motorcyce Tracking: |
Internal Antennas Motorcycle Tracker |
| Weight: |
75g |
| Vehicle Tracking System: |
GSM/SMS GPRS |
| Tracking: |
by SMS or GPRS |
| Tracking Way: |
Google Map or Our Web Platform |
| Warranty Time: |
12 Months |
| OEM Or Not: |
Yes |
| Shipment: |
by Express or by Air |
| Delivery Time: |
2-3 Business Days |
| Anti Theft Motorcycle Tracking: |
Shut Engine Remotely |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Carrier Frequency: |
Dual-Frequency |
| Chip: |
SiRF |
| Operating Principle: |
GPS GPRS GSM Tracking |
| Port Number: |
20 |
| Model: |
GPS304 |
| Screen Size: |
No Screen |
| Brand: |
Coban |
| Certification: |
ISO9001 |
Product Description
Model: GPS304-A
Function
-Change Password
-Authorization
-Single Locating
-Auto track continuously
-Automatic update positions of vehicle turns
-GPS drift suppression
-Absolute street address by SMS
-Location based service (LBS)
-Monitor
-Data logging
-Data Load
-Forward the third parties' message
-Charges Inquiry
-Alarms
-Low battery alarm
-External Power off alarm
-GPS blind Spot alert
-SOS Alert
-Geo-fence
-Multi-area management
-Movement alarm
-Over speed alarm
-ACC working alarm
-Cut off the Oil and Power System
-Function of Remote Controller (Option, for model B ONLY)
-Arm
-Silent Mode
-DISARM
-Alarms under Arm State
-ACC alarm
-Shock Sensor alarm
-Alarm without GSM network service
-Check the Vehicle State
-Reset Hardware
-Sleep Mode
-Sleep by time
-Sleep by shock sensor
-No sleep mode
-Check IMEI
-Set up Terminal (local) Time
-TCP / UDP Switch
-Configure parameters by USB
-GPRS setting
-Setting up APN
-GPRS User ID and password Setup
-IP and port setup
-Less GPRS traffic
-Modes Switch between "SMS" and "GPRS"
-Set up monitor center number
| Content | Specs |
| Dim. | 7.5×5.0×2.4cm |
| Weight | 75g |
| Network | GSM/GPRS |
| Band | 850/900/1800/1900Mhz |
| GPS chip | SIRF3 chip |
| GPS sensitivity | -159dBm |
| GPS accuracy | 5m |
| Time To First Fix | Cold status 45s
Warm status 35s
Hot status 1s |
| Car charger | 12V~24V |
| battery | Chargeable 3.7V 1000mAh Li-ion battery |
| Storage Temp. | -40°C to +85°C |
| Operation Temp. | -20°C to +70°C |
| Humidity | 5%--95% non-condensing |
Pakage content:
GPS unit
6PIN harness
Relay
Inductive key
Metal frame
Screws(4 piece)
Screwer
CD
Manual
Giftbox
Optional
Small alarm siren
FIVE tracking solutions:
1. SMS tracking by calling with latitude and longitude, speed, battery status, Google map link
2. Get absolute street address by SMS
3. Free PC based tracking application (send you in CD package)
4. Optional web server
5. Free mobile tracking app for android/IOS phones
