| Prod Model: |
HLG-185H |
| Size: |
228*68*38.8mm |
| Usage: |
LED Strip |
| Output Type: |
Single |
| Driving Method: |
LED Constant Current |
| Circuit Structure: |
PWM Controlled |
| Brand: |
Meanwell |
Product Description

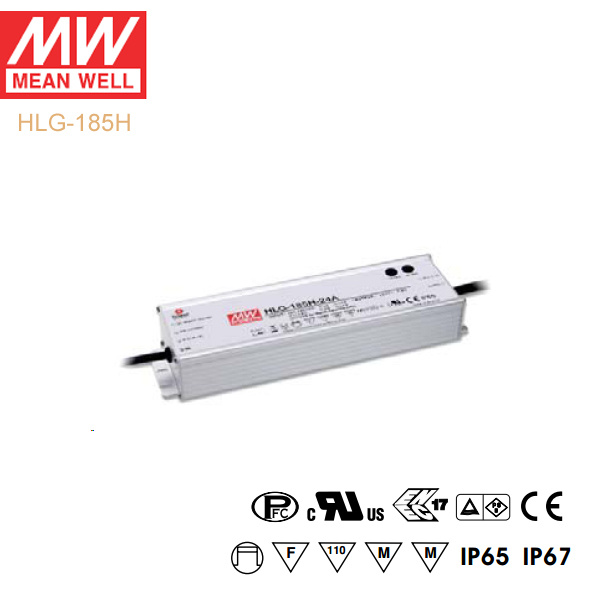

OriginaOriginal Meanwell HLG-185H Series Single Output Waterproof IP67 LED Driver Features:
1. Universal AC input / Full range (up to 305VAC)
2. Built-in active PFC function
3. Protections: Short circuit / Over current / Over voltage / Over temperature
4. Cooling by free air convection
5. OCP point adjustable through output cable or internal potentiometer
6. IP67 / IP65 design for indoor or outdoor installations
7. Class 2 power unit
8. Three in one dimming function (1~10Vdc or PWM signal or resistance)
9. Suitable for LED lighting and moving sign applications
10. Compliance to worldwide safety regulations for lighting
11. Suitable for dry / damp / wet location
12. 7 years warranty (Note.10)
Original Meanwell HLG-185H Series Single Output Waterproof IP67 LED Driver Specifications:
| MODEL | HLG-185H-12 | HLG-185H-15 | HLG-185H-20 | HLG-185H-24 | HLG-185H-30 | HLG-185H-36 | | HLG-185H-42 | | HLG-185H-48 | HLG-185H-54 |
| OUTPUT | DC VOLTAGE | 12V | 15V | 20V | 24V | 30V | 36V | 42V | 48V | 54V |
| CONSTANT CURRENT REGION Note.4 | 6 ~12V | 7.5 ~ 15V | 10 ~ 20V | 12 ~ 24V | 15 ~ 30V | 18 ~ 36V | 21 ~ 42V | 24 ~ 48V | 27 ~ 54V |
| RATED CURRENT | 13A | 11.5A | 9.3A | 7.8A | 6.2A | 5.2A | 4.4A | 3.9A | 3.45A |
| RATED POWER | 156W | 172.5W | 186W | 187.2W | 186W | 187.2W | 184.8W | 187.2W | 186.3W |
| RIPPLE & NOISE (max.) Note.2 | 150mVp-p | 150mVp-p | 150mVp-p | 150mVp-p | 200mVp-p | 200mVp-p | 200mVp-p | 200mVp-p | 200mVp-p |
| VOLTAGE ADJ. RANGE Note.6 | 10.8 ~ 13.5V | 13.5 ~ 17V | 17 ~ 22V | 22 ~ 27V | 27 ~ 33V | 33 ~ 40V | 38 ~ 46V | 43 ~ 53V | 49 ~ 58V |
| CURRENT ADJ. RANGE | Can be adjusted by internal potentiometer A type only |
| 6.5 ~ 13A | 5.75 ~ 11.5A | 4.65 ~ 9.3A | 3.9 ~ 7.8A | 3.1 ~ 6.2A | 2.6 ~ 5.2A | 2.2 ~ 4.4A | 1.95 ~ 3.9A | 1.72 ~ 3.45A |
| VOLTAGE TOLERANCE Note.3 | ± 2.5% | ± 2.0% | ± 1.0% | ± 1.0% | ± 1.0% | ± 1.0% | ± 1.0% | ± 1.0% | ± 1.0% |
| LINE REGULATION | ± 0.5% | ± 0.5% | ± 0.5% | ± 0.5% | ± 0.5% | ± 0.5% | ± 0.5% | ± 0.5% | ± 0.5% |
| LOAD REGULATION | ± 2.0% | ± 1.5% | ± 1.0% | ± 0.5% | ± 0.5% | ± 0.5% | ± 0.5% | ± 0.5% | ± 0.5% |
| SETUP, RISE TIME Note.8 | 1000ms,50ms/115VAC 500ms,50ms/230VAC at full load ; B type 1000ms,200ms/115VAC 500ms,200ms/230VAC at 95% load |
| HOLD UP TIME (Typ.) | 16ms at full load 230VAC / 115VAC |
| INPUT | VOLTAGE RANGE Note.5 | 90 ~ 305VAC 127 ~ 431VDC |
| FREQUENCY RANGE | 47 ~ 63Hz |
| POWER FACTOR (Typ.) | PF>0.98/115VAC, PF>0.95/230VAC, PF>0.92/277VAC at full load (Please refer to "Power Factor Characteristic" curve) |
| TOTAL HARMONIC DISTORTION | THD< 20% when output loading>= 50% at 115VAC/230VAC input and output loading>= 75% at 277VAC input |
| EFFICIENCY (Typ.) | 91.5% | 92% | 93% | 93.5% | 93.5% | 93.5% | 94% | 94% | 94% |
| AC CURRENT | 12V | 1.8A / 115VAC 0.8A / 230VAC 0.7A / 277VAC |
| 15V ~ 54V | 2.1A / 115VAC 0.9A / 230VAC 0.8A / 277VAC |
| INRUSH CURRENT (Typ.) | COLD START 65A(twidth=445μs measured at 50% Ipeak) at 230VAC |
| MAX. No. of PSUs on 16A | 4 units (circuit breaker of type B) / 7 units (circuit breaker of type C) at 230VAC |
| LEAKAGE CURRENT | <0.75mA / 277VAC |
| PROTECTION | OVER CURRENT | 95 ~ 108% |
| Protection type : Constant current limiting, recovers automatically after fault condition is removed |
| SHORT CIRCUIT | Constant current limiting, recovers automatically after fault condition is removed |
| OVER VOLTAGE | 14 ~ 17V | 18 ~ 21V | 23 ~ 27V | 28 ~ 34V | 34 ~ 38V | 41 ~ 46V | 47 ~ 53V | 54 ~ 63V | 59 ~ 65V |
| Protection type : Shut down o/p voltage with auto-recovery or re-power on to recovery |
| OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down |
| ENVIRONMENT | WORKING TEMP. | -40 ~ +70ºC (Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing |
| STORAGE TEMP., HUMIDITY | -40 ~ +80ºC, 10 ~ 95% RH |
| TEMP. COEFFICIENT | ± 0.03%/ºC (0 ~ 50ºC ) |
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes |
SAFETY &
EMC | SAFETY STANDARDS Note.7 | UL8750(type "HL "), CSA C22.2 No. 250.0-08, EN61347-1, EN61347-2-13 independent IP65 or IP67, J61347-1, J61347-2-13
approved ; design refer to UL60950-1, TUV EN60950-1 |
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25ºC/ 70% RH |
| EMC EMISSION | Compliance to EN55015, EN55022 (CISPR22) Class B, EN61000-3-2 Class C (>=50% load) ; EN61000-3-3 |
| EMC IMMUNITY | Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, EN55024, light industry level (surge 4KV), criteria A |
| OTHERS | MTBF | 192.2K hrs min. MIL-HDBK-217F (25ºC) |
| DIMENSION | 228*68*38.8mm (L*W*H) |
| PACKING | 1.15Kg; 12pcs/14.8Kg/0.8CUFT |
| NOTE | 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25ºC of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Please refer to "DRIVING METHODS OF LED MODULE".
5. Derating may be needed under low input voltages. Please check the static characteristics for more details.
6. A type only.
7. Safety and EMC design refer to EN60598-1, CNS15233, GB7000.1, FCC part18.
8. Length of set up time is measured at cold first start. Turning ON/OFF the power supply may lead to increase of the set up time.
9. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the
complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again.
10. Refer to warranty statement.
11. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently
connected to the mains. |
