| Prod Model: |
VT200 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Black |
| Is Customized: |
Yes |
| Dimension: |
90*53*27mm |
| Memory: |
2MB |
| Weight: |
92g |
| Input Voltage: |
9 ~ 36 VDC |
| Backup Battery: |
650 mAh |
| Customizable: |
Yes |
| Free GPS Tracking Platform: |
Yes |
| Antitheft: |
Yes |
Product Description

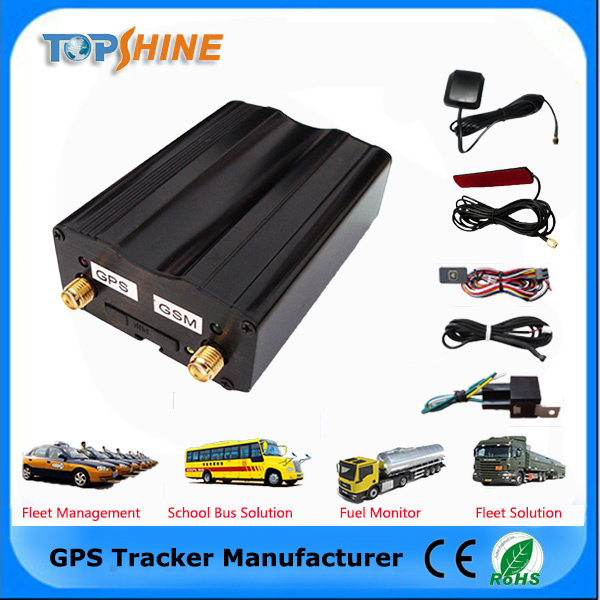

Original Manufacturer Mini GPS Tracking For Fleet Management VT200
General Description:
VT200 is a GPS/GSM/GPRS tracking device which is specially developed and designed
For vehicle real- time tracking and security. With superior GPS and GPRS modules,
VT200 has good sensitivity and stable performance. Especially,
VT200 is well designed to work with our web-based tracking system,
Which is suitable for a company to establish a tracking server to provide real-
Time tracking solutions to their customers or manage their fleet.
Functions & Features
1. Harsh braking and harsh acceleration alarm
2. Check the vehicle's location by SMS or GPRS
3. Set automatic tracking by distance or time interval
4. Cut off engine by SMS gradually for safety
5. Monitor the voice remotely by phone
6. Arm/disarm system by phone call or SMS
7. ACC on alarm, Door open alarm, Movement alarm in Arm status, can be used as an alarm
8. Geo-Fence Alert. If the car oversteps the boundary, it will send out alert
9. Over-speed Alert
10. SOS button, call for help (optional)
11. Mileage report
12. User can check the vehicle's real address name (city, street, etc) by SMS or Website (optional, need platform's support)
13. Small size with backup battery. Anti-tamper design, once power supply is cut off illegally, it will send out alert.
14. Location to SMS with Google map's link
15.2 inputs, 2 outputs and 1 analog input
16. Remote monitor fuel consumption (optional)
17. Remote monitor temperature (optional)
Application
Suit for any vehicle; Upgrade the ordinary car alarm to GPS alarm system; Track the vehicle online
Complete Set:
Standard Package:
Main unit
GSM antenna
GPS antenna
8-pin Wire harness
Relay
Microphone
Optional Accessories
Special USB cable
Active RFID kit
Passive RFID kit
| Technical Specificatioins: |
| Main unit size: | 7.5*5.4*2.5 (CM) |
| Weight of the main unit: | 125g |
| Working temperature: | -20 ~ +75 Celsius degree |
| Humidity: | upto 75% non-condensing |
| GSM frequencies: | Quad-band: 850MHz/900MHz/1800MHz/1900MHz |
| GPS chip: | Latest SiRF-Star III chipset |
| Working voltage: | +6~24 VDC |
| Power Consumption: | Working current: 20~1000mA;
Static current: 20~30mA;
Peak current of sending GSM signal: 1000~1200mA;
Peak current of receiving GSM signal: 600~800mA; |
| Inside Backup battery: | Rechargeable 3.7V 650mAh Li-ion battery |
| Packing Measures: | |
| Neutral | Dimension (mm) | Weight (KG) | Capacity |
| Box | 165x155x50 | 0.45 | 1 set |
| Carton | 470x340x310 | 15 | 30 sets |
Guangzhou Topshine Electronic Technology Co., Ltd. is a China leader manufacturer of superior Global Positioning System (GPS) tracking solutions and innovative integrated wireless communication equipments.
Since 1999, Topshine designs, develops, and manufactures high quality GPS tracking products, including location based and personal tracking systems for the vehicle, insurance, logistics and marine markets etc.
With experienced R&D team, excellent sales team and user-friendly software platform, we can promptly provide customized products, solutions and technical support and services, which helps us build a high reputation in the industry and among our customers all over the world. 90% of our products are for export. Our duty is to deliver the right product at the best price to meet your requirements. We try to exceed the expectations of every client by offering outstanding products backed up with effective and professional customer services and support.
TOPSHINE provides a proprietary system to help clients manage their fleet and asset.
Our proprietary software, Platform GPRS01, allows our clients who rely on a fleet of
Vehicles to transport their goods or clients with valuable moveable assets, to monitor
Their assets thus minimizing the risks associated with their investments, increasing
Efficiency and productivity, and minimizing logistics and manpower costs. Real-time
Information can help with effective decision making, thus improving your company's
Performance and reducing overall costs.
We currently serve over 100 major customers and our clients come from various
Industries with unique demands or operational requirements. We can customise our
System to cater to our client's needs. In our ever-growing network of connected
Devices, our fleet can be monitored from anywhere with our mobile applications. Our
Services cover Hong Kong, China and cross border fleets.
